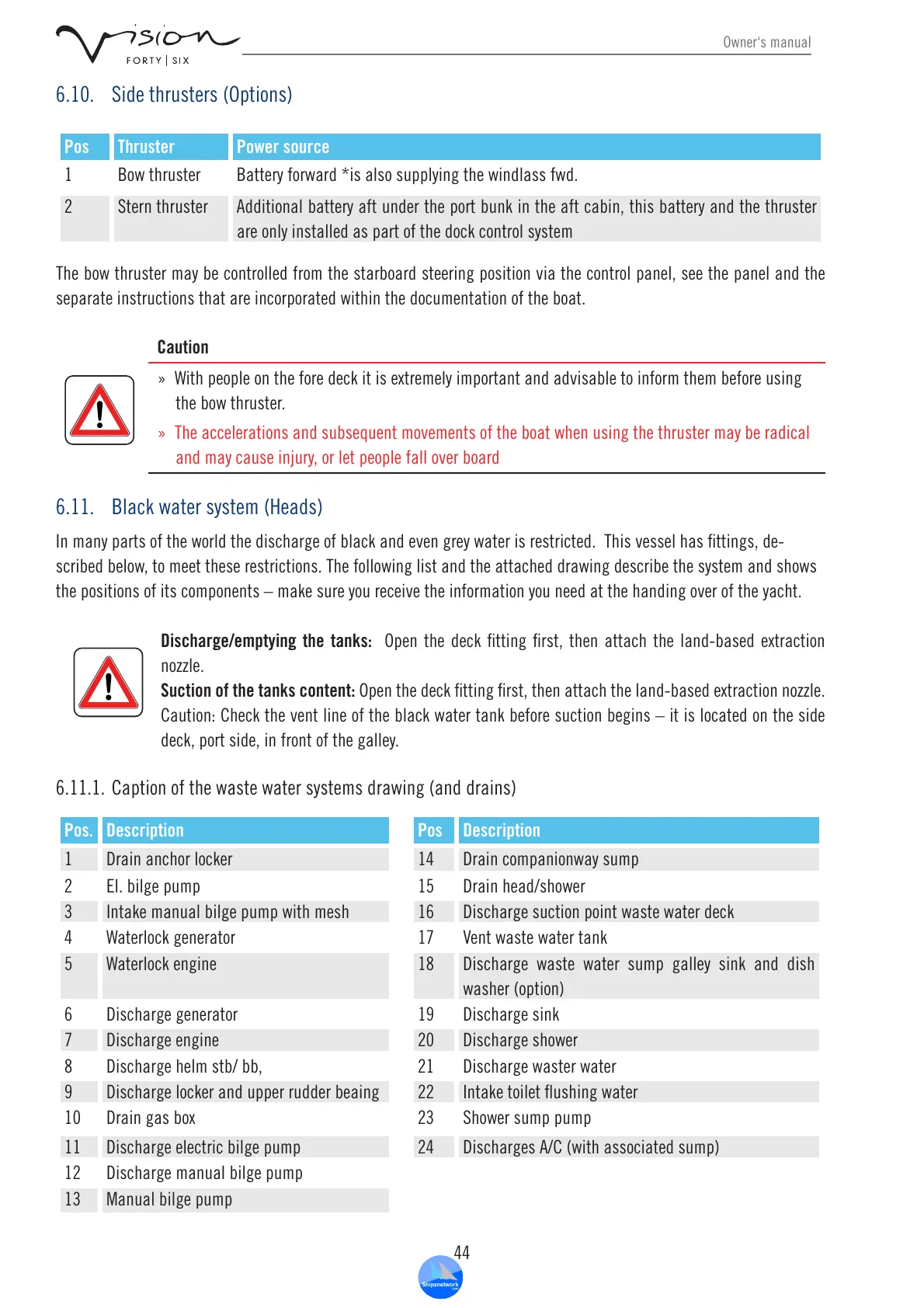

6.10. Sidethrusters(Options)
Pos Thruster Power source
1 Bow thruster Batteryforward*isalsosupplyingthewindlassfwd.
2 Stern thruster Additionalbatteryaftundertheportbunkintheaftcabin,thisbatteryandthethruster
are only installed as part of the dock control system
Thebowthrustermaybecontrolledfromthestarboardsteeringpositionviathecontrolpanel,seethepanelandthe
separate instructions that are incorporated within the documentation of the boat.
Caution
» With people on the fore deck it is extremely important and advisable to inform them before using
the bow thruster.
» The accelerations and subsequent movements of the boat when using the thruster may be radical
andmaycauseinjury,orletpeoplefalloverboard
6.11. Blackwatersystem(Heads)
Inmanypartsoftheworldthedischargeofblackandevengreywaterisrestricted.Thisvesselhasttings,de-
scribedbelow,tomeettheserestrictions.Thefollowinglistandtheattacheddrawingdescribethesystemandshows
thepositionsofitscomponents–makesureyoureceivetheinformationyouneedatthehandingoveroftheyacht.
Discharge/emptying thetanks:Openthe deck tting rst, thenattachtheland-based extraction
nozzle.
Suctionofthetankscontent:Openthedeckttingrst,thenattachtheland-basedextractionnozzle.
Caution:Checktheventlineoftheblackwatertankbeforesuctionbegins–itislocatedontheside
deck,portside,infrontofthegalley.
6.11.1. Captionofthewastewatersystemsdrawing(anddrains)
Pos. Description Pos Description
1 Drain anchor locker 14 Drain companionway sump
2 El. bilge pump 15 Drainhead/shower
3 Intake manual bilge pump with mesh 16 Discharge suction point waste water deck
4 Waterlock generator 17 Ventwastewatertank
5 Waterlock engine 18 Discharge waste water sump galley sink and dish
washer(option)
6 Discharge generator 19 Discharge sink
7 Discharge engine 20 Discharge shower
8 Dischargehelmstb/bb, 21 Discharge waster water
9 Discharge locker and upper rudder beaing 22 Intaketoiletushingwater
10 Drain gas box 23 Shower sump pump
11 Discharge electric bilge pump 24 DischargesA/C(withassociatedsump)
12 Discharge manual bilge pump
13 Manual bilge pump
