Bavaria Vision 46 - Fresh Water System

Owner‘s manual
50

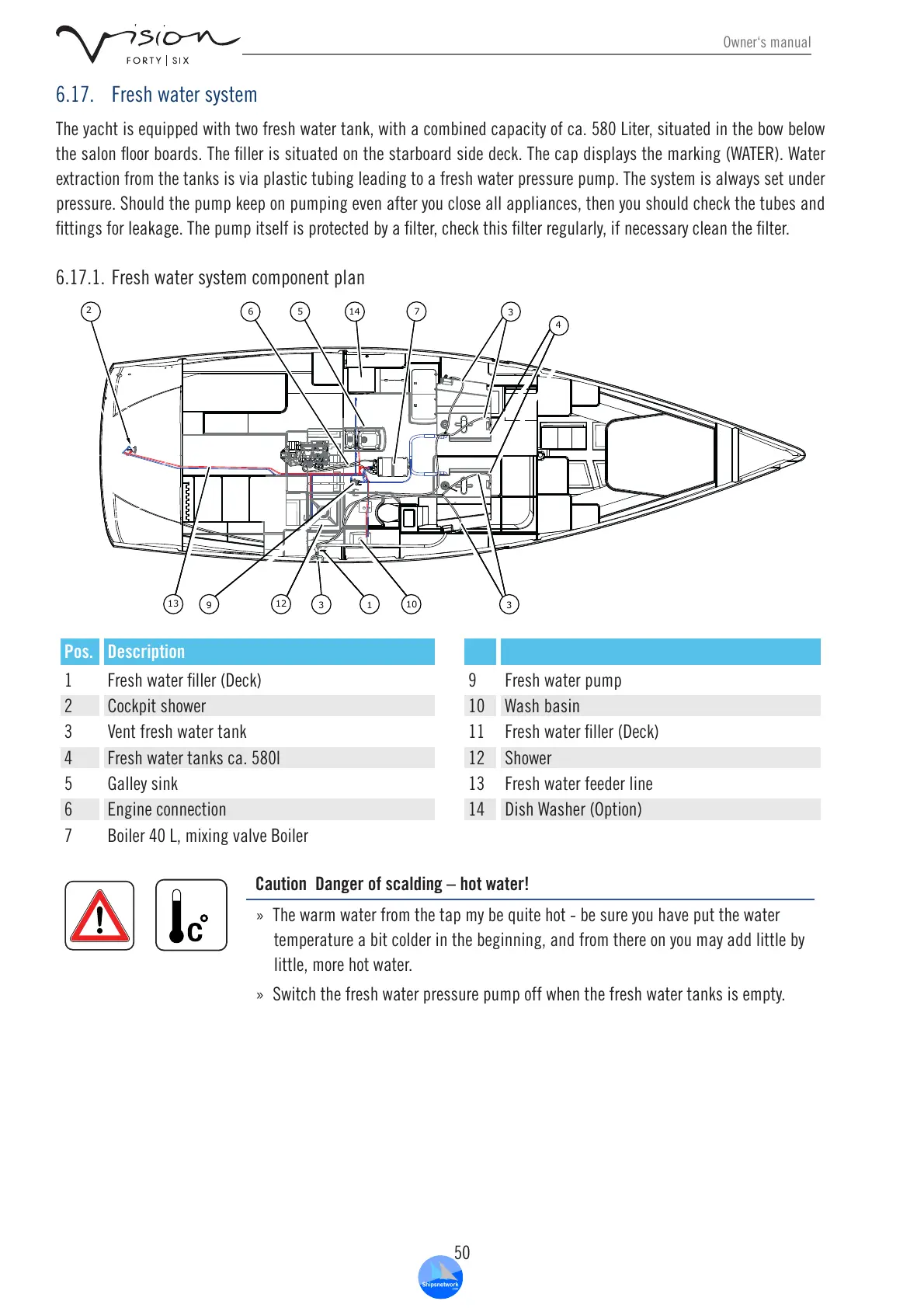

6.17. Fresh water system
Theyachtisequippedwithtwofreshwatertank,withacombinedcapacityofca.580Liter,situatedinthebowbelow
thesalonoorboards.Thellerissituatedonthestarboardsidedeck.Thecapdisplaysthemarking(WATER).Water
extraction from the tanks is via plastic tubing leading to a fresh water pressure pump. The system is always set under
pressure.Shouldthepumpkeeponpumpingevenafteryoucloseallappliances,thenyoushouldcheckthetubesand
ttingsforleakage.Thepumpitselfisprotectedbyalter,checkthislterregularly,ifnecessarycleanthelter.
6.17.1. Fresh water system component plan
1
2
3
10
3
9
1213
4
3
7
56 14
Pos. Description
1 Freshwaterller(Deck) 9 Fresh water pump
2 Cockpit shower 10 Wash basin
3 Ventfreshwatertank 11 Freshwaterller(Deck)
4 Freshwatertanksca.580l 12 Shower
5 Galleysink 13 Fresh water feeder line
6 Engine connection 14 DishWasher(Option)
7 Boiler40L,mixingvalveBoiler
CautionDangerofscalding–hotwater!
» The warm water from the tap my be quite hot - be sure you have put the water
temperatureabitcolderinthebeginning,andfromthereonyoumayaddlittleby
little,morehotwater.
» Switch the fresh water pressure pump off when the fresh water tanks is empty.
