Bavaria Vision 46 - 230;110 Volt Consumers

Systems(someareoptionalonly)
35

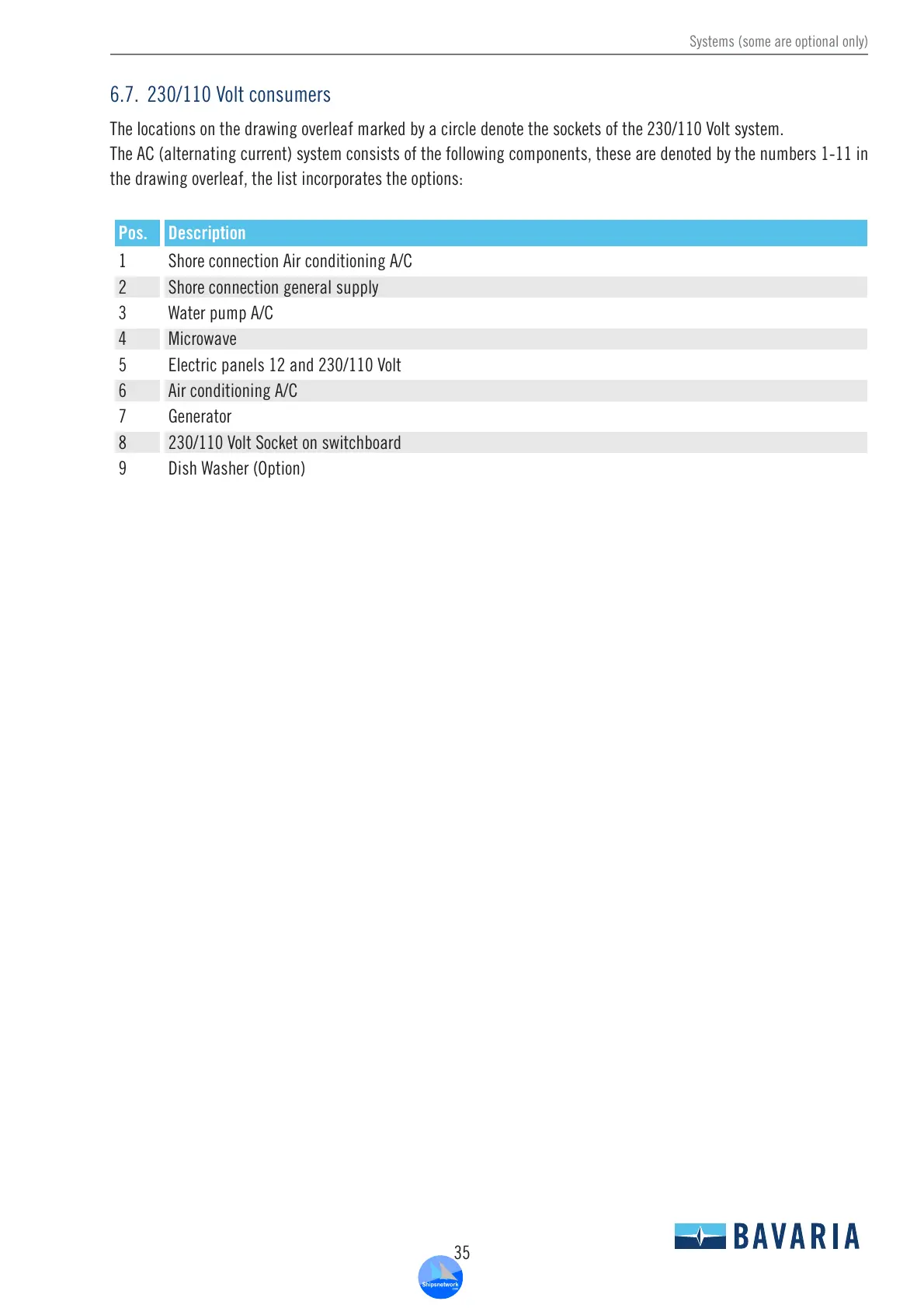

6.7. 230/110Voltconsumers
Thelocationsonthedrawingoverleafmarkedbyacircledenotethesocketsofthe230/110Voltsystem.
TheAC(alternatingcurrent)systemconsistsofthefollowingcomponents,thesearedenotedbythenumbers1-11in
thedrawingoverleaf,thelistincorporatestheoptions:
Pos. Description
1 ShoreconnectionAirconditioningA/C
2 Shore connection general supply
3 WaterpumpA/C
4 Microwave
5 Electricpanels12and230/110Volt
6 AirconditioningA/C
7 Generator
8 230/110VoltSocketonswitchboard
9 DishWasher(Option)
