Bavaria Vision 46 - Page 34

Owner‘s manual
34

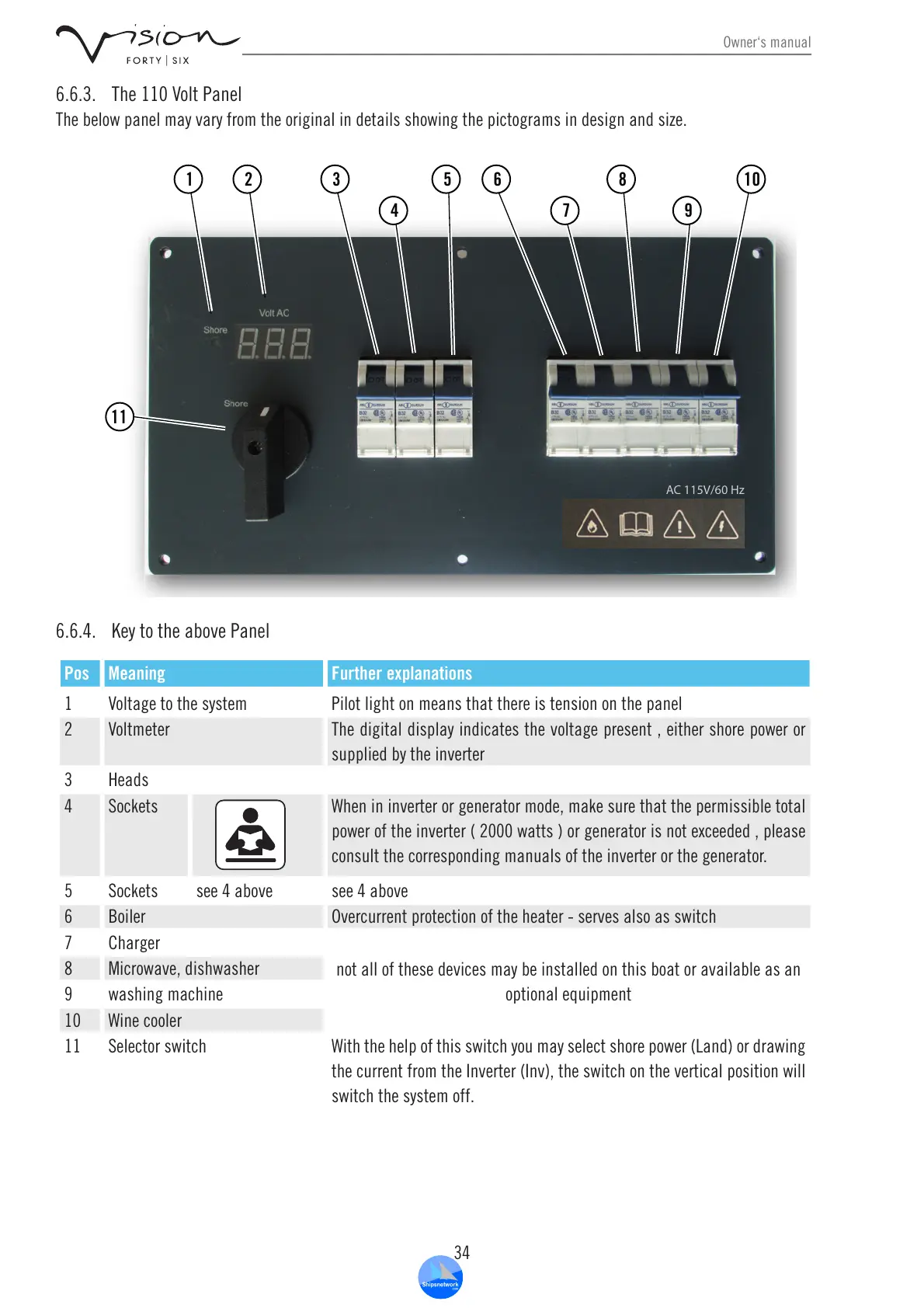

6.6.3. The110VoltPanel
The below panel may vary from the original in details showing the pictograms in design and size.
2
11
4
5 6 8 101 3
7 9
AC 115V/60 Hz
6.6.4. Key to the above Panel
Pos Meaning Further explanations
1 Voltagetothesystem Pilot light on means that there is tension on the panel
2 Voltmeter Thedigitaldisplayindicatesthevoltagepresent,eithershorepoweror
supplied by the inverter
3 Heads
4 Sockets
Whenininverterorgeneratormode,makesurethatthepermissibletotal
poweroftheinverter(2000watts)orgeneratorisnotexceeded,please
consult the corresponding manuals of the inverter or the generator.
5 Sockets see 4 above see 4 above
6 Boiler Overcurrentprotectionoftheheater-servesalsoasswitch
7 Charger
not all of these devices may be installed on this boat or available as an
optional equipment
8 Microwave,dishwasher
9 washing machine
10 Wine cooler
11 Selector switch Withthehelpofthisswitchyoumayselectshorepower(Land)ordrawing
thecurrentfromtheInverter(Inv),theswitchontheverticalpositionwill
switch the system off.
