Systems(someareoptionalonly)
33

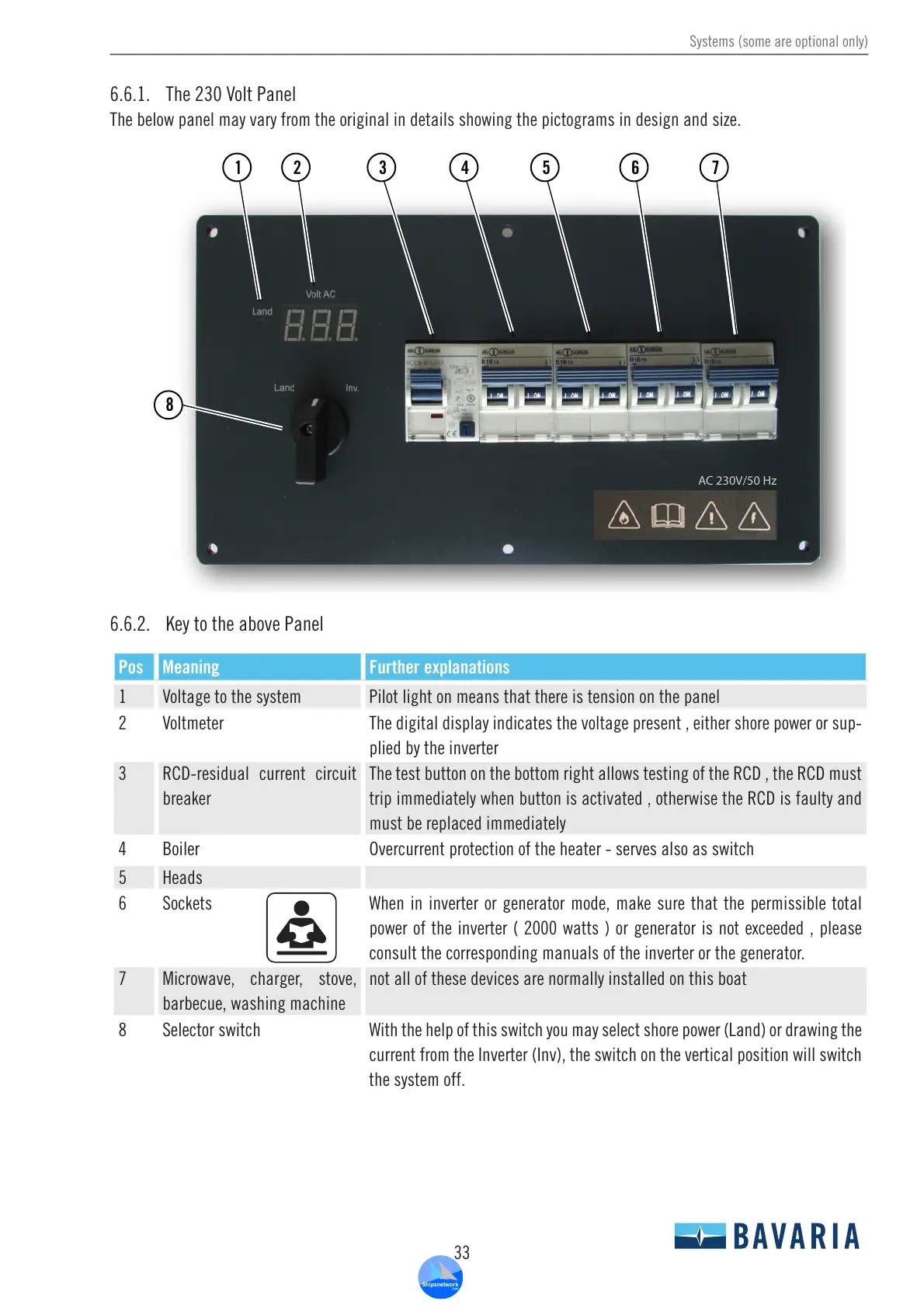

6.6.1. The230VoltPanel
The below panel may vary from the original in details showing the pictograms in design and size.
2
8
3 4 5 6 71
AC 230V/50 Hz
6.6.2. Key to the above Panel
Pos Meaning Further explanations
1 Voltagetothesystem Pilot light on means that there is tension on the panel
2 Voltmeter Thedigitaldisplayindicatesthevoltagepresent,eithershorepowerorsup-
plied by the inverter
3 RCD-residual current circuit
breaker
ThetestbuttononthebottomrightallowstestingoftheRCD,theRCDmust
tripimmediatelywhenbuttonisactivated,otherwisetheRCDisfaultyand
must be replaced immediately
4 Boiler Overcurrentprotectionoftheheater-servesalsoasswitch
5 Heads
6 Sockets
Whenininverterorgeneratormode,make surethatthe permissibletotal
poweroftheinverter(2000watts)orgeneratorisnotexceeded,please
consult the corresponding manuals of the inverter or the generator.
7 Microwave, charger, stove,
barbecue,washingmachine
not all of these devices are normally installed on this boat
8 Selector switch Withthehelpofthisswitchyoumayselectshorepower(Land)ordrawingthe
currentfromtheInverter(Inv),theswitchontheverticalpositionwillswitch
the system off.
