Bavaria Vision 46 - Electrical System on Board; DC System Details; Installed Batteries

Systems(someareoptionalonly)
25

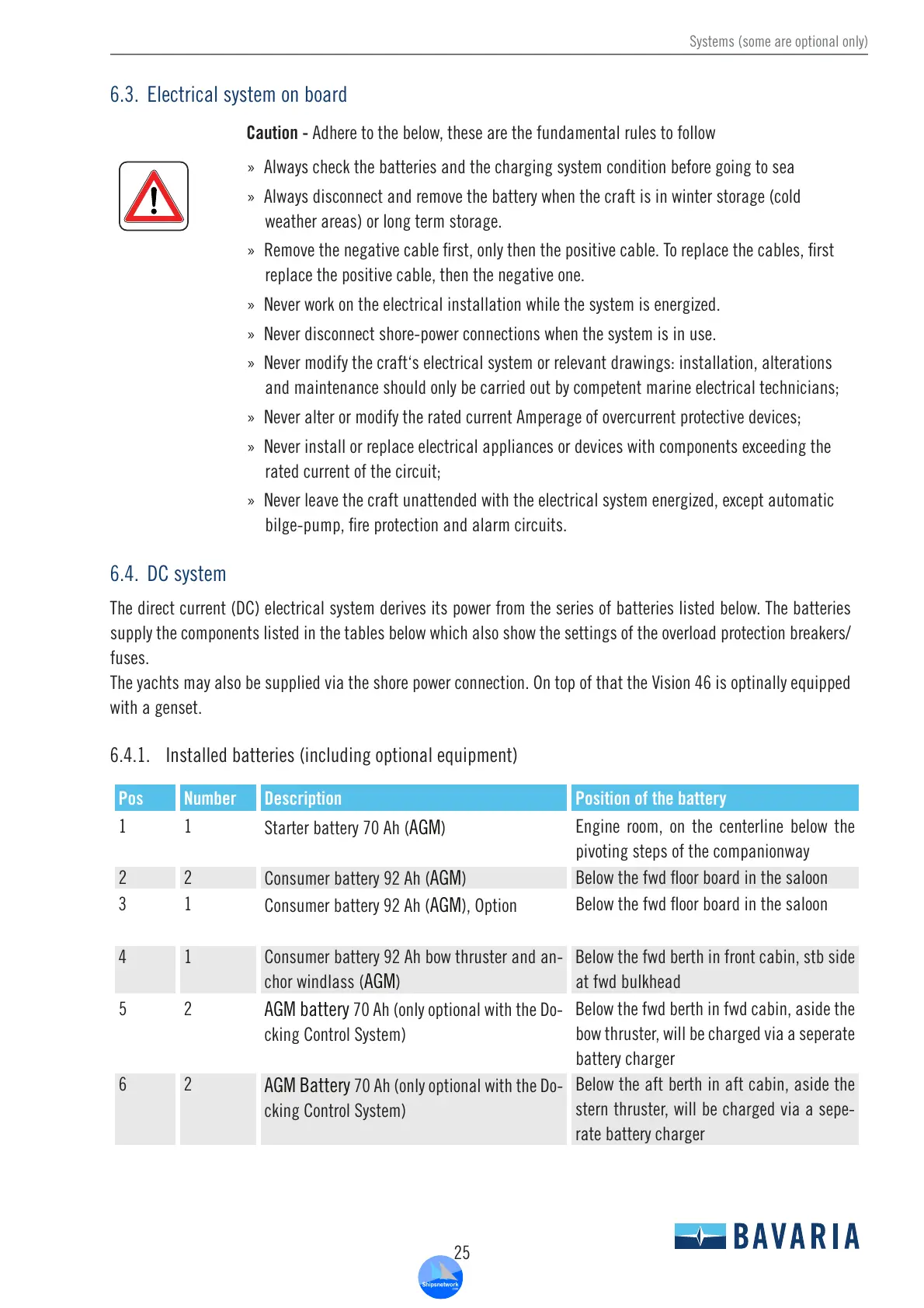

6.3. Electrical system on board
Caution - Adheretothebelow,thesearethefundamentalrulestofollow
» Alwayscheckthebatteriesandthechargingsystemconditionbeforegoingtosea
» Alwaysdisconnectandremovethebatterywhenthecraftisinwinterstorage(cold
weatherareas)orlongtermstorage.
» Removethenegativecablerst,onlythenthepositivecable.Toreplacethecables,rst
replacethepositivecable,thenthenegativeone.
» Never work on the electrical installation while the system is energized.
» Never disconnect shore-power connections when the system is in use.
» Nevermodifythecraft‘selectricalsystemorrelevantdrawings:installation,alterations
and maintenance should only be carried out by competent marine electrical technicians;
» NeveralterormodifytheratedcurrentAmperageofovercurrentprotectivedevices;
» Never install or replace electrical appliances or devices with components exceeding the
rated current of the circuit;
» Neverleavethecraftunattendedwiththeelectricalsystemenergized,exceptautomatic
bilge-pump,reprotectionandalarmcircuits.
6.4. DC system
Thedirectcurrent(DC)electricalsystemderivesitspowerfromtheseriesofbatterieslistedbelow.Thebatteries
supplythecomponentslistedinthetablesbelowwhichalsoshowthesettingsoftheoverloadprotectionbreakers/
fuses.
Theyachtsmayalsobesuppliedviatheshorepowerconnection.OntopofthattheVision46isoptinallyequipped
with a genset.
6.4.1. Installedbatteries(includingoptionalequipment)
Pos Number Description Position of the battery
1 1
Starterbattery70Ah(
AGM)
Engine room, on the centerline below the
pivoting steps of the companionway
2 2
Consumerbattery92Ah(
AGM)
Belowthefwdoorboardinthesaloon
3 1
Consumerbattery92Ah(
AGM),Option
Belowthefwdoorboardinthesaloon
4 1 Consumerbattery92Ahbowthrusterandan-
chor windlass
(AGM)
Belowthefwdberthinfrontcabin,stbside
at fwd bulkhead
5 2
AGMbattery70Ah(onlyoptionalwiththeDo-
ckingControlSystem)
Belowthefwdberthinfwdcabin,asidethe
bowthruster,willbechargedviaaseperate
battery charger
6 2
AGMBattery70Ah(onlyoptionalwiththeDo-
ckingControlSystem)
Belowtheaftberthinaftcabin,asidethe
sternthruster,willbechargedviaasepe-
rate battery charger
