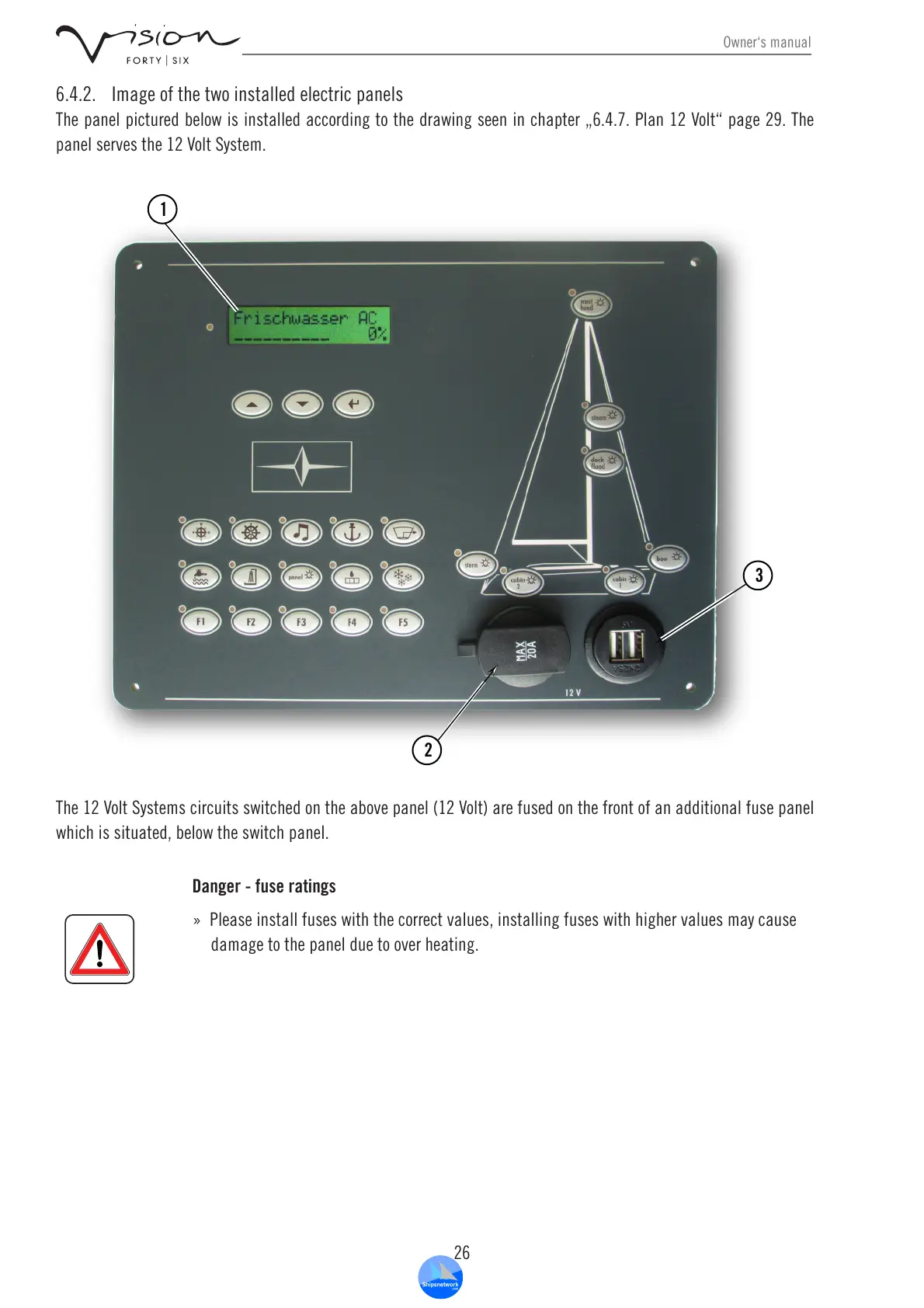

6.4.2. Image of the two installed electric panels
Thepanelpicturedbelowisinstalledaccordingtothedrawingseeninchapter„6.4.7.Plan12Volt“page29.The
panelservesthe12VoltSystem.
1
2
3
The12VoltSystemscircuitsswitchedontheabovepanel(12Volt)arefusedonthefrontofanadditionalfusepanel
whichissituated,belowtheswitchpanel.
Danger - fuse ratings
» Pleaseinstallfuseswiththecorrectvalues,installingfuseswithhighervaluesmaycause
damage to the panel due to over heating.
