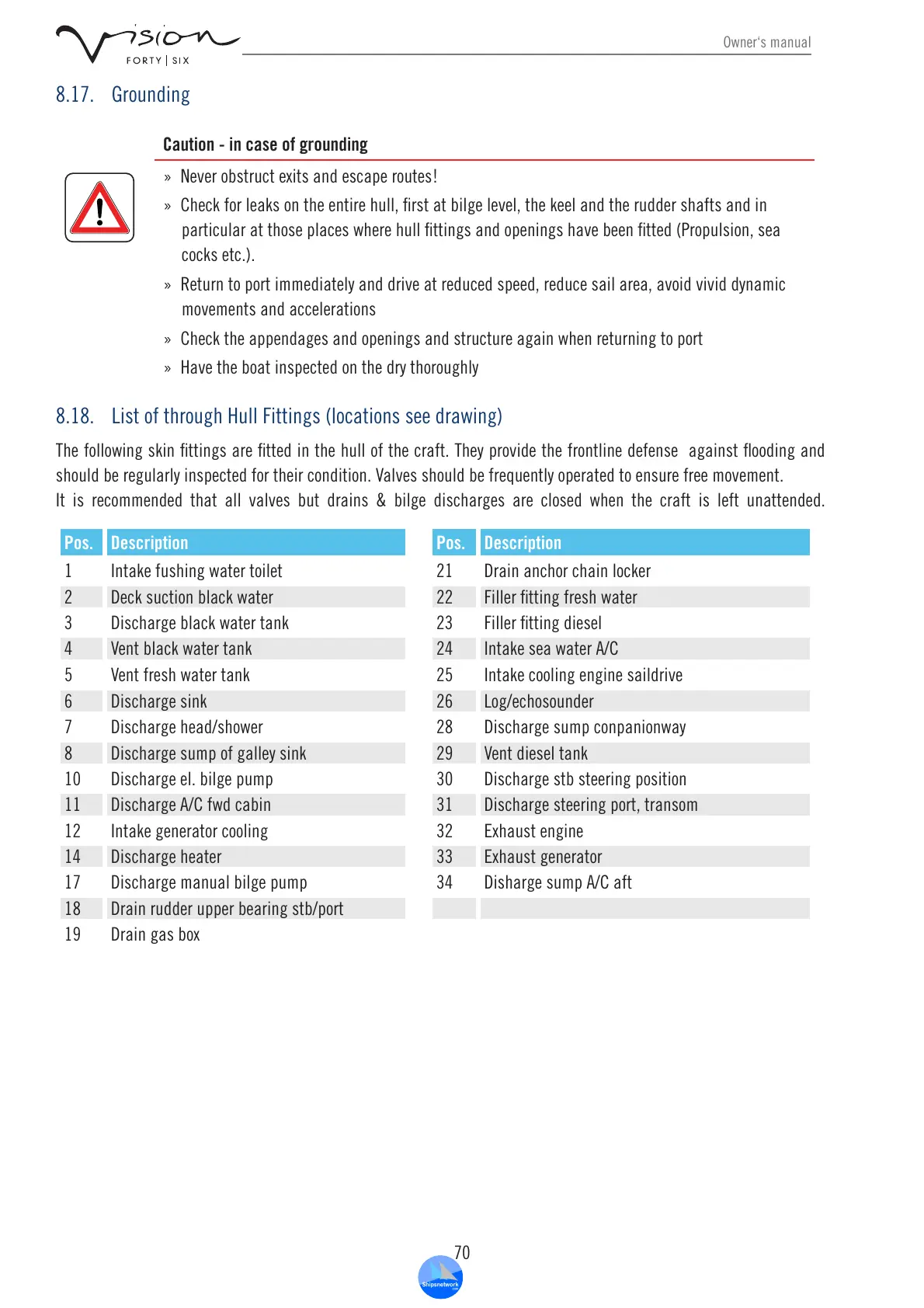

8.17. Grounding
Caution - in case of grounding
» Never obstruct exits and escape routes!
» Checkforleaksontheentirehull,rstatbilgelevel,thekeelandtheruddershaftsandin
particularatthoseplaceswherehullttingsandopeningshavebeentted(Propulsion,sea
cocksetc.).
» Returntoportimmediatelyanddriveatreducedspeed,reducesailarea,avoidvividdynamic
movements and accelerations
» Check the appendages and openings and structure again when returning to port
» Havetheboatinspectedonthedrythoroughly
8.18. ListofthroughHullFittings(locationsseedrawing)
Thefollowingskinttingsarettedinthehullofthecraft.Theyprovidethefrontlinedefenseagainstoodingand
shouldberegularlyinspectedfortheircondition.Valvesshouldbefrequentlyoperatedtoensurefreemovement.
It is recommended that all valves but drains & bilge discharges are closed when the craft is left unattended.
Pos. Description Pos. Description
1 Intake fushing water toilet 21 Drain anchor chain locker
2 Deck suction black water 22 Fillerttingfreshwater
3 Discharge black water tank 23 Fillerttingdiesel
4 Ventblackwatertank 24 IntakeseawaterA/C
5 Ventfreshwatertank 25 Intake cooling engine saildrive
6 Discharge sink 26 Log/echosounder
7 Dischargehead/shower 28 Discharge sump conpanionway
8 Discharge sump of galley sink 29 Ventdieseltank
10 Discharge el. bilge pump 30 Discharge stb steering position
11 DischargeA/Cfwdcabin 31 Dischargesteeringport,transom
12 Intake generator cooling 32 Exhaust engine
14 Discharge heater 33 Exhaust generator
17 Discharge manual bilge pump 34 DishargesumpA/Caft
18 Drainrudderupperbearingstb/port
19 Drain gas box
