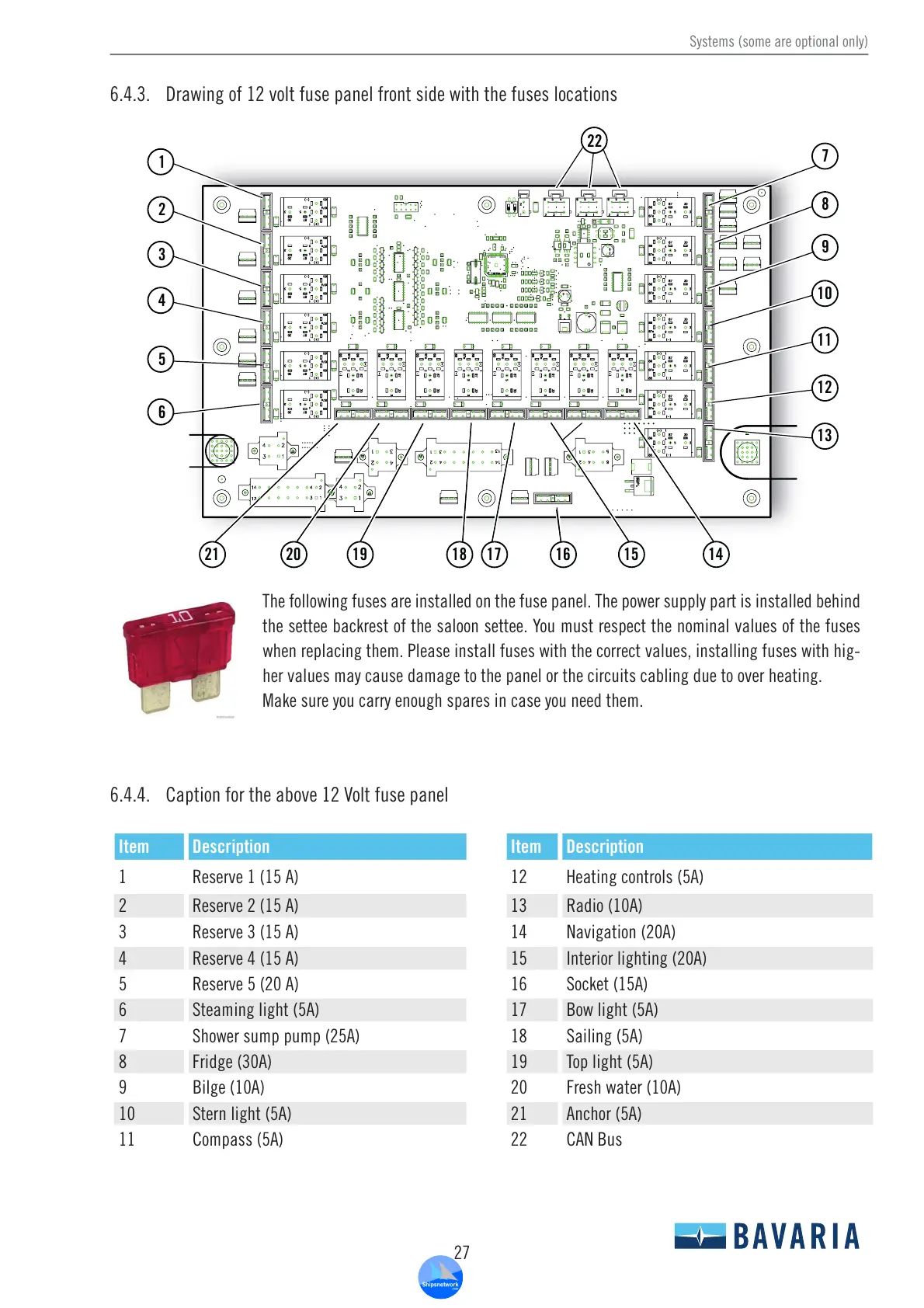

6.4.3. Drawing of 12 volt fuse panel front side with the fuses locations
1
7
2
3
4
5
6
8
9
10
11
12
21 20 19 18 17
15 14
16
13
22
The following fuses are installed on the fuse panel. The power supply part is installed behind
thesetteebackrestofthesaloonsettee.Youmustrespectthenominalvaluesofthefuses
whenreplacingthem.Pleaseinstallfuseswiththecorrectvalues,installingfuseswithhig-
her values may cause damage to the panel or the circuits cabling due to over heating.
Make sure you carry enough spares in case you need them.
6.4.4. Captionfortheabove12Voltfusepanel
Item Description Item Description
1 Reserve1(15A) 12 Heatingcontrols(5A)
2 Reserve2(15A) 13 Radio(10A)
3 Reserve3(15A) 14 Navigation(20A)
4 Reserve4(15A) 15 Interiorlighting(20A)
5 Reserve5(20A) 16 Socket(15A)
6 Steaminglight(5A) 17 Bowlight(5A)
7 Showersumppump(25A) 18 Sailing(5A)
8 Fridge(30A) 19 Toplight(5A)
9 Bilge(10A) 20 Freshwater(10A)
10 Sternlight(5A) 21 Anchor(5A)
11 Compass(5A) 22 CANBus
