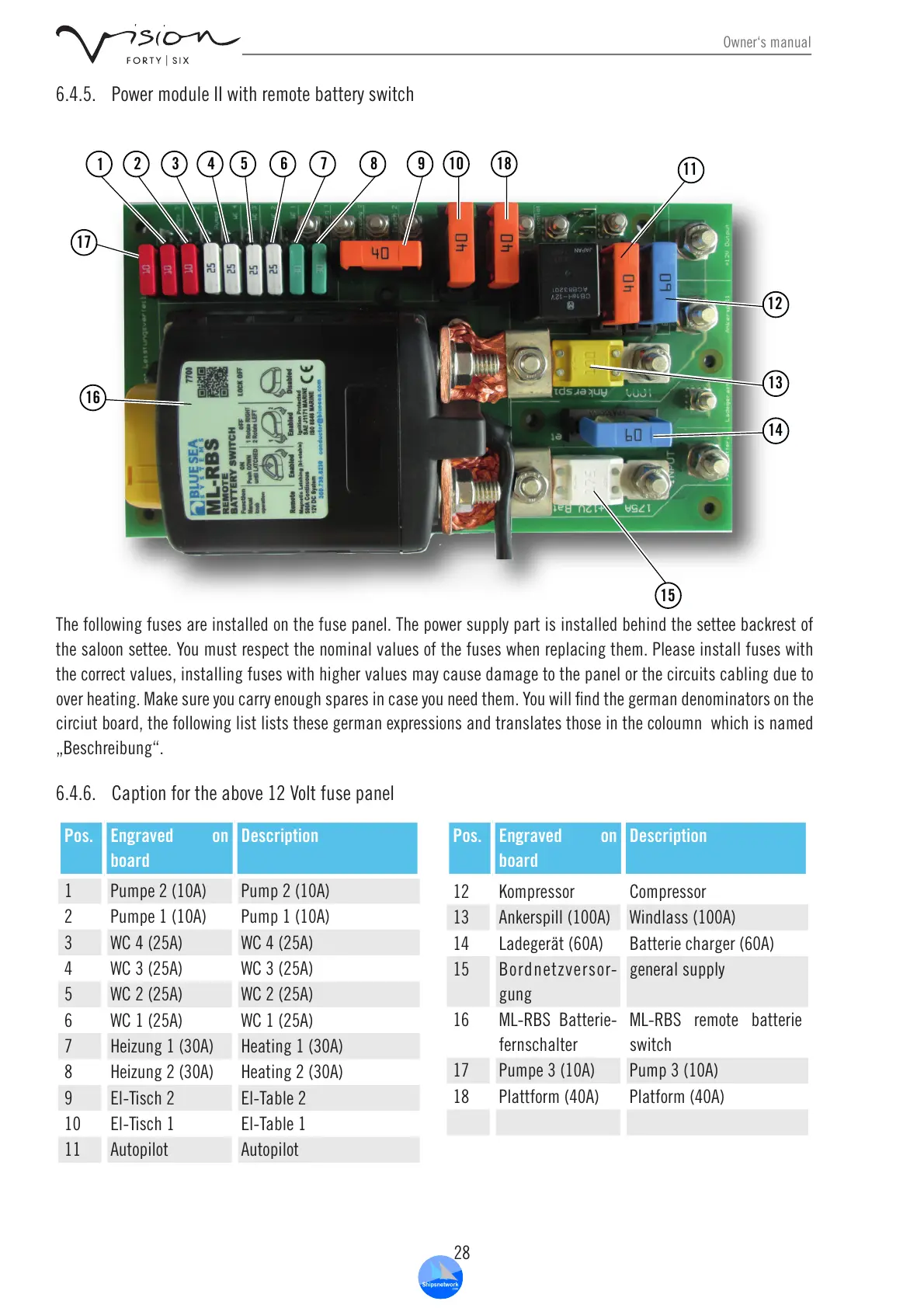

6.4.5. Power module II with remote battery switch
1
11
17
16
12
13
14
15
2 3
10
987654
18
The following fuses are installed on the fuse panel. The power supply part is installed behind the settee backrest of
thesaloonsettee.Youmustrespectthenominalvaluesofthefuseswhenreplacingthem.Pleaseinstallfuseswith
thecorrectvalues,installingfuseswithhighervaluesmaycausedamagetothepanelorthecircuitscablingdueto
overheating.Makesureyoucarryenoughsparesincaseyouneedthem.Youwillndthegermandenominatorsonthe
circiutboard,thefollowinglistliststhesegermanexpressionsandtranslatesthoseinthecoloumnwhichisnamed
„Beschreibung“.
6.4.6. Captionfortheabove12Voltfusepanel
Pos. Engraved on
board
Description
1 Pumpe2(10A) Pump2(10A)
2 Pumpe1(10A) Pump1(10A)
3 WC4(25A) WC4(25A)
4 WC3(25A) WC3(25A)
5 WC2(25A) WC2(25A)
6 WC1(25A) WC1(25A)
7 Heizung1(30A) Heating1(30A)
8 Heizung2(30A) Heating2(30A)
9 El-Tisch 2 El-Table 2
10 El-Tisch 1 El-Table 1
11 Autopilot Autopilot
Pos. Engraved on
board
Description
12 Kompressor Compressor
13 Ankerspill(100A) Windlass(100A)
14 Ladegerät(60A) Batteriecharger(60A)
15 Bordnetzversor-
gung
general supply
16 ML-RBS Batterie-
fernschalter
ML-RBS remote batterie
switch
17 Pumpe3(10A) Pump3(10A)
18 Plattform(40A) Platform(40A)
