Bavaria Vision 46 - Page 43

Systems(someareoptionalonly)
43

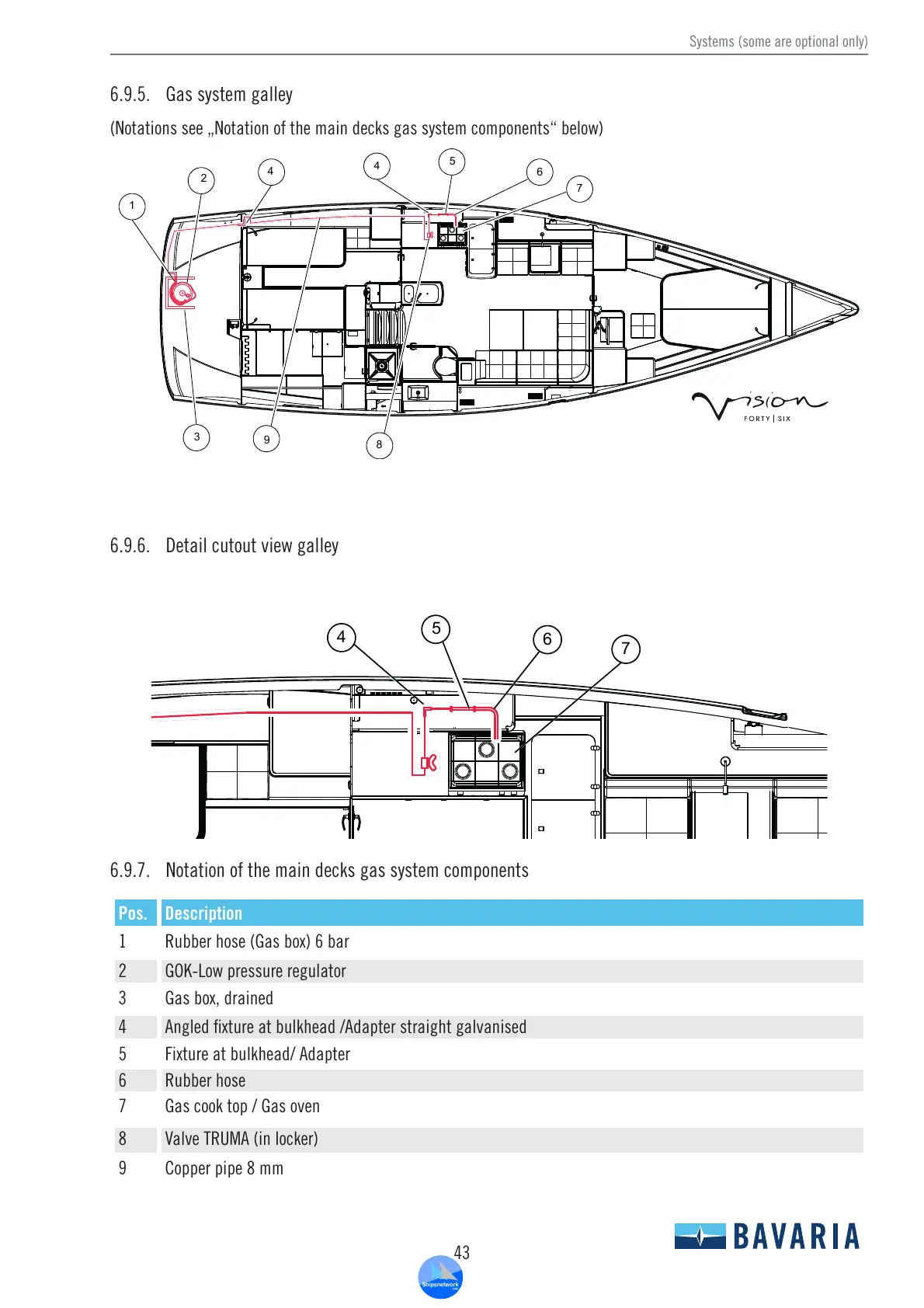

6.9.5. Gassystemgalley
(Notationssee„Notationofthemaindecksgassystemcomponents“below)
1
7
6
5
4
4
2
3
8
9
6.9.6. Detail cutout view galley
7
6
5
4
6.9.7. Notation of the main decks gas system components
Pos. Description
1 Rubberhose(Gasbox)6bar
2 GOK-Lowpressureregulator
3 Gasbox,drained
4 Angledxtureatbulkhead/Adapterstraightgalvanised
5 Fixtureatbulkhead/Adapter
6 Rubber hose
7 Gascooktop/Gasoven
8 ValveTRUMA(inlocker)
9 Copper pipe 8 mm
