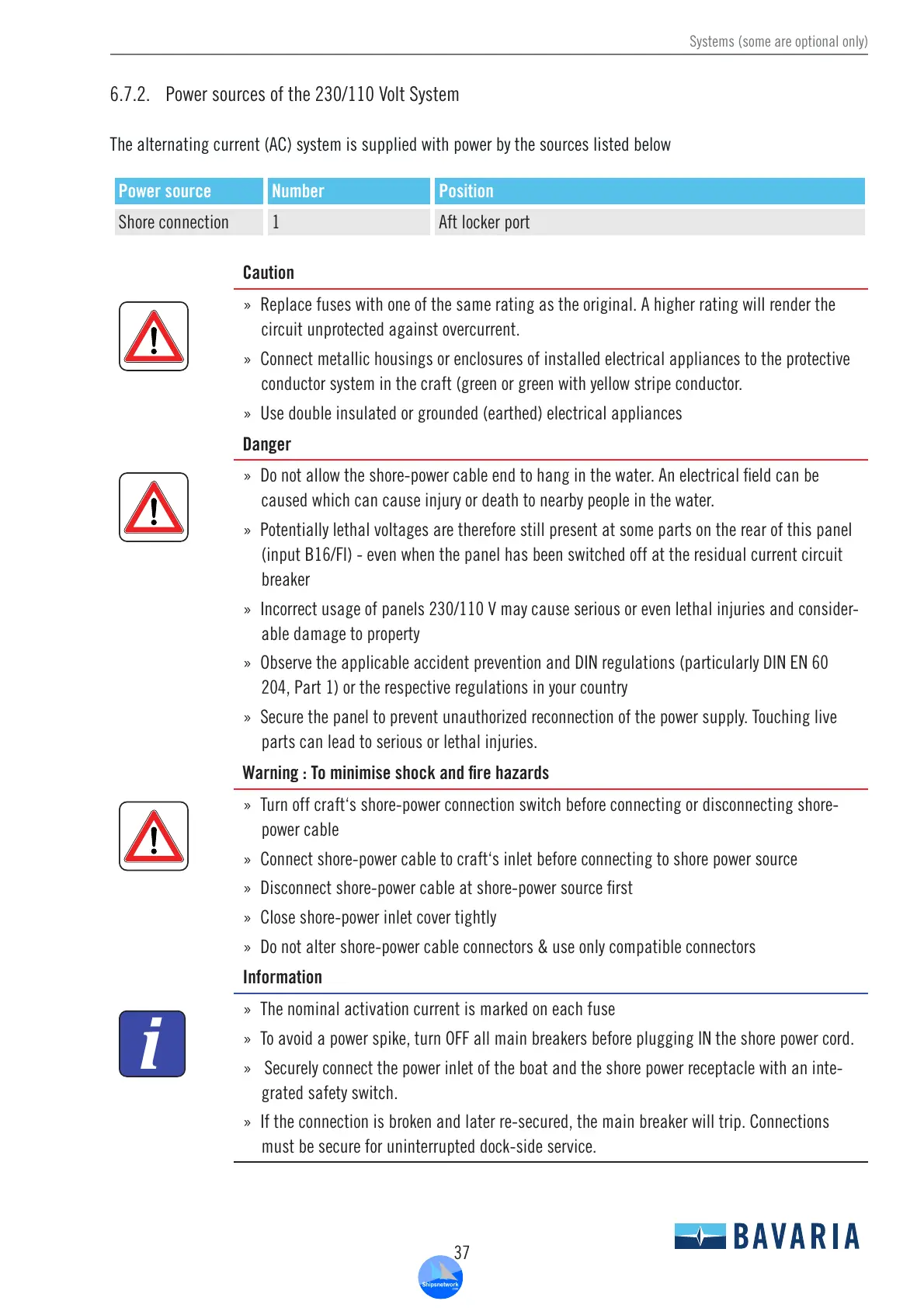

6.7.2. Powersourcesofthe230/110VoltSystem
Thealternatingcurrent(AC)systemissuppliedwithpowerbythesourceslistedbelow
Power source Number Position
Shore connection 1 Aftlockerport
Caution
» Replacefuseswithoneofthesameratingastheoriginal.Ahigherratingwillrenderthe
circuit unprotected against overcurrent.
» Connect metallic housings or enclosures of installed electrical appliances to the protective
conductorsysteminthecraft(greenorgreenwithyellowstripeconductor.
» Usedoubleinsulatedorgrounded(earthed)electricalappliances
Danger
» Donotallowtheshore-powercableendtohanginthewater.Anelectricaleldcanbe
caused which can cause injury or death to nearby people in the water.
» Potentially lethal voltages are therefore still present at some parts on the rear of this panel
(inputB16/FI)-evenwhenthepanelhasbeenswitchedoffattheresidualcurrentcircuit
breaker
» Incorrectusageofpanels230/110Vmaycauseseriousorevenlethalinjuriesandconsider-
able damage to property
» ObservetheapplicableaccidentpreventionandDINregulations(particularlyDINEN60
204,Part1)ortherespectiveregulationsinyourcountry
» Secure the panel to prevent unauthorized reconnection of the power supply. Touching live
parts can lead to serious or lethal injuries.
Warning:Tominimiseshockandrehazards
» Turn off craft‘s shore-power connection switch before connecting or disconnecting shore-
power cable
» Connect shore-power cable to craft‘s inlet before connecting to shore power source
» Disconnectshore-powercableatshore-powersourcerst
» Close shore-power inlet cover tightly
» Donotaltershore-powercableconnectors&useonlycompatibleconnectors
i
Information
» The nominal activation current is marked on each fuse
» Toavoidapowerspike,turnOFFallmainbreakersbeforepluggingINtheshorepowercord.
» Securely connect the power inlet of the boat and the shore power receptacle with an inte-
grated safety switch.
» Iftheconnectionisbrokenandlaterre-secured,themainbreakerwilltrip.Connections
must be secure for uninterrupted dock-side service.
