RS485 Star Card Manual V14 4Feb04.doc Page 9/29

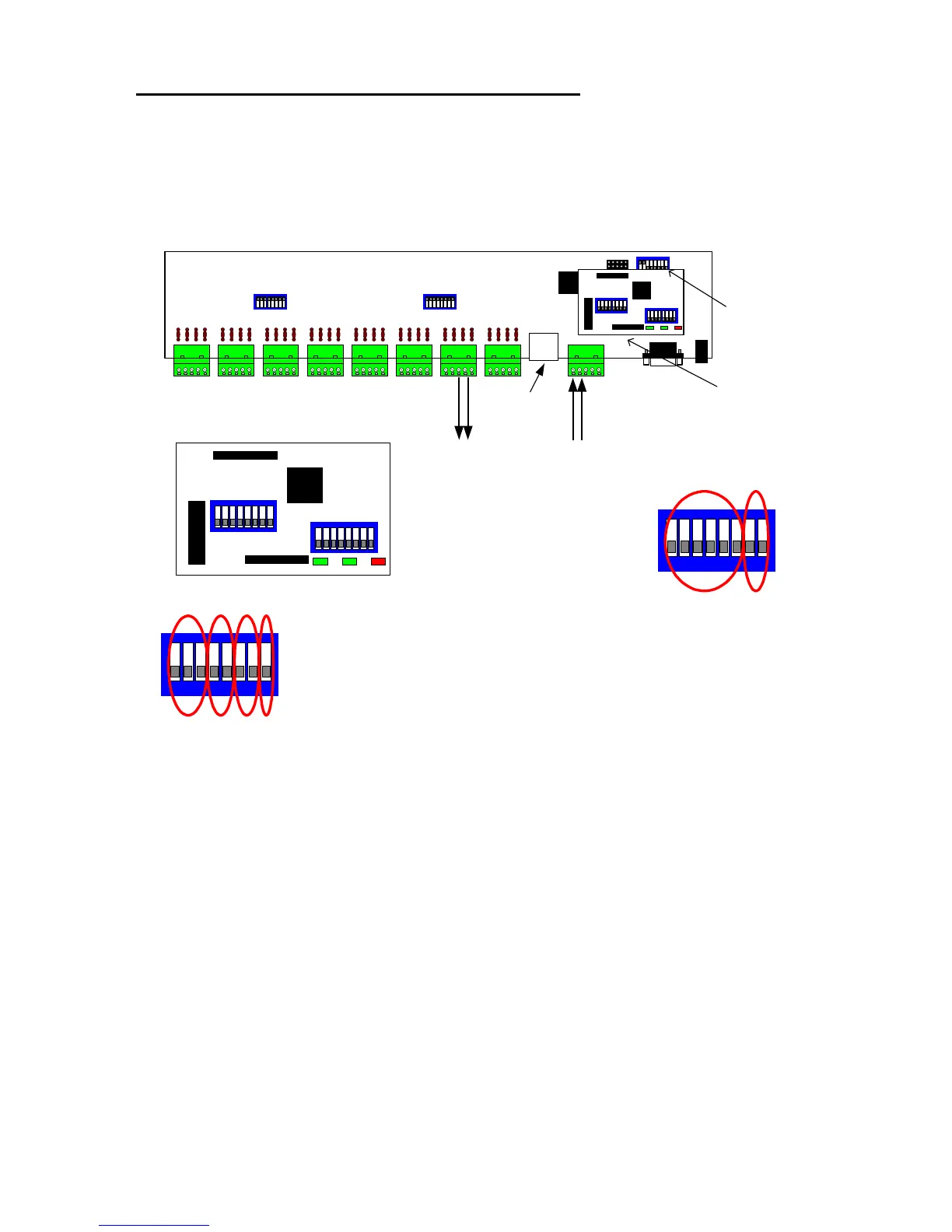

Internal view showing optional protocol converter
IMPORTANT NOTE.
When using the protocol converter, ensure that the starcard is set for 4 wire
telemetry using SW3/8 OFF. RS485 data IN to MASTER RA/RB or BBV
TELEMETRY IN with a TX1500 and data OUT to domes on STAR
TRA/TRB.
SW3
SW1
SW2
00007-3
J22
J15
J14
J16
SW1
SW2
02003
Protocol conversion card (02003)
fitted over headers J14, J15, J22.
Close up view of protocol
conversion card.
SW1
SW2
02003
LD1 LD2 LD3
LD1 = RS485 out
LD2 = RS485 in
LD3 = Checksum ERROR
SW3/8 OFF
to select 4 WIRE
SW2(1-6) Output Protol Selection
1 2 3 4 5 6 PROTOCOL BAUD
OFF OFF OFF OFF OFF OFF SELF TEST 9600,N,8,1
ON OFF OFF OFF OFF OFF DEBUG MODE 19200,N,8,1
OFF ON OFF OFF OFF OFF DENNARD 2050 9600,N,8,1
ON ON OFF OFF OFF OFF MARK MERCER 9600,N,8,1
OFF OFF ON OFF OFF OFF VCL 9600,N,8,1
ON OFF ON OFF OFF OFF PANASONIC 850 9600,N,8,1
OFF ON ON OFF OFF OFF PANASONIC 850 19200,N,8,1
ON ON ON OFF OFF OFF BBV RS485 9600,N,8,1
OFF OFF OFF ON OFF OFF JVC TK-C676 9600,E,8,1
ON OFF OFF ON OFF OFF BBV RX450/RX550 9600,N,8,1
OFF ON OFF ON OFF OFF CHUGAI ZC-S122 9600,E,8,1
ON ON OFF ON OFF OFF MOLYNX 9600,E,8,1
OFF OFF ON ON OFF OFF PELCO P 9600,N,8,1
ON OFF ON ON OFF OFF PELCO P 9600,O,8,1
OFF ON ON ON OFF OFF PELCO P 9600,E,8,1
ON ON ON ON OFF OFF PELCO P 2400,N,8,1
OFF OFF OFF OFF ON OFF PELCO P 2400,O,8,1
ON OFF OFF OFF ON OFF PELCO P 2400,E,8,1
OFF ON OFF OFF ON OFF PELCO D 9600,N,8,1
ON ON OFF OFF ON OFF PELCO D 9600,O,8,1
OFF OFF ON OFF ON OFF PELCO D 9600,E,8,1
ON OFF ON OFF ON OFF PELCO D 2400,N,8,1
OFF ON ON OFF ON OFF PELCO D 2400,O,8,1
ON ON ON OFF ON OFF PELCO D 2400,E,8,1
OFF OFF OFF ON ON OFF 360 VISION 9600,N,8,1
ON OFF OFF ON ON OFF CHUGAI SMD20 9600,N,8,1
OFF ON OFF ON ON OFF VICON 9600,N,8,1
ON ON OFF ON ON OFF VISTA POWERDOME 9600,N,8,1
OFF OFF ON ON ON OFF SAMSUNG SCC641/643 9600,N,8,1
ON OFF ON ON ON OFF MEYERTECH VICTA 9600,N,8,1
Data IN
RA/RB
Data OUT
TRA/TRB
SW2 Output Settings
1 2 3 4 5 6 7 8
RJ45 from
Tx1500
TELEMETRY
1 - 3 Protocol Selection
1 2 3 Protocol
OFF OFF OFF BBV RS485
(TX1500)
ON OFF OFF PELCO P
OFF ON OFF PELCO D
ON ON OFF VCL TP
4 - 5 Baud
4 5 Baud
OFF OFF 2400
ON OFF 4800
OFF ON 9600
ON ON 19200
6 - 7 Parity
6 7 Parity
OFF OFF NONE
ON OFF EVEN
OFF ON ODD
ON ON NONE
8 Data bits
OFF 8 BITS
ON 7 BITS
1 2 3 4 5 6 7 8
SW1 Input Settings
