Emergency Reserve Manifold
2005715.05
2.3.2 Additional Cylinder Header Extensions
(upgrade to 2 x 3 plus manifold). See gure 8 to
12.
CAUTION: Ensure that all the header rails
supplied are the correct gas type. The gas ID is
stampedontotheatsectionoftheNRVcaps.
2.3.2.1 Remove the 3/8” BSP blanking plug and
bonded seal from the end of the header block and
t 3/8” x 5/8” BSP tting (supplied with kit) com-
plete with O-ring seals for connection of the exten-
sion header.
2.3.2.2 Line up the header connection, mark
mounting hole positions and drill. Fit the wall plug
and secure with the No. 10 pan head supplied with
the kit.
2.3.2.3 Secure the previously tted 5/8” connector
to the extension header.
2.3.2.4 Repeat 2.3.2.1 & 2.3.2.3 for any additional
header extensions.
2.3.2.4 If no more header extensions are to be
tted, blank of the end of the header with the 3/8”
BSP plug and bonded seal that was removed in
step 2.3.2.1.
 CAUTION:Suppliedxingsareforuse
with solid masonry type walls only. Typical
extensionbracketis2.5kgperside.
Header Extension
3/8” x 5/8 BSP
C/W seals
3/8” BSP plug and
bonded seal

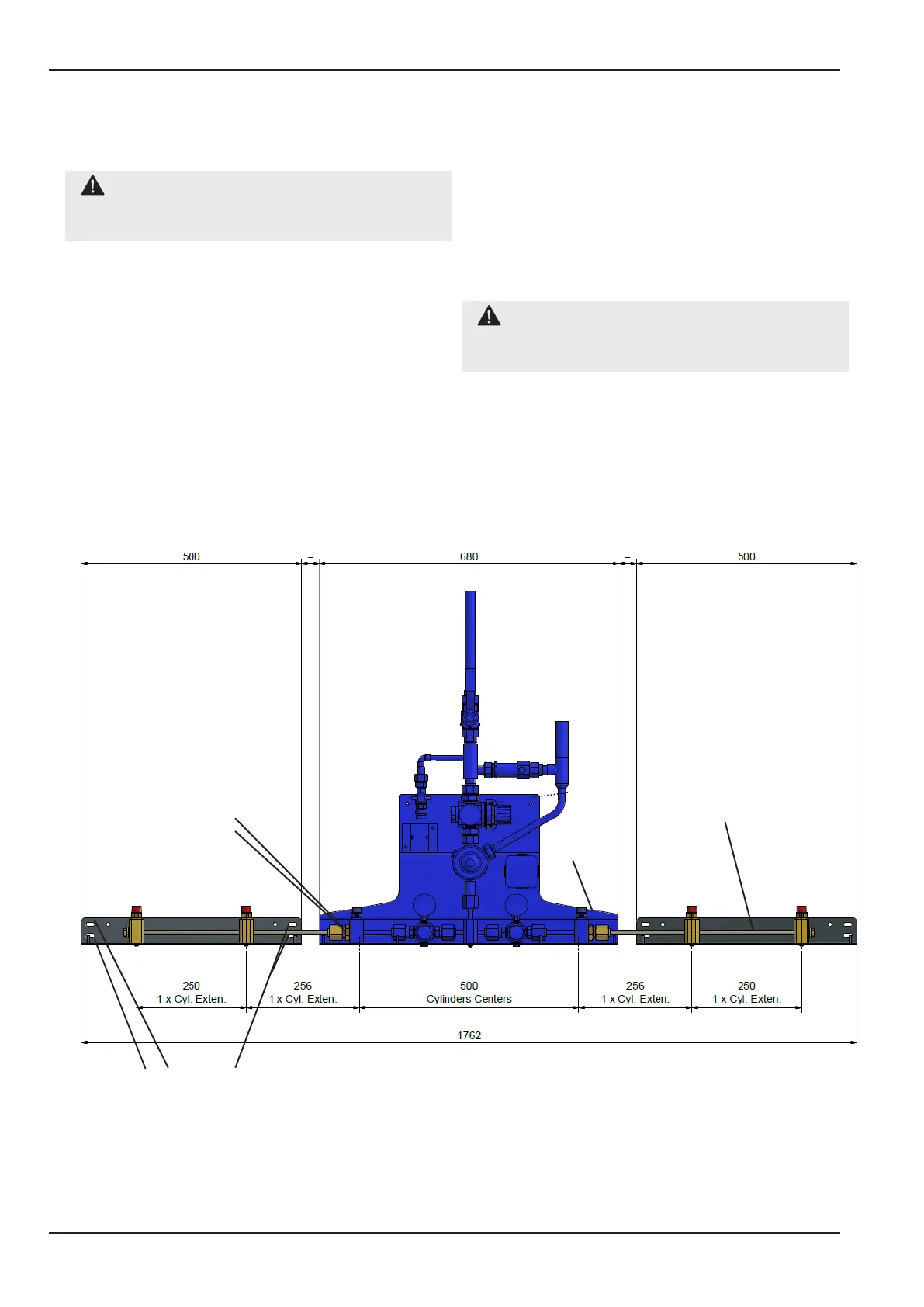

Figure 8 - Cylinder header extension tting
details (upgrade to 2 x 3 plus)
4 x wall mounting holes
