Emergency Reserve Manifold
2005715.05

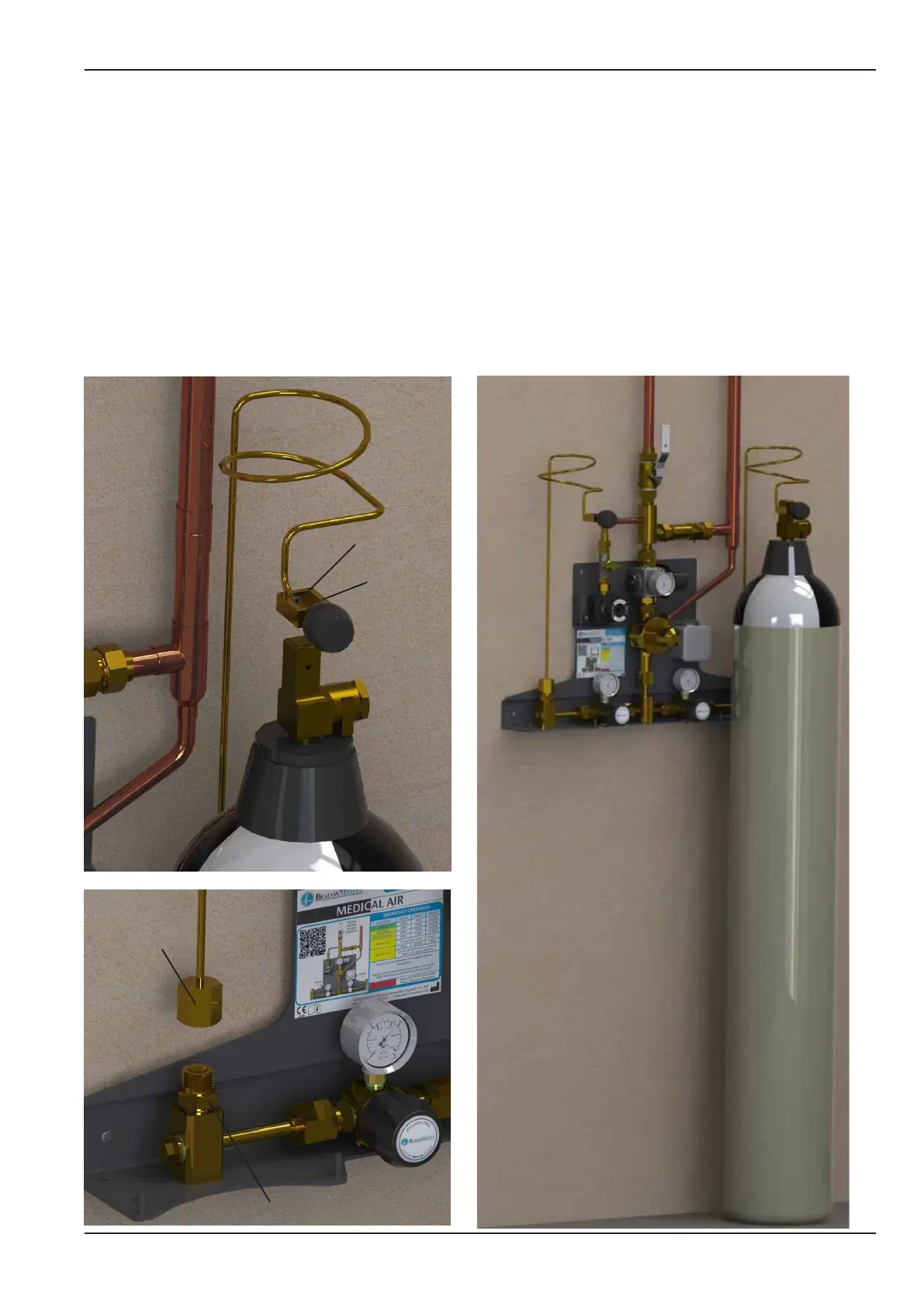

Figure 13 - Typical tailpipe and cylinder connec-
tion
Bodok Seal
Typical
tailpipe with
pin index
clamp
Header non-return valve
Tailpipe to
non-return valve
connection
2.5.7 Repeat the 2.6.3 to 2.6.6 for the right-hand
cylinder bank.
2.5.8 Check the reserve low alarm is connected
as shown in gure 5.
2.5.9 The installation must now be purged
as per HTM 02-01 for UK installations, or as per
relevant standards if installed outside the UK.
