BeaconMedaes HTM02-01 - Page 27

27
Emergency Reserve Manifold
2005715.05

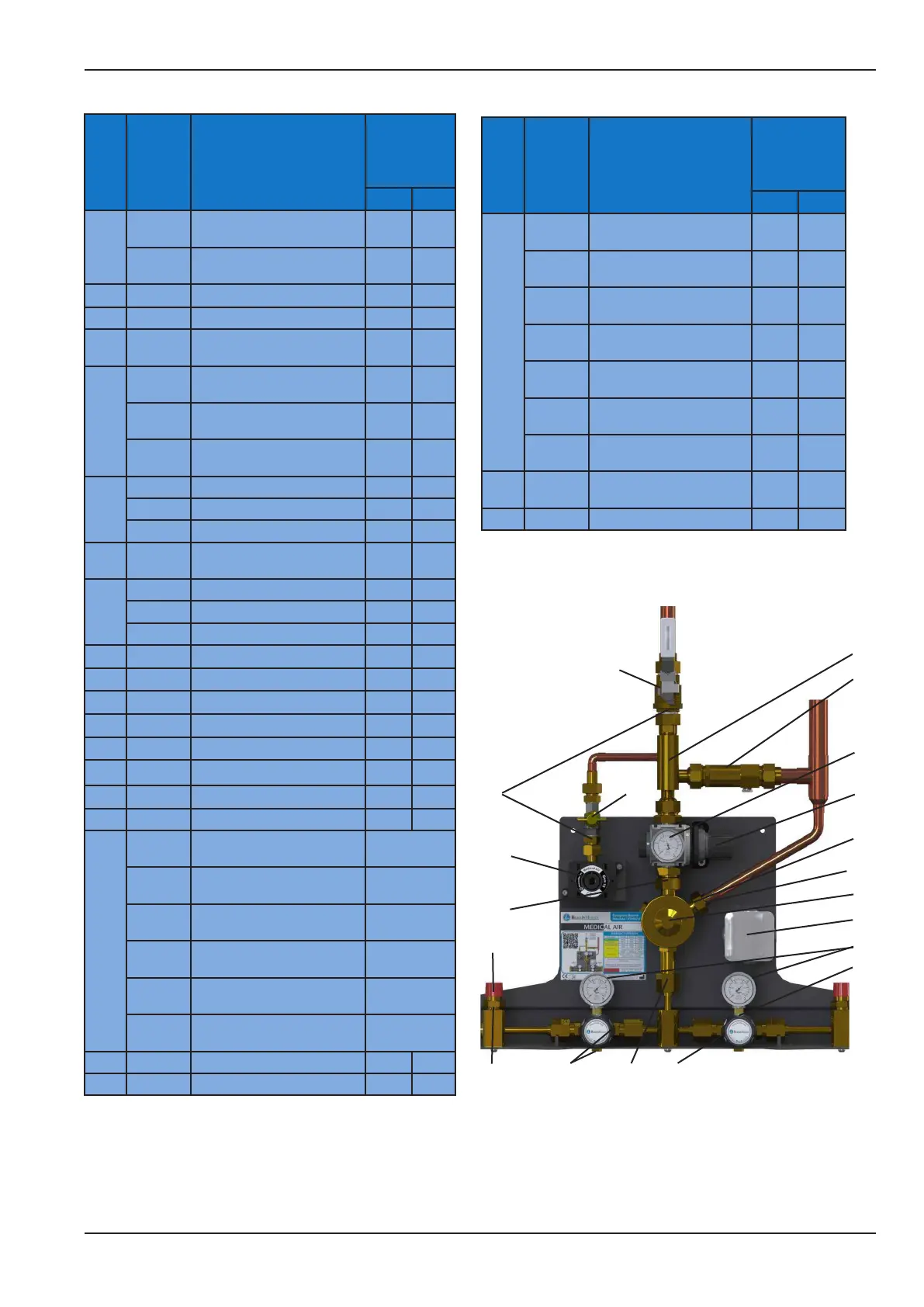

Table 11b: Spares scheduling
Item
ID
Part
Num-
ber
ERM Description
Quan-
tity req./
Number of
Panels
<5 >5
1
2005773
Contact Gauge – 0-315
bar/68 bar Falling
1(2) 2(2)
2005772
Contact Gauge – 0-100
bar/14 bar Falling
1(2) 2(2)
2 2005383 1st Stage Regulator 1(2) 2(2)
3 2005820 HP Valve Assembly 1(2) 2(2)
4 2005384
1st stage relief valve - 20
bar
1(2) 2(2)
5
2005689
Line Regulator – 4.6 bar
Outlet
1(2) 2(2)
2005690
Line Regulator – 8.6 bar
Outlet
1(2) 2(2)
2005691
Line Regulator – 11 bar
Outlet
1(2) 2(2)
6
2005765 Line Gauge – 6 bar 1(1) 1(2)
2005766 Line Gauge – 10 bar 1(1) 1(2)
2005767 Line Gauge – 16 bar 1(1) 1(2)
7 2005778
Manifold block c/w Non-
Return Valve
1(1) 1(2)
8
2000122 Relief Valve – 5.3 bar 2(2) 3(4)
2000123 Relief Valve – 11 bar 2(2) 3(4)
2000140 Relief Valve – 13 bar 2(2) 3(4)
9 1823637 ‘O’ Ring – 12.1 I/D x 1.6 CSA 2(4) 2(4)
10 1822236 ‘O’ Ring – 15.1 I/D x 1.6 CSA 2(4) 2(4)
11 2000179 ‘O’ Ring – 17.1 I/D x 1.6 CSA 2(4) 2(4)
12 2000152 ’O’ Ring – 22.1 I/D x 1.6 CSA 2(4) 2(4)
13 2004808 1/4” Bonded Seal 2(4) 2(4)
14 1824977 3/8” Bonded Seal 2(4) 2(4)
15 1825637 1/2” Bonded Seal 2(4) 2(4)
16 2005820 Line Valve Assembly 1(2) 2(2)
17
2000288
Header Non-Return Valve
Kit, O2
1(2) per
Cylinder
2000289
Header Non-Return Valve
Kit, N2O
1(2) per
Cylinder
2000290
Header Non-Return Valve
Kit, O2/N2O
1(2) per
Cylinder
2000291
Header Non-Return Valve
Kit, AIR
1(2) per
Cylinder
2000292
Header Non-Return Valve
Kit, N2
1(2) per
Cylinder
2005625
Header Non-Return Valve
Kit, CO2
1(2) per
Cylinder
18 2000172 Test Point Isolation Valve 1(2) 2(2)
19 2005775 Alarm Terminal Box 1(1) 1(1)
Item
ID
Part
Num-
ber
ERM Description
Quan-
tity req./
Number of
Panels
<5 >5
20
1826850 Gem 10 2nd x - Oxygen
(O2)
1(1) 1(2)
1826851 Gem 10 2nd x - Nitrous
Oxide (N2O)
1(1) 1(2)
1826852 Gem 10 2nd x - Oxygen/
Nitrous Oxide (O2/N2O)
1(1) 1(2)
1826853 Gem 10 2nd x - Medical
Air
1(1) 1(2)
1826854 Gem 10 2nd x - Surgical
Air
1(1) 1(2)
2004835 Gem 10 2nd x - Nitrogen
(N2)
1(1) 1(2)
2004836 Gem 10 2nd x - Carbon
Dioxide (CO2)
1(1) 1(2)
21
2005692 Copper Sealing Washer -
Gauge
2(4) 4(6)
22 2000239 ‘O’ Ring - NRV capsule 2(4) 4(6)
3
1
4
6
7
9
5
8
10
2
11
12
15
13
14
16
17
20
18
19
22
21
