Mounting and wiring
BC3150 15Version: 2.1.0
3 Mounting and wiring
3.1 Mounting
3.1.1 Dimensions
The Beckhoff Bus Terminal system is characterized by low physical volume and high modularity. When
planning a project it must be assumed that at least one Bus Coupler and a number of Bus Terminals will be
used. The mechanical dimensions of the Bus Couplers are independent of the fieldbus system.

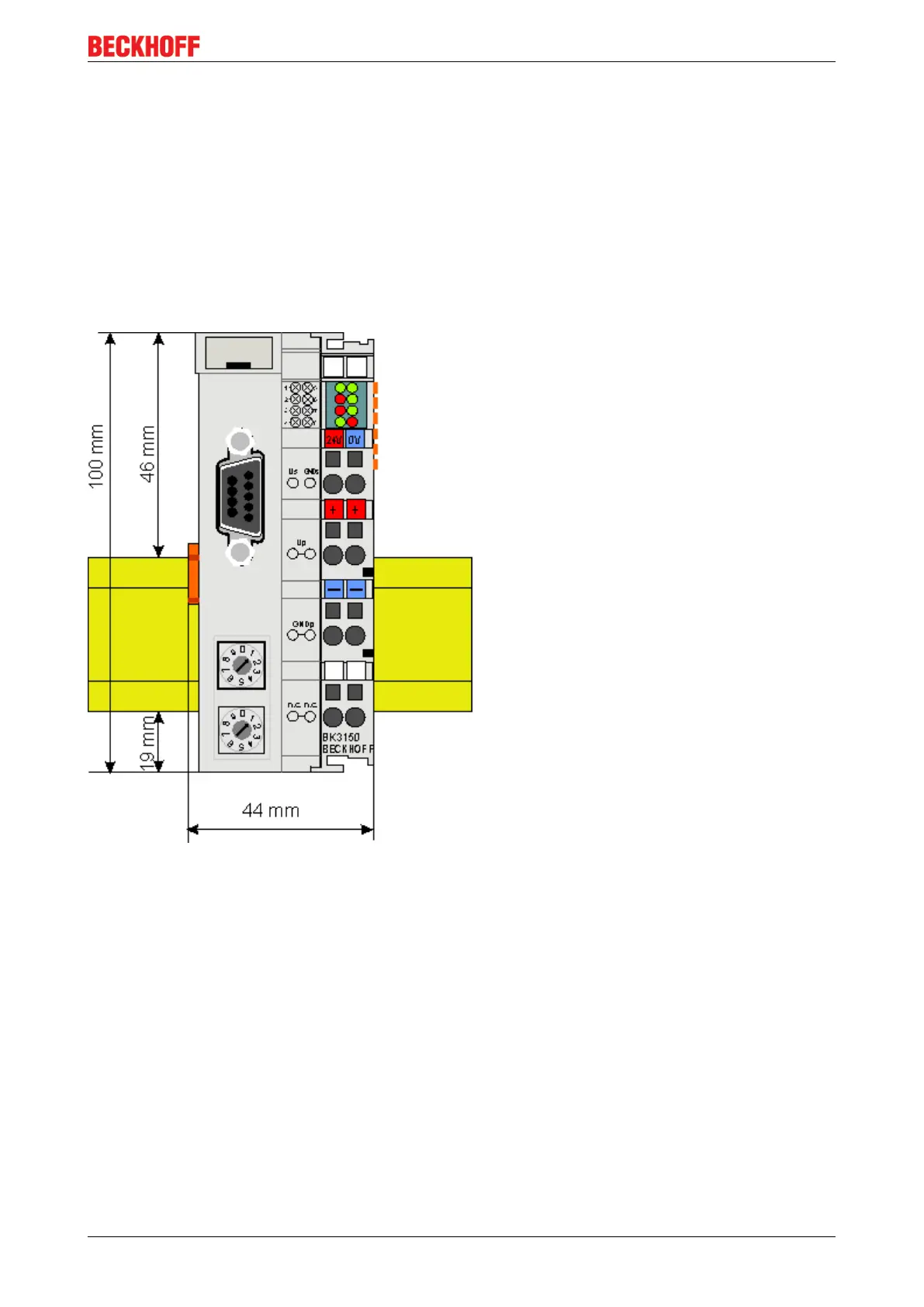

Fig.3: BCxx50
The total width of the fieldbus station is the width of the Bus Coupler/Bus TerminalController plus the width
of the Bus Terminals being used (incl. KL9010 bus end terminal). Depending on design, the Bus Terminals
are 12mm or24mm wide. The height is 100mm.
The BCxx50 series Bus TerminalControllers are 68mm deep.
