Parameterization and Commissioning
BC315034 Version: 2.1.0

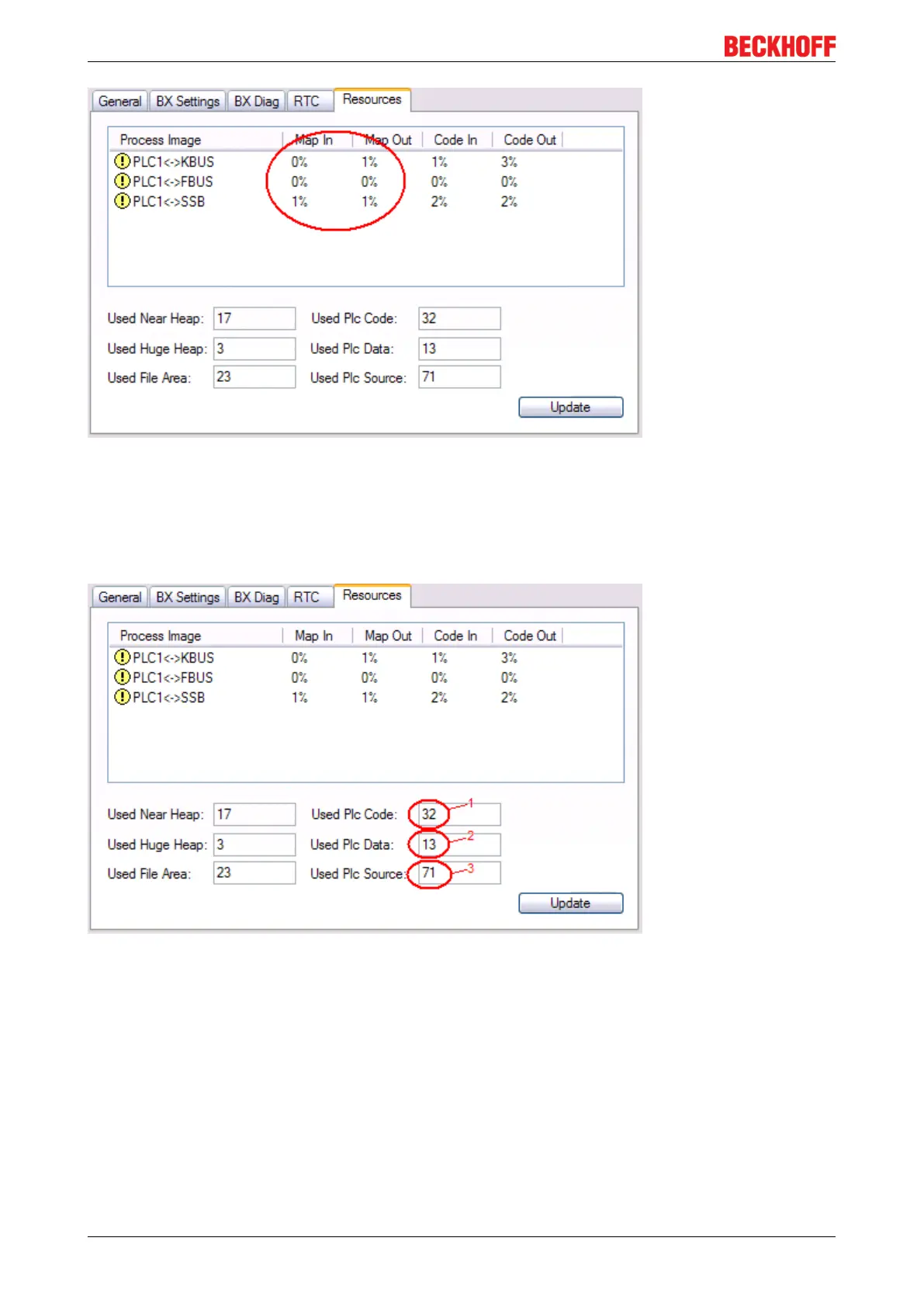

Fig.27: Data memory mapping
Used code and data memory
Fig. Code and data memory (1) "Used PLC code" in %.
Fig. Code and data memory (2) "Used PLC data" in %.
Fig. Code and data memory (3) "Used PLC source" in %.
Fig.28: Code and data memory
Other memory
Fig. Other Memory (1) "Used Near Heap" is required for the COM interface and SSB. %values.
Fig. Other Memory (2) "Used Huge Heap" is required for the ADS communication. %values. This value
should be less than 30%.
Fig. Other Memory (3) "Used File Area" is required for the TwinCAT configuration, the TSM file and the
16kbyte flash access. %values.
