Commissioning
Real-time Ethernet port multiplier 39
Version: 2.6
Specification Meaning
Off no EtherCAT cable redundancy
Second Adapter physical adapter/Ethernet port of the controller
Adapter Reference logical adapter such as in the CU2508
Number of ports
A corresponding number of ports must be set to available in the settings for the CU2508 adapter.
After specifying the redundancy adapter, it must be checked whether the System Manager has selected the
correct EtherCAT slave port as the field-side connection point, see fig. Specification of the field-side
redundancy port.

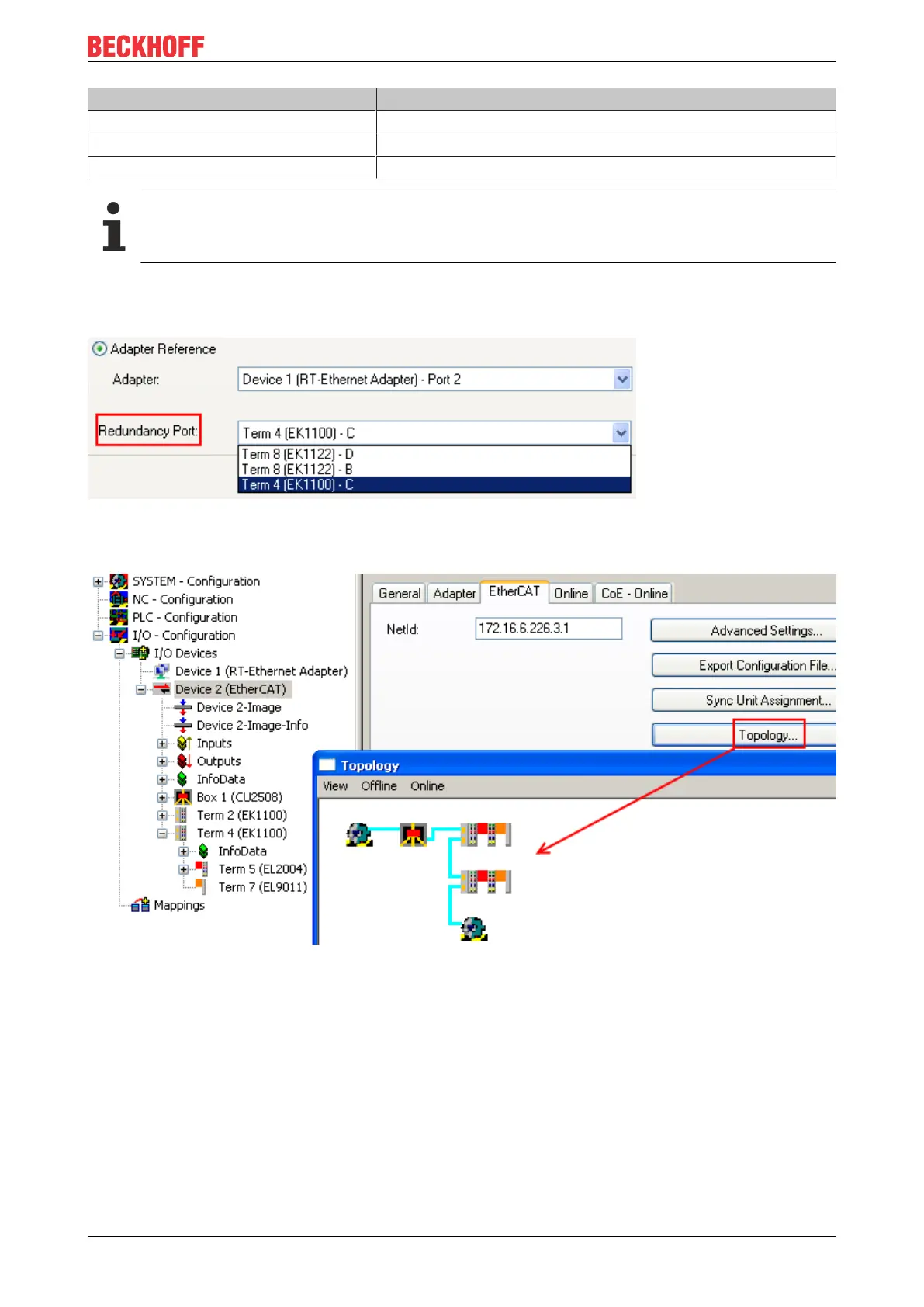

Fig.49: Specification of the field-side redundancy port
The correct selection can be checked in the Topology window.
Fig.50: Checking topology with EtherCAT cable redundancy
