Appendix
Real-time Ethernet port multiplier68
Version: 2.6

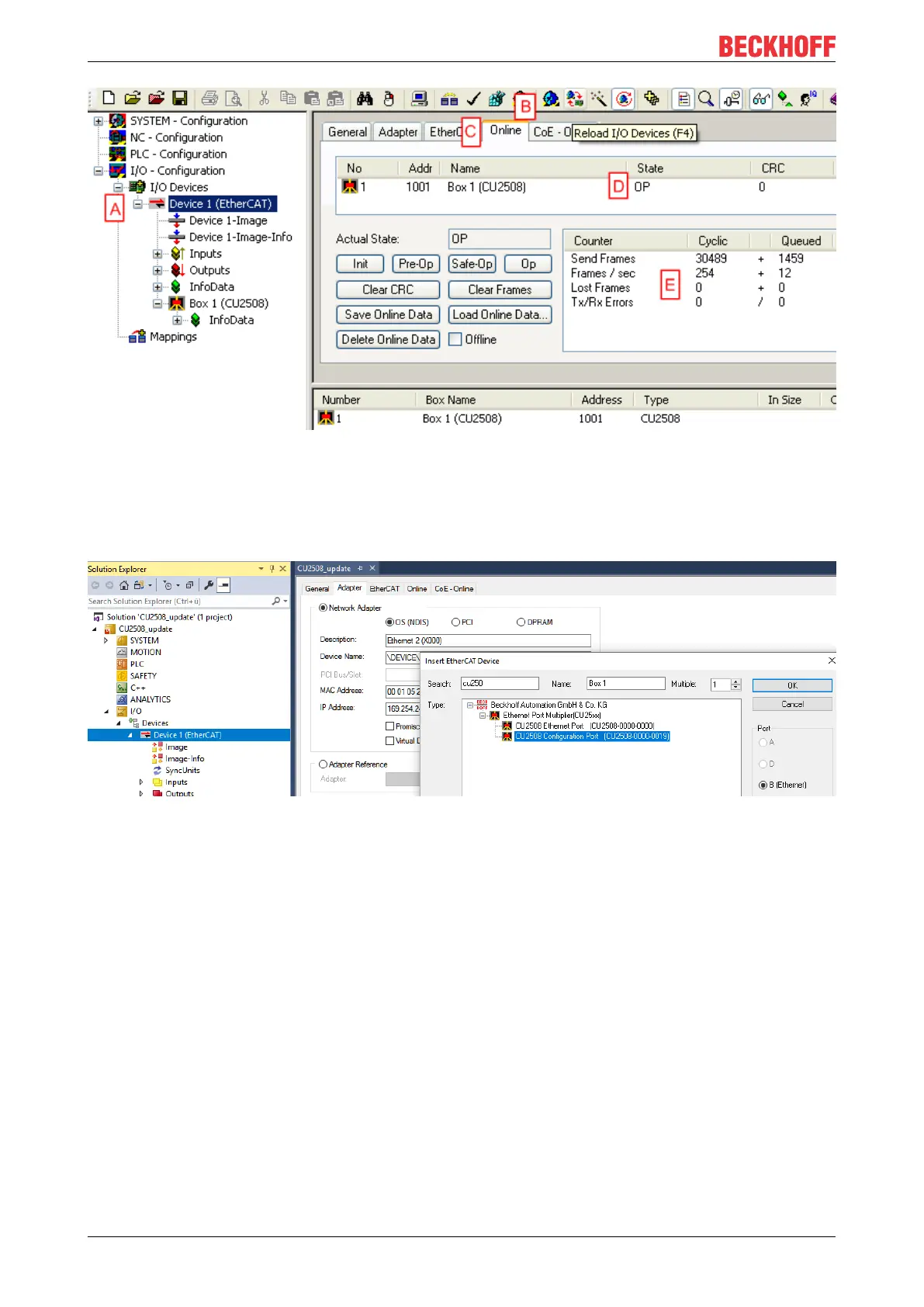

Fig.95: Online configuration
Instruction TwinCAT 3:
The procedure is the same as for TwinCAT 2: add the "CU2508 Configuration Port" to the selected
EtherCAT adapter.
Fig.96: Append Configuration Port
Then check that it is operating correctly:
• No Lost frames
• State:OP
