Appendix
Real-time Ethernet port multiplier 71
Version: 2.6

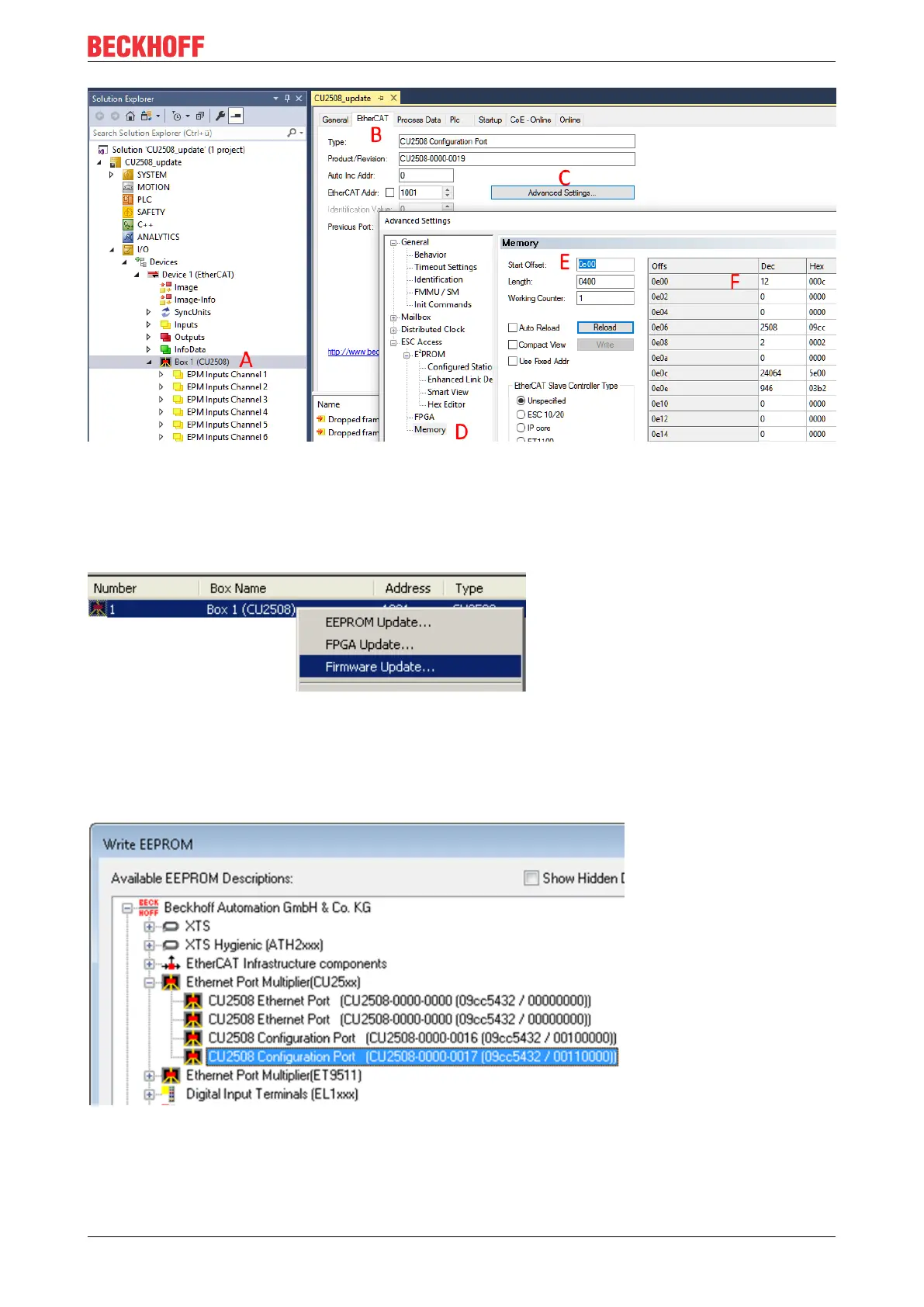

Fig.101: Reading FPGA firmware
6. Firmware and ESI Update
On the basis of fig. Online configuration, if communication is working perfectly, an update of ESI, controller
and FPGA firmware can be performed by right-clicking on the CU2508 device.
Fig.102: Update by right-clicking
ESI/XML- update
The ESI *.xml can also be overwritten by "EEPROM Update". Then select and program the corresponding
XML revision of the "CU2508 Configuration Port".
Fig.103: Select XML revision
