Operation
EL1918 and EL1918-2200
32
Version: 2.0.0

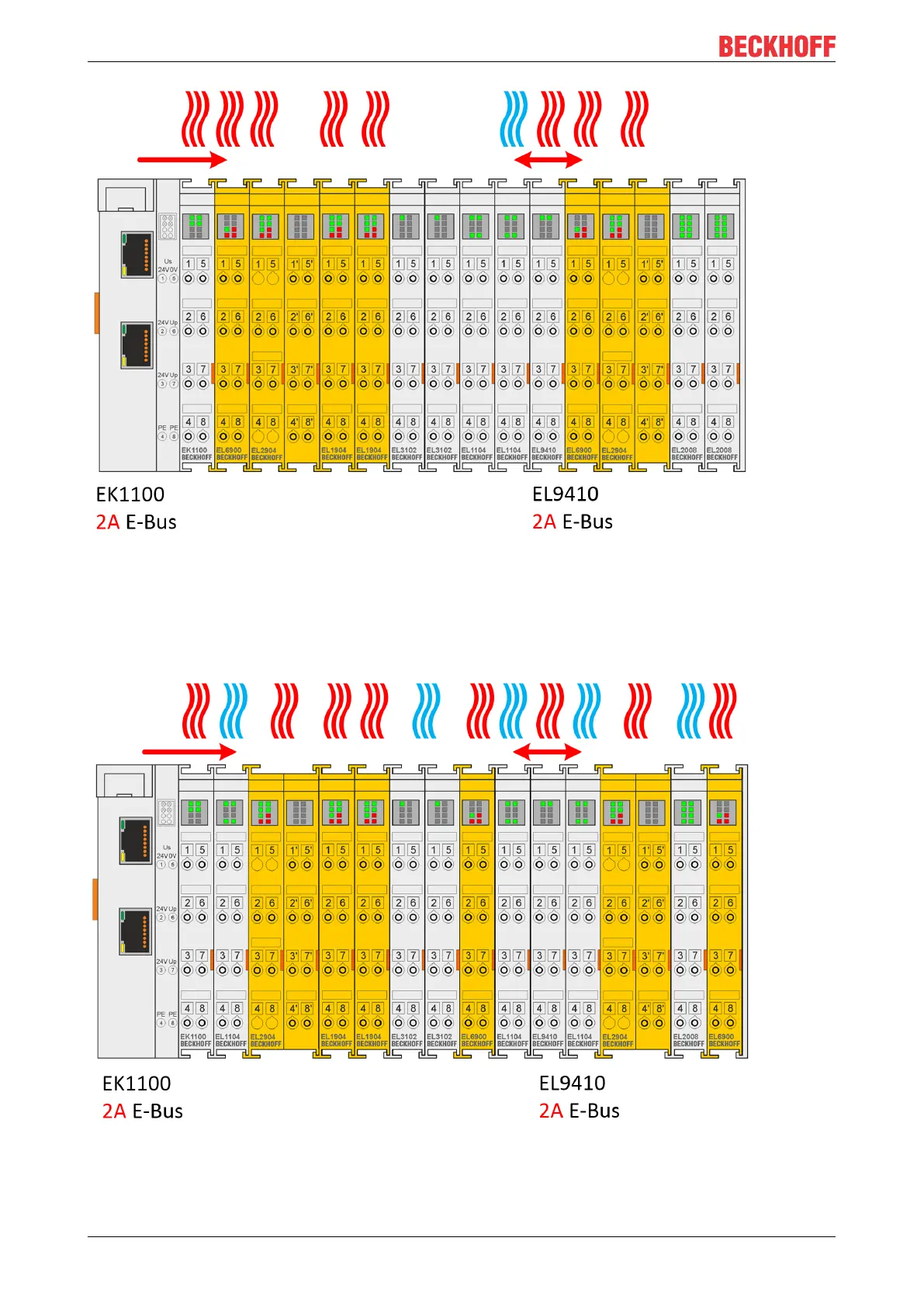

Fig.9: Thermally unfavorable arrangement of the TwinSAFE terminals
Thermally favorable arrangement of the TwinSAFE terminals
The following arrangement is thermally optimized, as terminals with low current consumption and therefore
low waste heat are attached between the EtherCAT Coupler/power supply terminal and terminals with higher
waste heat.
Fig.10: Thermally favorable arrangement of the TwinSAFE terminals
