Beckhoff KS6031 User Manual

KS2000 Configuration Software
KL6031/KS6031, KL6041/KS604126 Version: 2.1.0

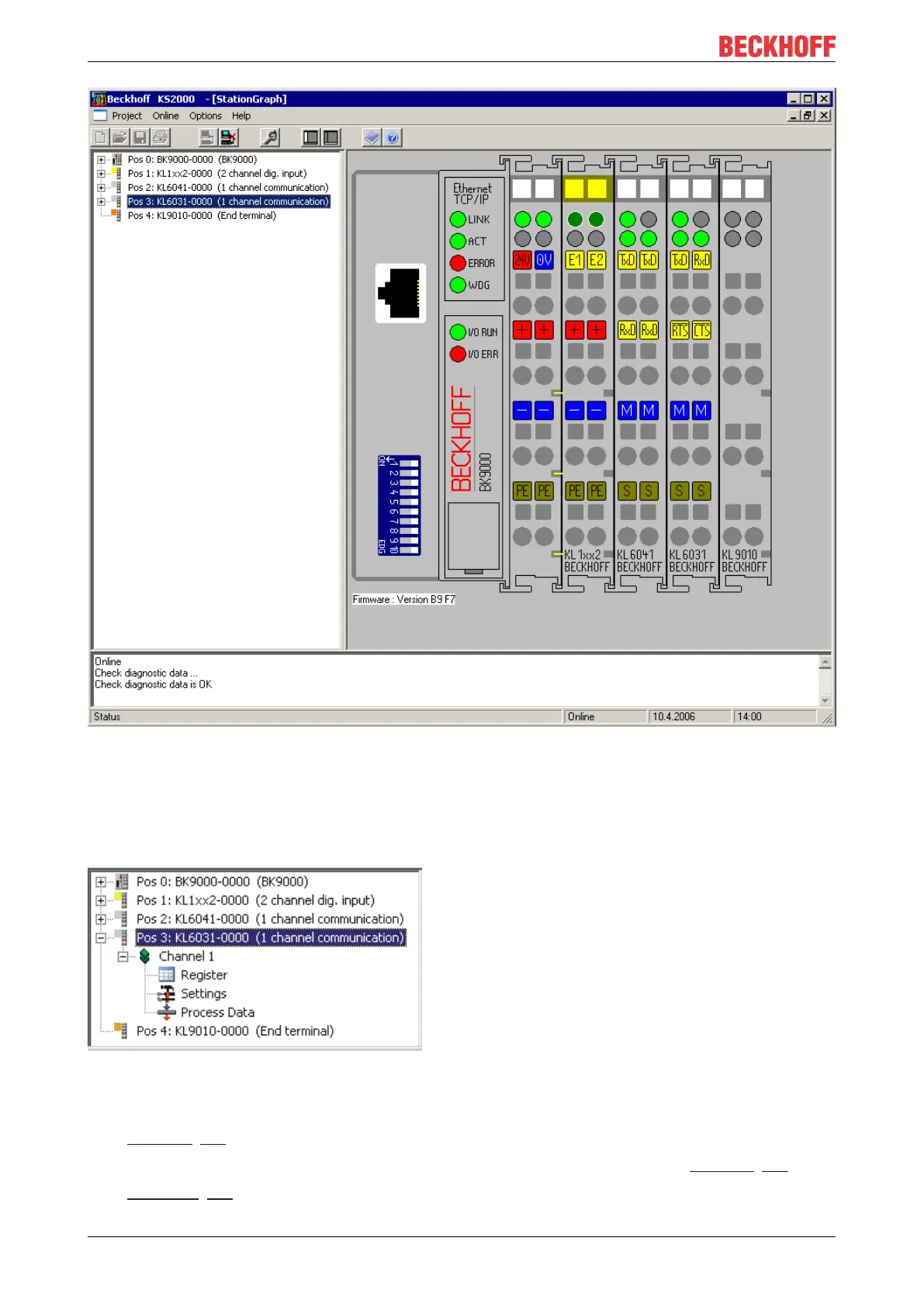

Fig.14: Display of the fieldbus station in KS2000
The left-hand KS2000 window displays the terminals of the fieldbus station in a tree structure.
The right-hand KS2000window contains a graphic display of the fieldbus station terminals.
In the tree structure of the left-hand window, click on the plus-sign next to the terminal whose parameters
you wish to change (item 2 in the example).
Fig.15: KS2000 tree branch for channel 1 of the KL6031
For the KL6031 or KL6041, the branches Register, Settings and ProcData are displayed:
• Register [}27] enables direct access to the KL6031/KL6041 registers.
• Dialog masks for the parameterization of the KL6031/KL6041 can be found under Settings [}28].
• ProcData [}32] displays the KL6031/KL6041 process data.
