Product overview
KL6031/KS6031, KL6041/KS60418 Version: 2.1.0
2 Product overview
2.1 KL6031 - Introduction

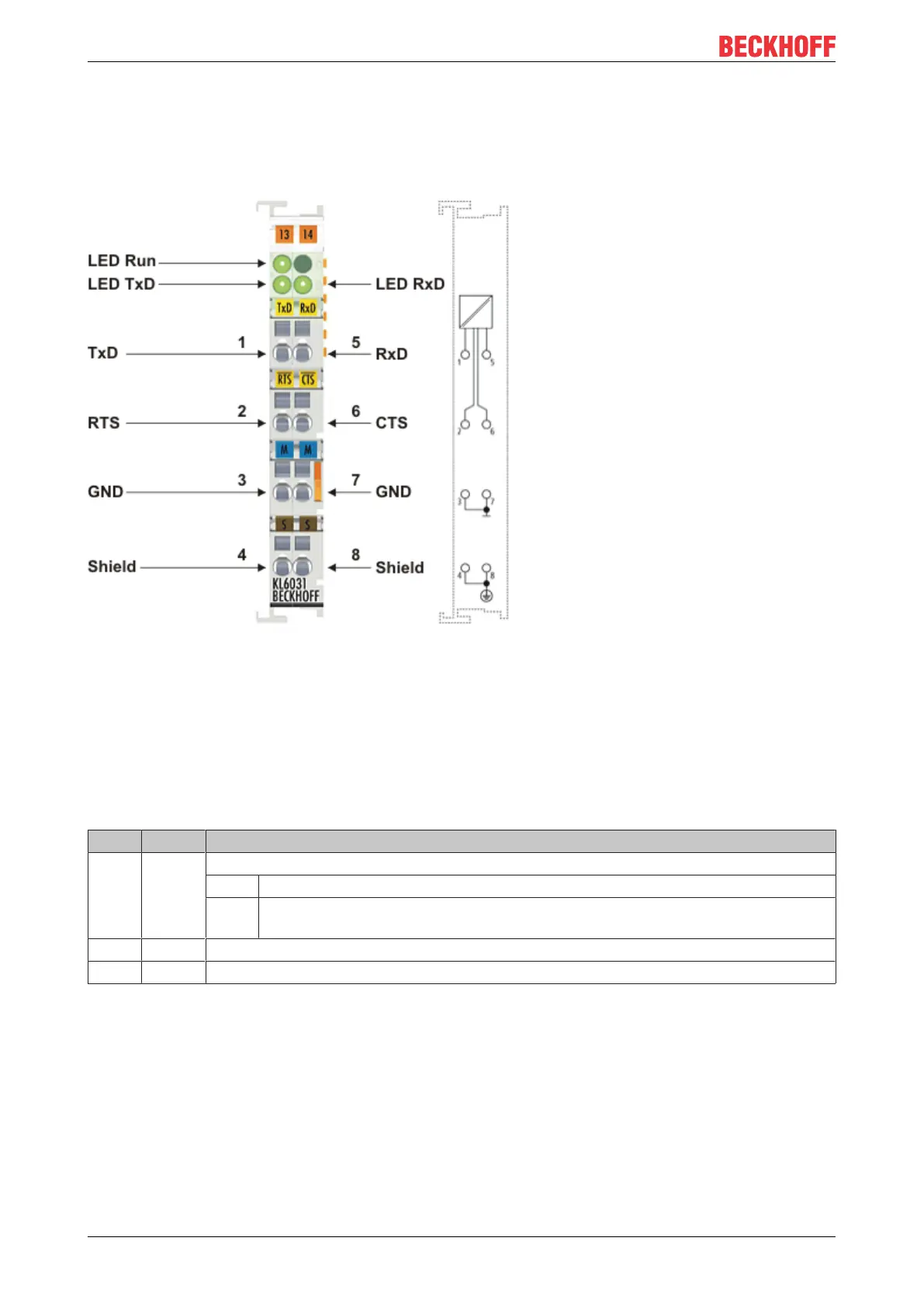

Fig.1: KL6031
The KL6031 serial interface allows devices with RS232 interface to be connected. It operates in conformity
with the CCITT V.28/DIN 66 259-1 standards. The device connected to the KL6031 terminal communicates
with the automation device via the Bus Coupler. The active communication channel operates independently
of the higher-level bus system in full duplex mode at up to 115.2kbit/s. The RS232 interface guarantees high
immunity to interference through electrically isolated signals.
LEDs
LED Color Meaning
RUN green This LED indicates the terminal's operating state:
on normal operation
off A watchdog timer overflow has occurred. The RUN LED goes out if no process
data is transmitted to the terminal from the Bus Coupler for 100ms.
TxD green State of the transmit signal line
RxD green State of the receive signal line
