Product overview

─── Version: 1.0XPlanar

APM4330-0000

andAPM4550-0000

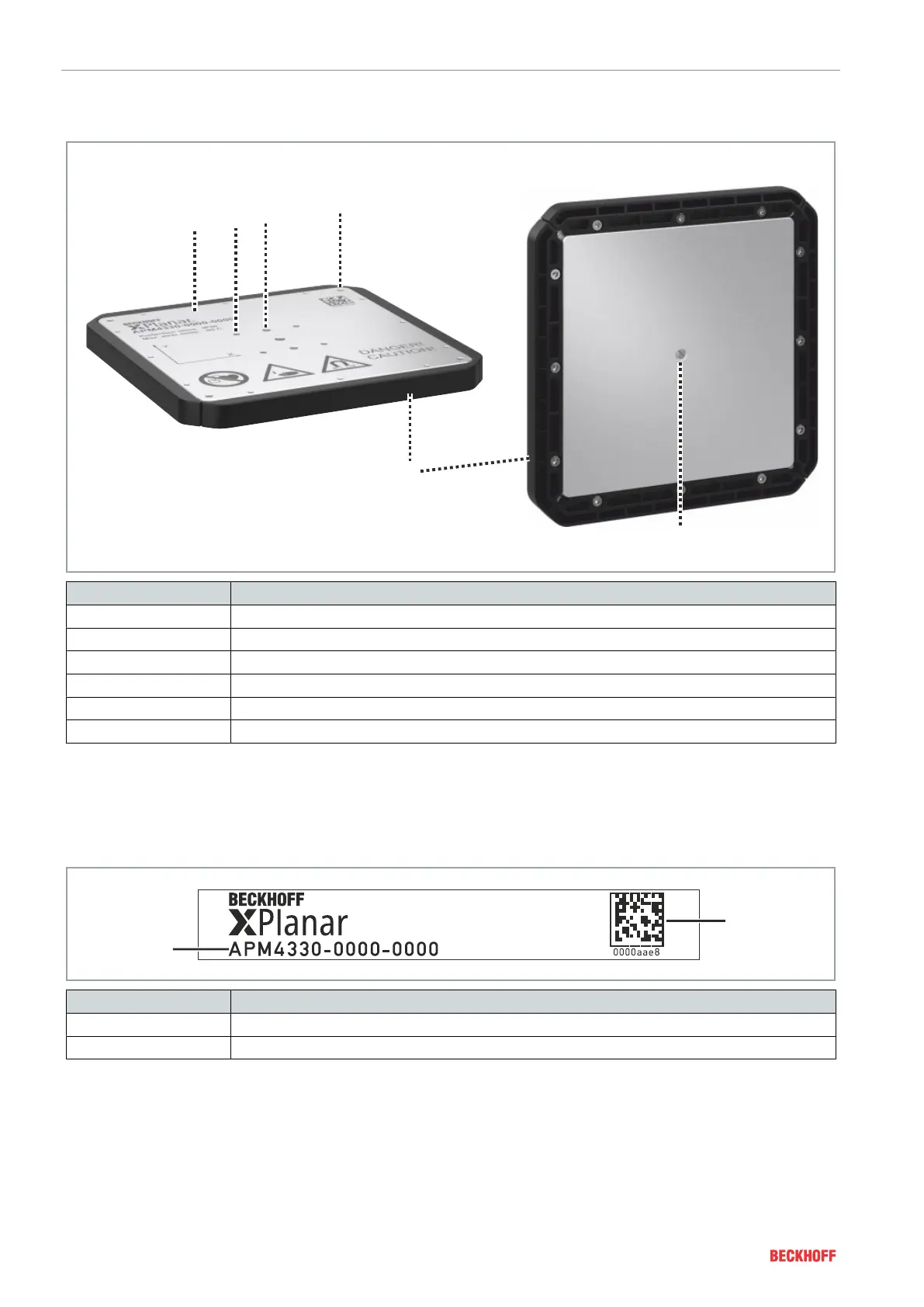

Number Explanation

1 Base body with magnetic section

2 Thread for mounting tools, 4x

3 Locating hole for mounting tools, 2x

4 Thread for mounting tools, 4x

5 Thread for mounting tools, 1x

6 Bumper

For further information on the threads and holes for mounting tools,

please refer to the chapters on "Dimensional drawings", [Page34]

and "Fixing points", [Page68].

3.2.1Name plate

3.2.1

Number Explanation

1 Product designation

2 Data Matrix code with BTN
