Mechanical Installation – Part 2: Mover

─── Version: 1.0XPlanar

9.1.4Mounting tools

Suitable tools can be mounted on the movers depending on the ap-

plication requirements. Beckhoff recommends:

• Using non-magnetic material

• Holding the tool as flat as possible

• Keeping the tool weight down as far as possible

• Not to exceed the outer dimensions of the mover

• Center the weight in the middle of the mover

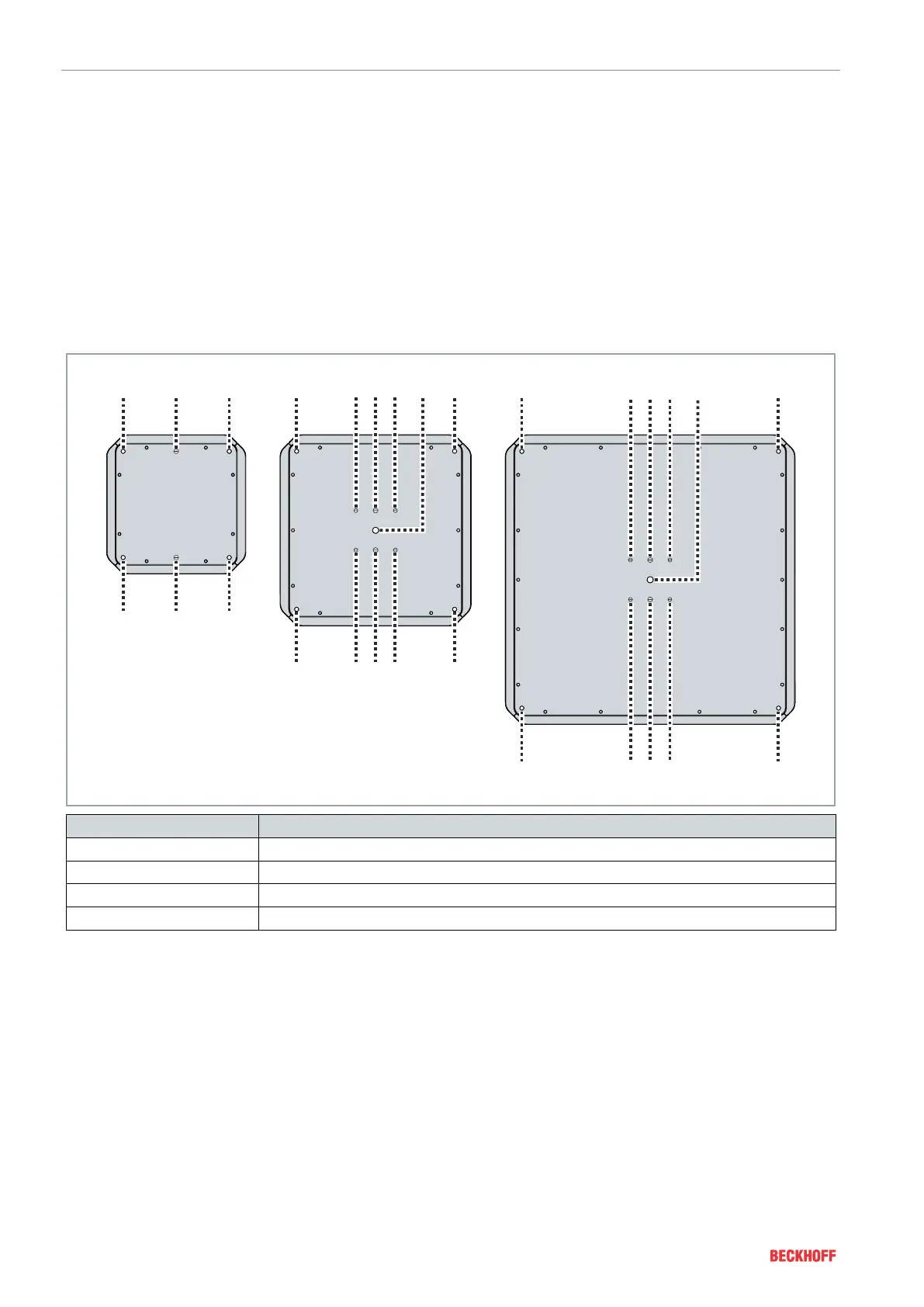

9.1.4.1Fixing points

Depending on the mover version, the following attachment points

are available for attaching the tool:

111 1 1 12 1 1 1 13 3

4 4

11 2

1 11 13

Number Name

1 Threaded hole M4x6

2 Locating hole dia.4H7x4.5

3 Locating hole dia.4H7x8

4 Threaded hole M6
