Mechanical Installation – Part 1: Tiles
46 ─── Version: 1.0XPlanar

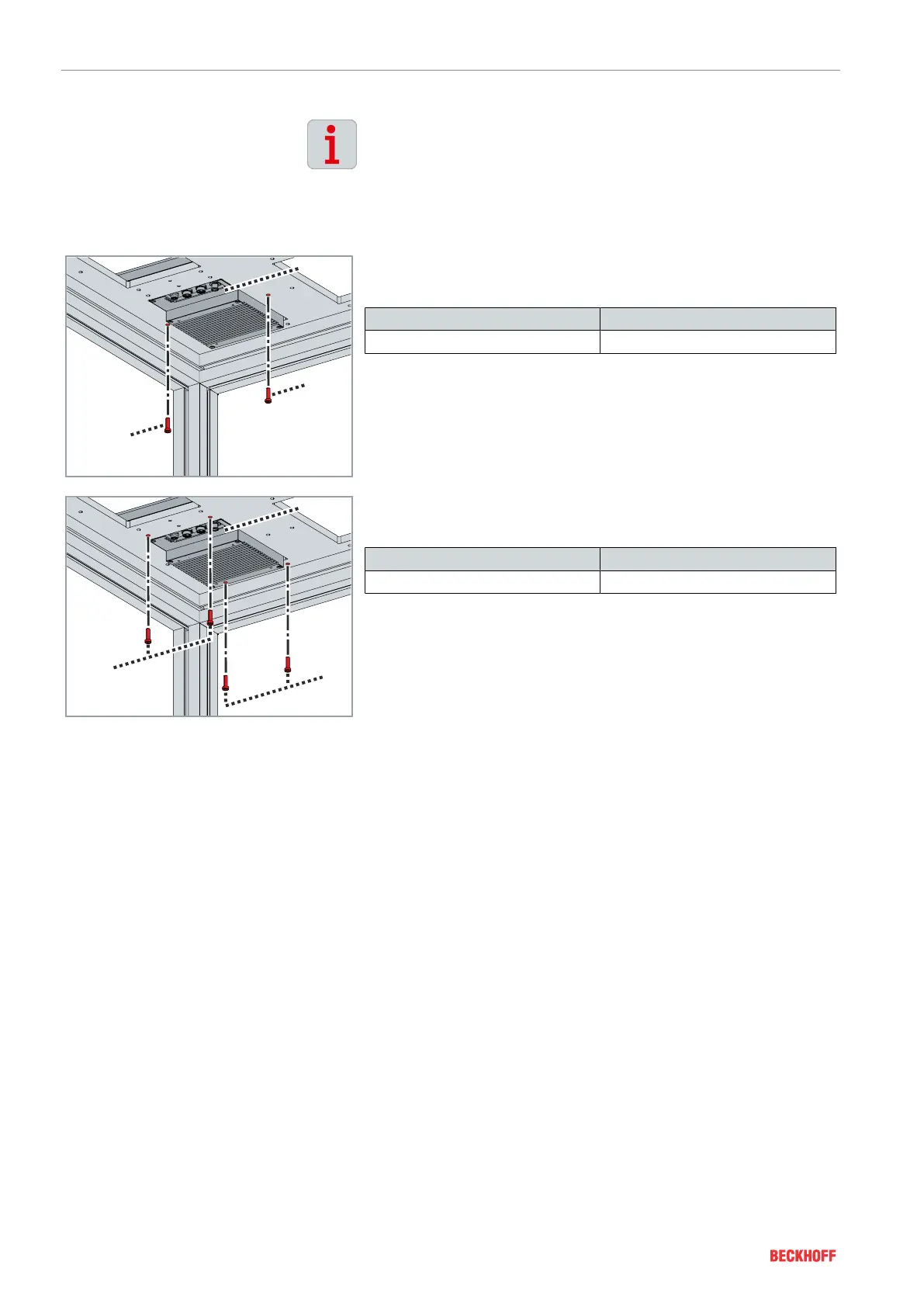

Fastening the tiles depending on position and load
Each tile must be fastened with at least two screws. Depending on
the position and load on the tile, four or six screws can be used for
fastening.
To fasten the tile with six screws, all six mounting holes have to be
used.
With two screws
2
1
2
► Fasten the tile[1] with two screws[2]
► Observe tightening torques
Component Tightening torque [Nm]
M6 screws 7
With four screws
1
2
2
► Fasten the tile[1] with four screws[2]
► Observe tightening torques
Component Tightening torque [Nm]
M6 screws 7
