Beckhoff XPlanar User Manual

Mechanical Installation – Part 1: Tiles
Version: 1.0 ─── 47XPlanar

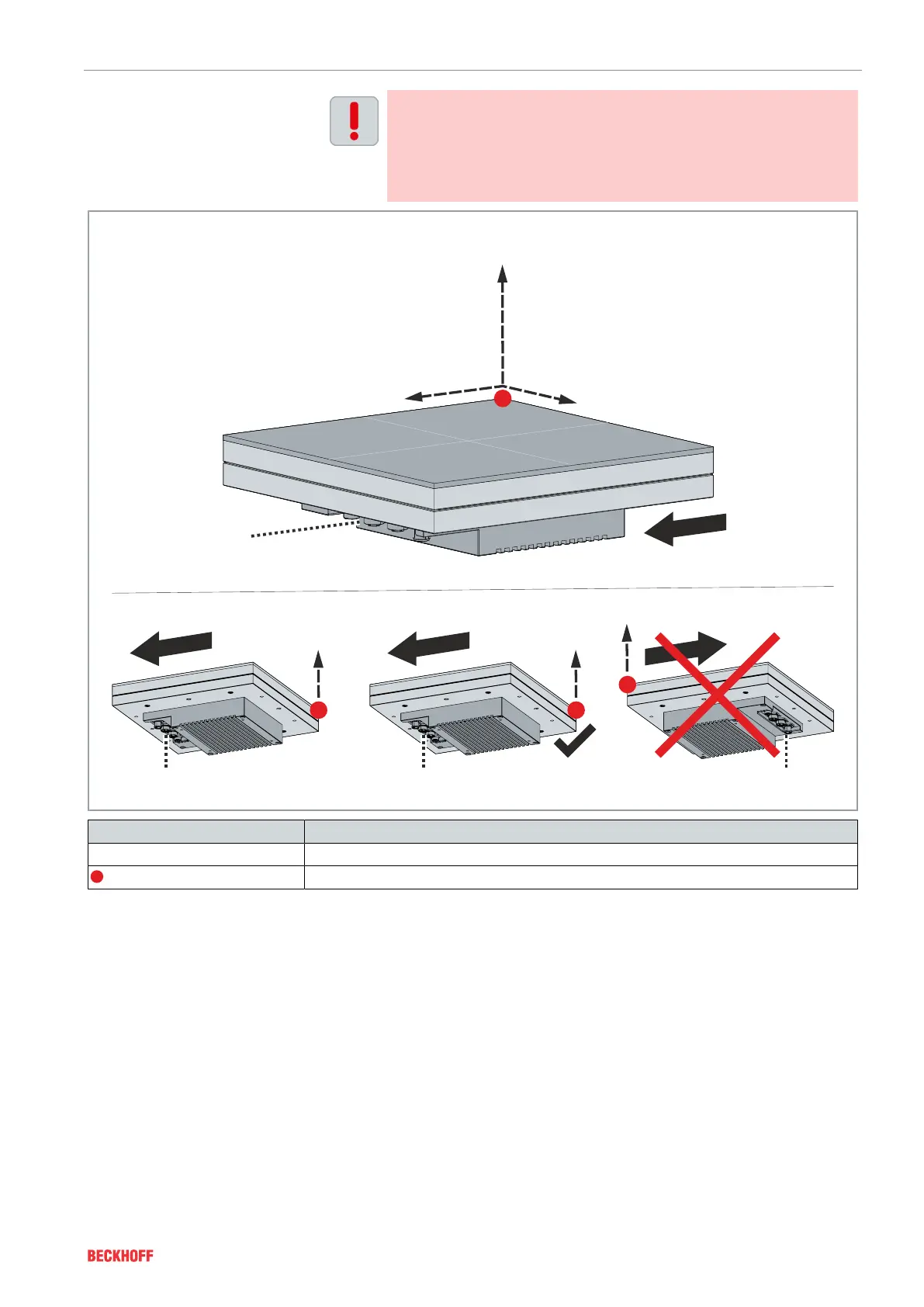

Tile orientation
Insert the tile correctly
All tiles must have the same orientation in order to be able to con-
trol the movers. The point of origin is the same for each tile. Insert
the tile according to the following description.
An incorrectly installed tile leads to problems with the mover control
via the software.
1
X
Y
Z
Z Z
Z
1 1 1
Number Name
1 Connections
Point of origin
Make sure that all tiles have the same orientation. Use the bottom
cover with the connections [1] as a guide for correct alignment of the
tiles.
