Beckhoff XPlanar User Manual

Mechanical Installation – Part 1: Tiles
48 ─── Version: 1.0XPlanar
2
1
2

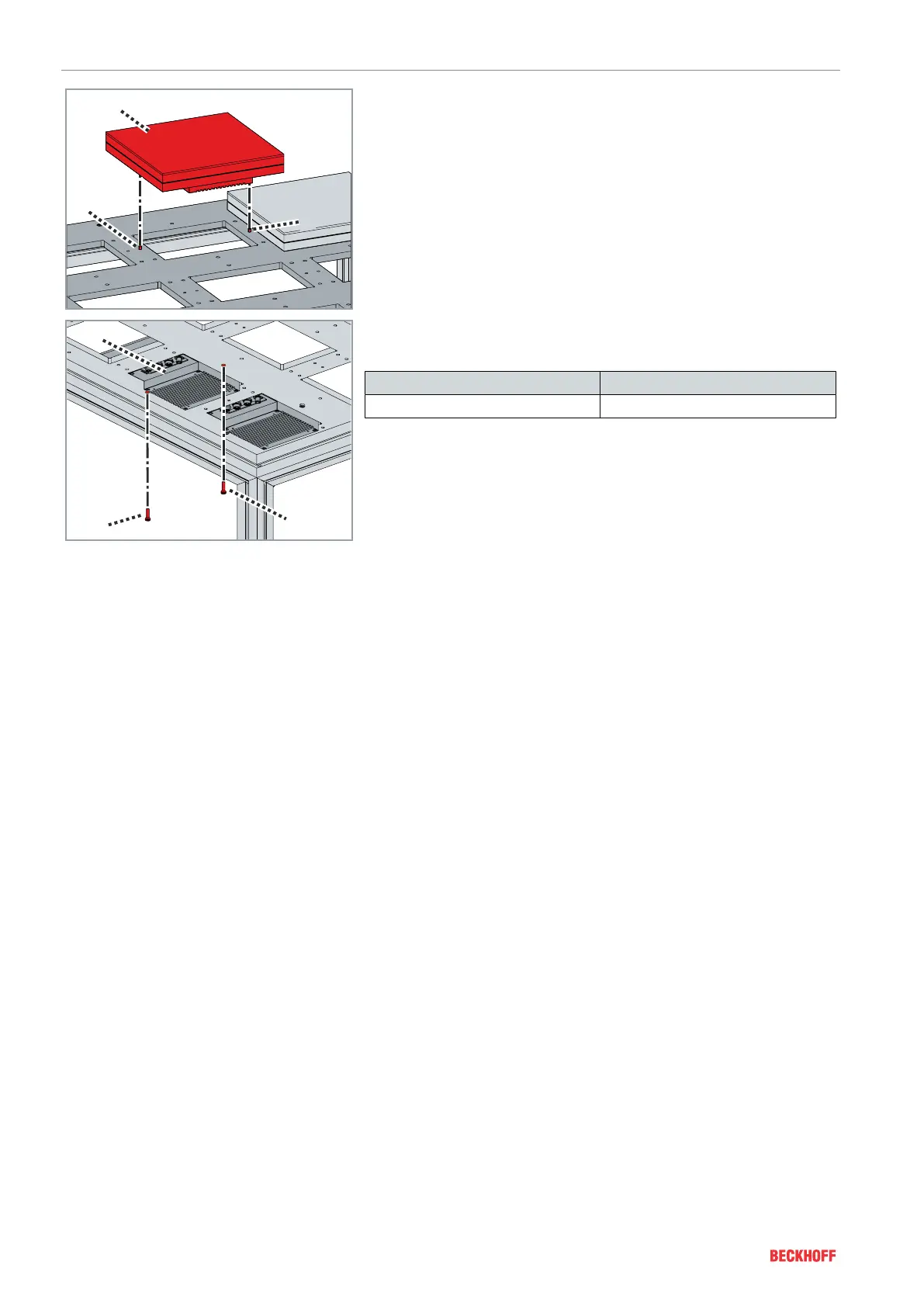

► Position another tile[1] with the hole and the elongated hole on
the locating pins[2]
► Note the tile orientation
2
1
2
► Fasten the additional tile[1] with two, four or six screws[2]
► Observe tightening torques
Component Tightening torque [Nm]
M6 screws 7
► Position further tiles and secure them with screws
