Beckhoff XPlanar User Manual

Mechanical Installation – Part 1: Tiles
Version: 1.0 ─── 49XPlanar
7.2.3.1Mechanical protection
WARNING
Secure the area around the stator surface
Basically, electronic devices are not fail-safe. Movers can be-
come detached from the stator surface in an uncontrolled manner
due to power failure or system control faults. Secure the stator
surface with a mechanical safeguard against uncontrolled de-
tachment of the mover.
Serious or even fatal injuries may result if this is ignored.

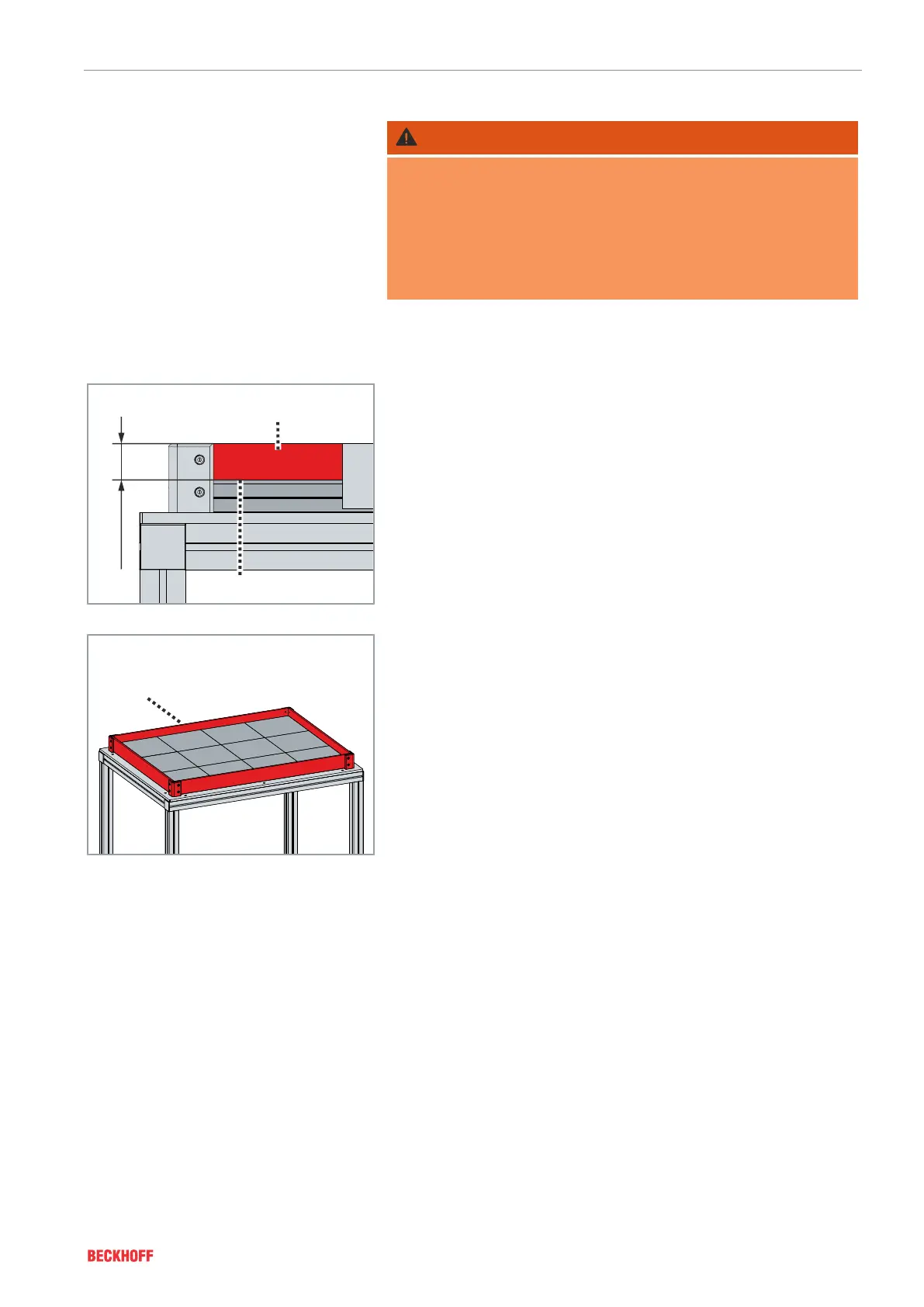

Beckhoff recommends mechanical protection of the stator surface
after all tiles have been fastened to the machine bed.
≥ 61 mm
2
1
The mechanical protection[1] must protrude at least 16 mm beyond
the stator surface[2].
1
► Attach mechanical protection[1]
