Mechanical Installation – Part 2: Mover
74
─── Version: 1.0XPlanar

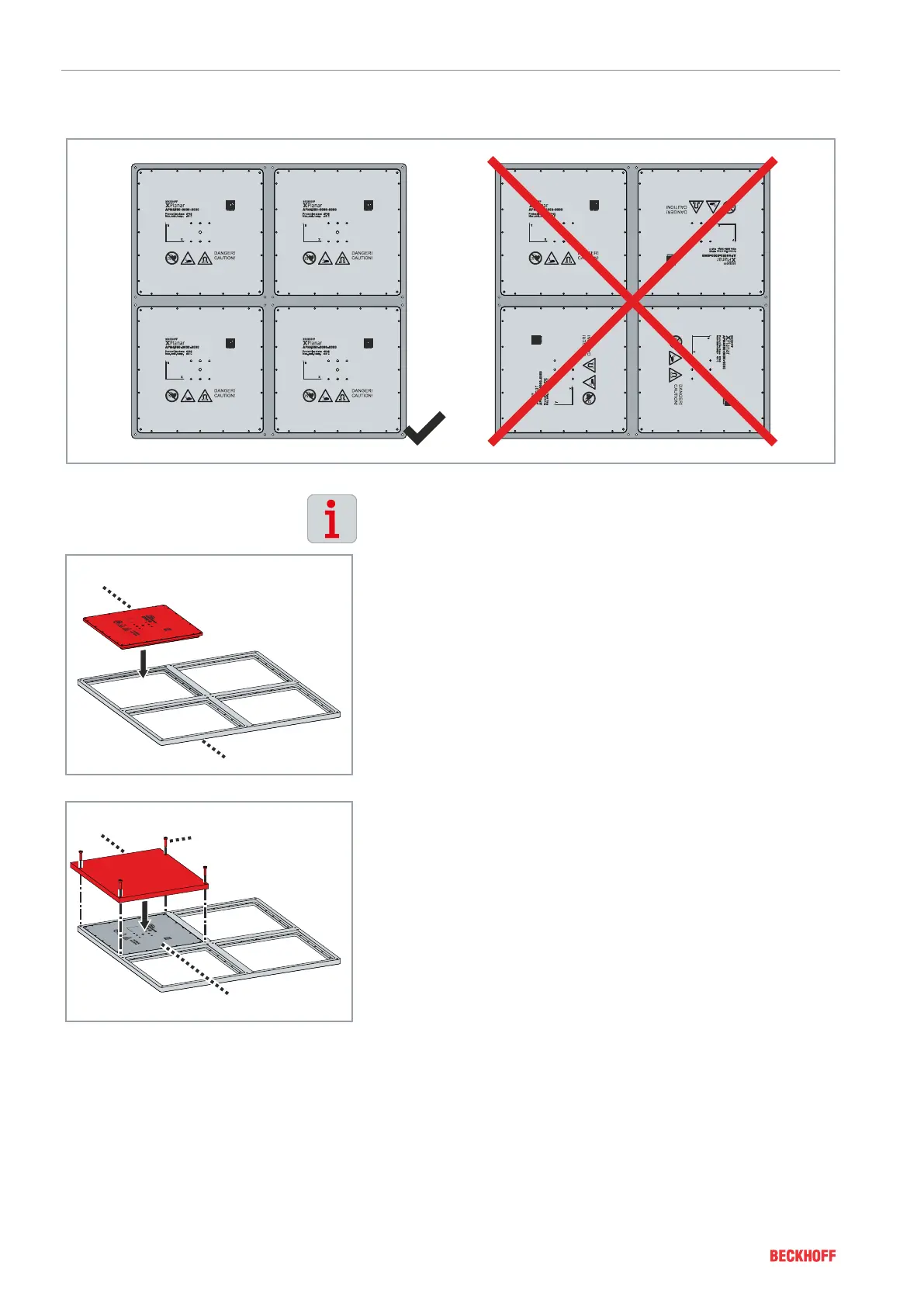

Mover alignment
All movers of the mover coupling must have the same orientation;
different mover orientations are not permitted:
Note the orientation
Before covering the first mover with an assembly aid, note the ori-
entation of the mover in the frame.
2
1
Place the mover[1] into frame[2]
2
3
1
Secure the mover[1] with the assembly aid[2] and four
screws[3] to prevent it from falling out
