Mechanical Installation – Part 2: Mover
Version: 1.0 ───
77XPlanar
WARNING
Do not reach under mover coupling
When placing a mover coupling on the stator surface, do not
reach under the mover coupling with your fingers. Only hold the
mover coupling by the assembly aids.
Failure to do so may result in serious injury to fingers from crush-
ing and to eyes from splinters.
Note the alignment of the mover coupling
When placing the mover coupling, make sure that the XY axes of
the movers correspond to the XY axes of the tiles, see chapter on
"Mover alignment", [Page66].

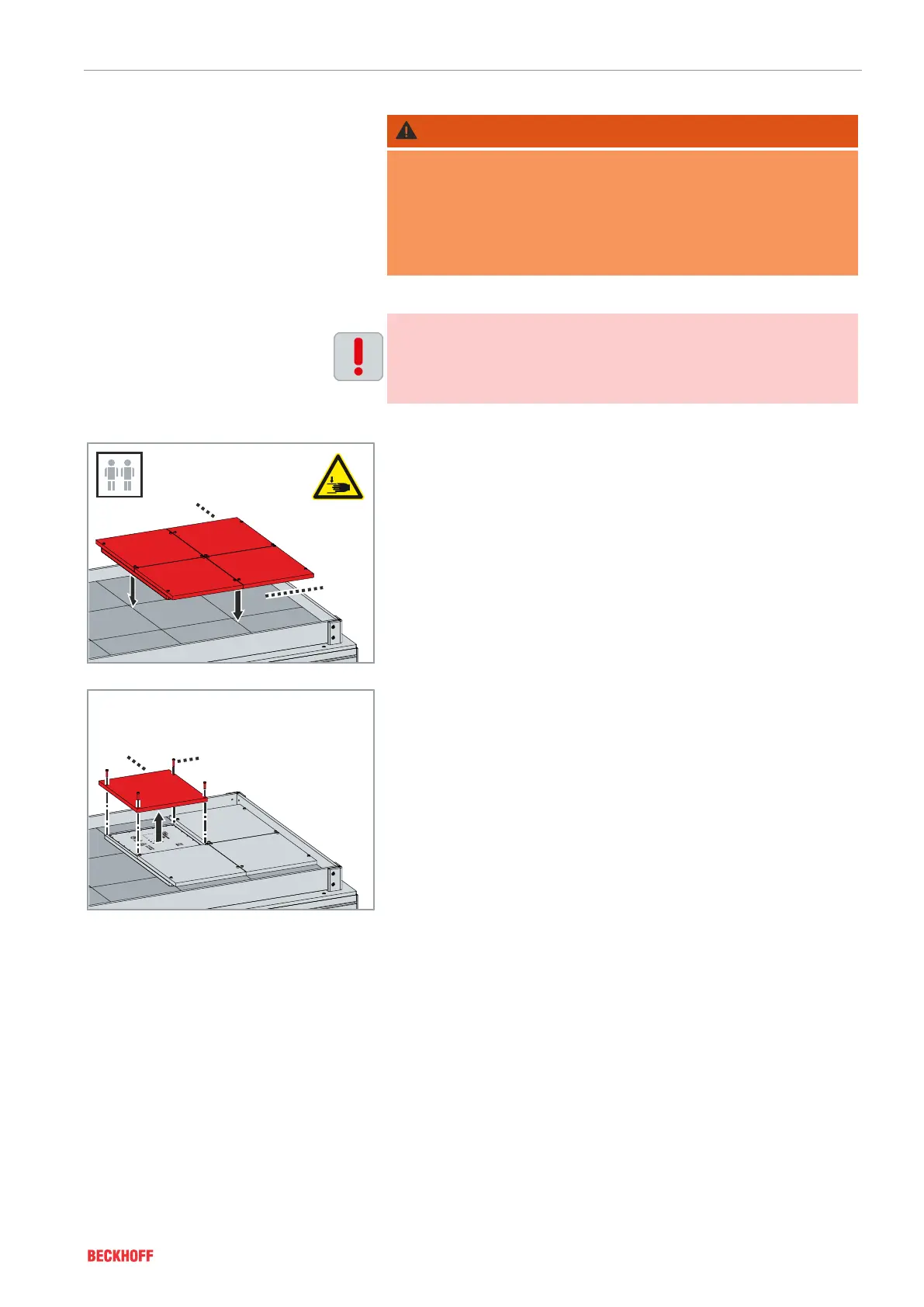

► Place the mover coupling[1] straight on the stator surface[2]
► Make sure that your fingers are not underneath the mover cou-
pling[1] and that the mover coupling has sufficient distance to
other mover couplings
► Remove the four screws[1]
► Remove the assembly aid[2] from the frame
► Remove further screws and assembly aids in this way
