Behringer X32-TP - Display and Monitoring

15 X32 DIGITAL MIXER Preliminary User Manual

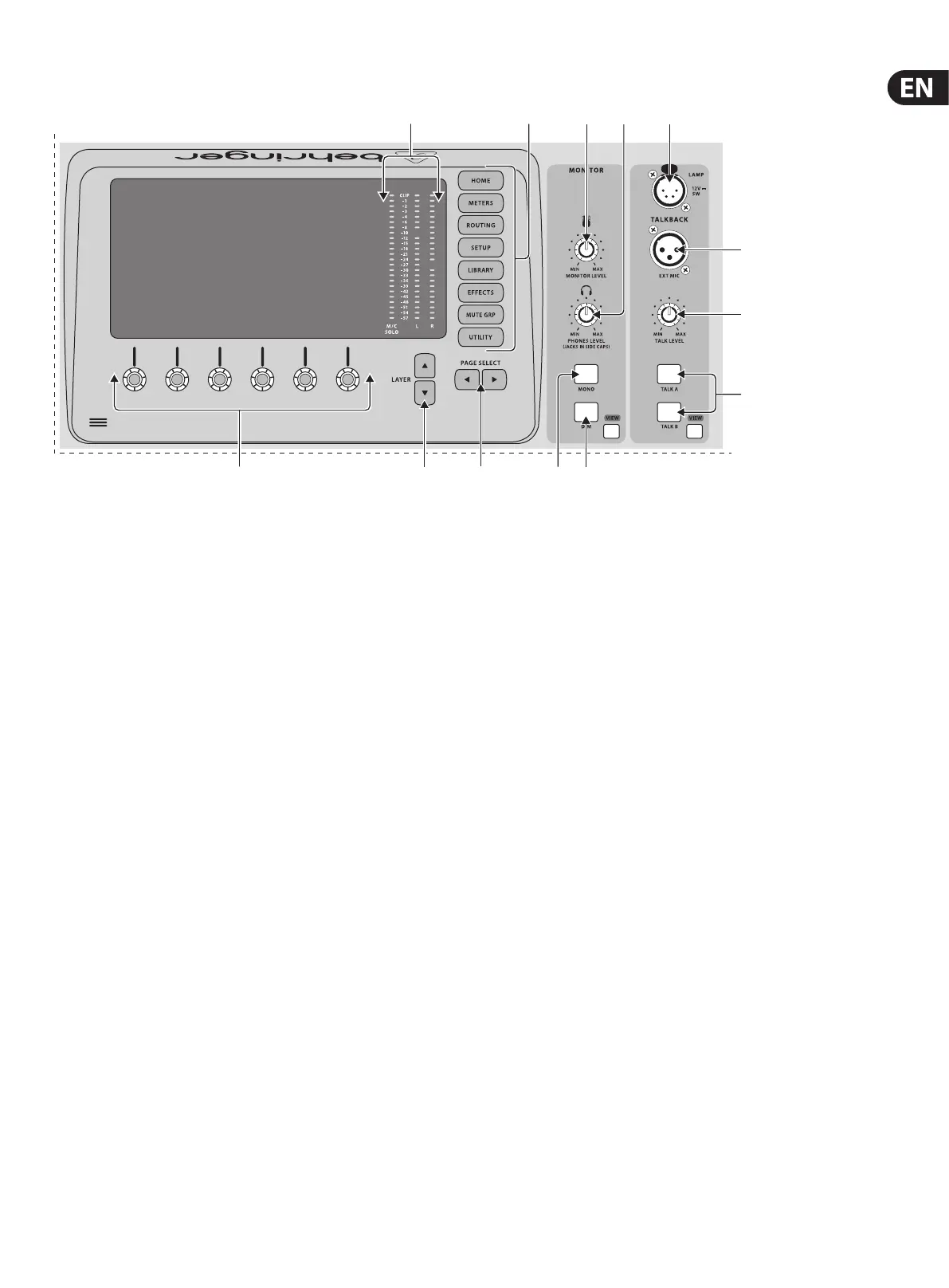

2.3 Display and Monitoring
VIEWVIEW
(16) (23)
(20)
(26)
(25)
(17) (22)
(27)
(21)(19)(18)
(15)
(24)
(15) Push Encoders – These 6 controls adjust the parameters presented at the
bottom of the Main Display. The editable function will show a circular icon
in the display when continuous control is available. The function will show a
broad rectangular icon to indicate that a switch or toggle can be accessed by
pushing the encoder.
(16) Layer Buttons – Some screens in the Main Display have more than
6editable parameters which can be accessed by pressing the Layer Up or
Down buttons.
(17) Page Select Buttons – Use these to scroll through the available screens or
to conrm/decline certain actions.
(18) Main/Solo Meters – The main stereo output level is displayed here along
with the solo level of all channels whose Solo button is active.
(19) Category Select Buttons – Press one of these buttons to jump directly to
the subject you wish to edit or congure.
(20) Monitor Level – Adjust the level of the Monitor outputs with this knob.
(21) Phones Level – Adjust the volume of the headphone outputs,
locatedinside the left and right side caps.
(22) Monitor Mono – Press this button to monitor the audio in mono.
(23) Dim – Press this button to reduce the monitor volume. Press the
View button to adjust the amount of attenuation along with all other
monitoring-related functions.
(24) Lamp Input – Connect a standard 12 V, 5 Watt gooseneck lamp here.
(25) Talkback Input – Connect a talkback mic via standard XLR cable to
thisinput.
(26) Talk Level – Adjust the level of the talkback mic with this knob.
(27) Talk A/B – Select the destination for the talkback mic signal with these
buttons. Press the View button to edit the talkback routing for A and B.
