16 X32 DIGITAL MIXER Preliminary User Manual

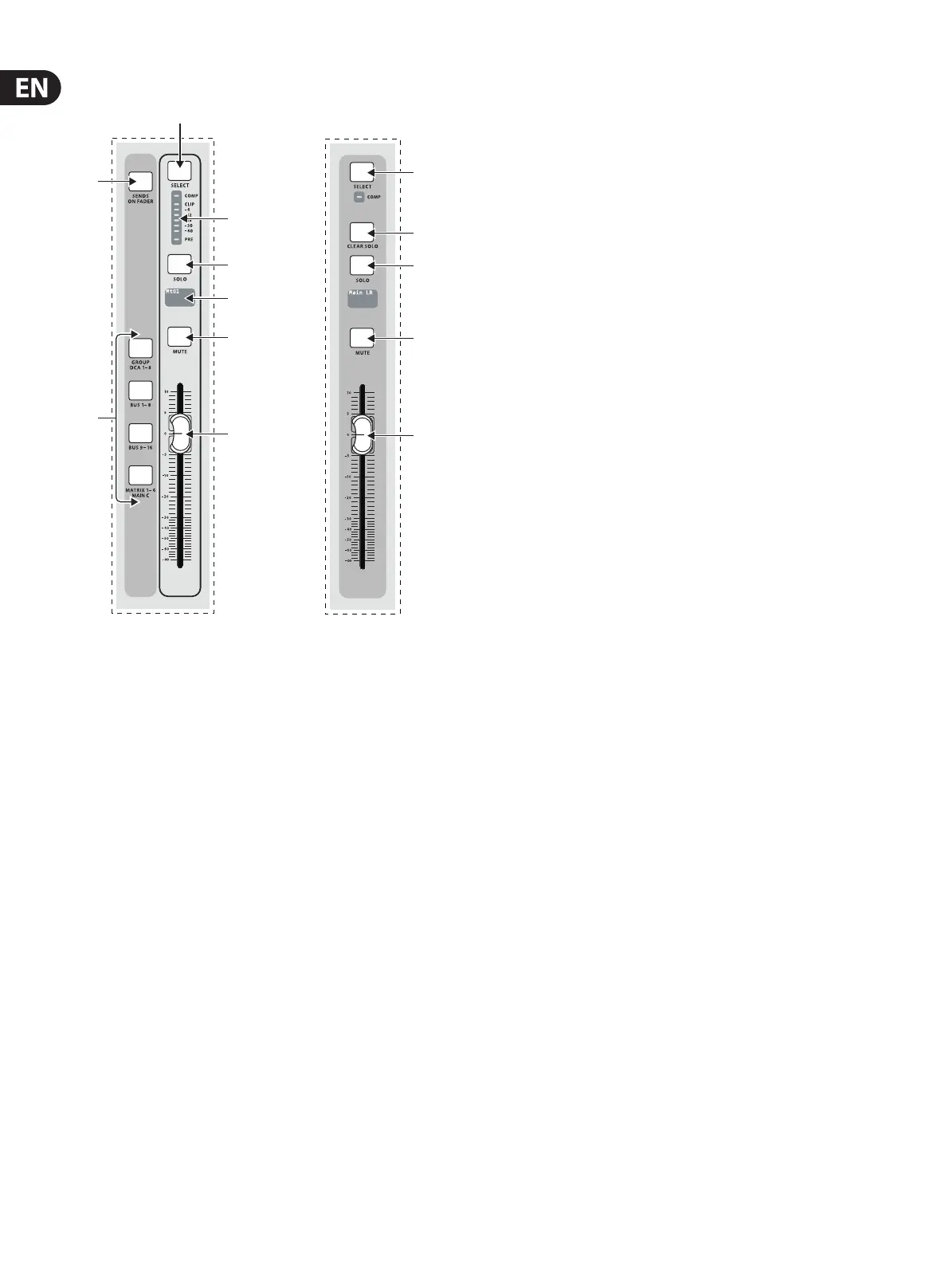

2.4 Group/Bus Banks (28) Group/Bus Layers – Select between DCA groups 1-8, Buses 1-8 or 9-16,
or Matrices 1-6 and the main center bus with these buttons. The currently
active layer will light.
(29) Sends on Faders – Press this button to activate the Sends on Faders
function. See the Topic Guide for more details.
(30) Select – Press this button to select a DCA or bus (depending which layer
isactive) and allow it to be edited by the Channel Strip and Main Display.
(31) Group/Bus Meter – This displays the signal level of the DCA or bus
(depending which layer is active). The Pre LED indicates that the bus is
sourced pre-fader, while the Comp LED indicates that compression is active.
(32) Solo – Press this button to solo the DCA or bus.
(33) Mini Display – Information such as matrix/bus number,
nickname, input source and graphical icon are displayed on this color
LCDscribble strip screen.
(34) Mute – Press this button to mute the DCA or bus.
(35) Fader – Use this to adjust the bus level. The faders will automatically display
the current status as layers and functions are changed.
(36) Main Select – Press this button to select the main bus for editing.
(37) Clear Solo – Press this button to release all sources assigned to the solobus.
(38) Main Solo – Press this button to solo the main bus.
(39) Main Mute – Press this button to mute the main bus.
(40) Main Fader – This fader adjusts the output of the main bus.
(30)
(29)
(31)
(36)
(37)
(38)
(39)
(40)
(32)
(33)
(34)
(35)
(28)
