64 X32 DIGITAL MIXER Preliminary User Manual

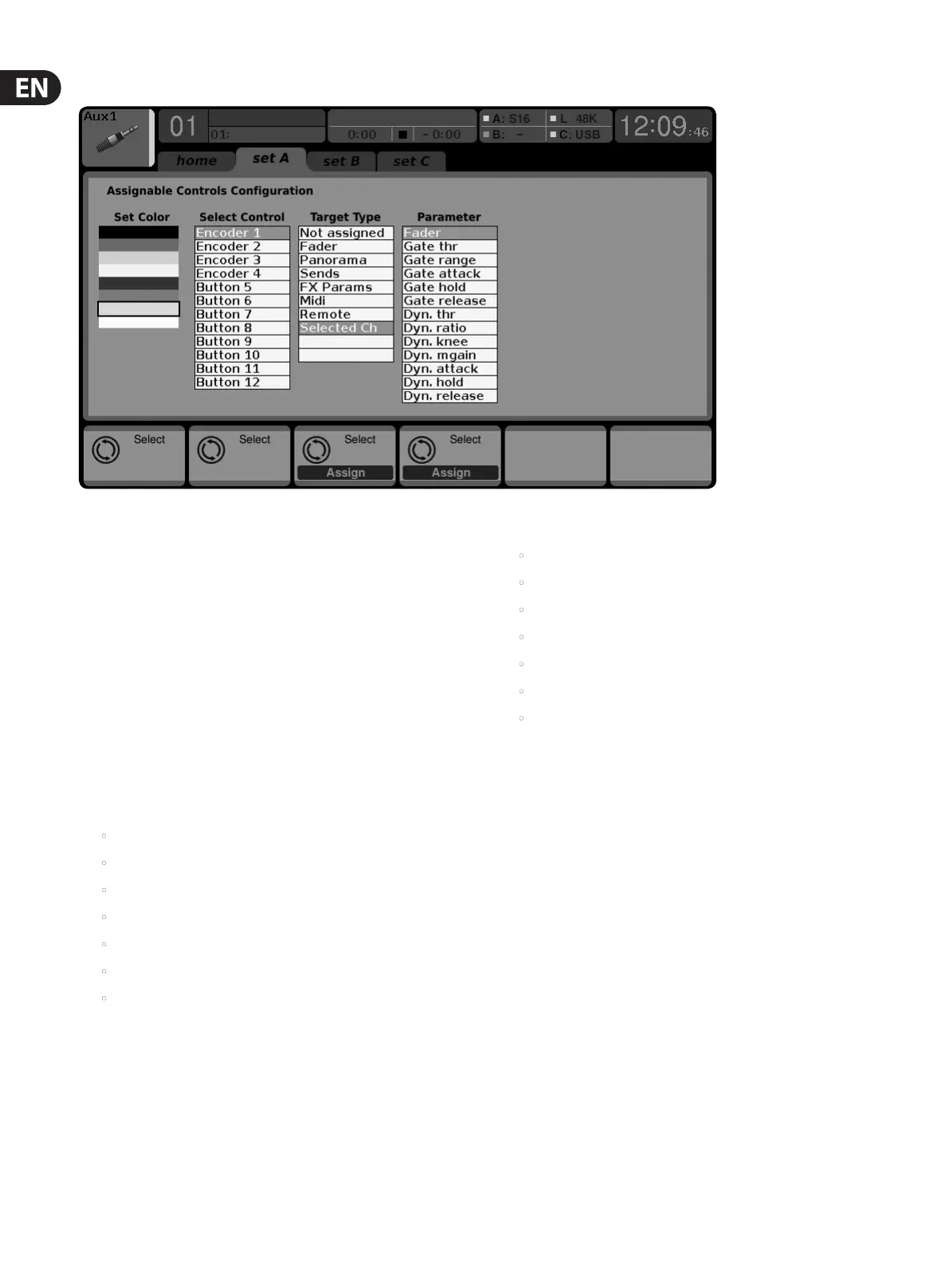

7.12. 2 Assign Screen: Set A Tab
The “Set A” tab allows mapping of specic console parameters to the 8
assignable buttons and 4 assignable rotary encoders. Using this screen, the
user can map the exact parameters that are most useful to them to the desired
controls, in the desired order.
To adjust the various settings on the set A tab, perform the following steps:
1. Adjust the 1st encoder to select the color used for the LCD screens within
that set.
2. Tap the 1st encoder to invert the text and background color.
3. Adjust the 2nd encoder to select which of the 12 assignable controls in
set A you wish to map a parameter to. Choices include encoders 1-4 and
buttons 5-12.
4. Adjust the 3rd encoder to scroll through a list of parameter categories
that the selected assignable control can be mapped to. Choices for the
buttonsinclude:
• Not Assigned
• Jump to Page
• Mute Channel
• Inserts
• Eect button
• MIDI
• Remote
Choices for the encoders include:
• Not Assigned
• Panorama
• Sends
• Dynamics
• FX Parameters
• MIDI
• Remote
5. Tap the 3rd encoder to assign the selected.
6. Adjust the 4th encoder to scroll through a list of parameters that can be
mapped to the currently selected assignable control.
7. Tap the 4th encoder to assign the selected parameter.
8. Adjust the 5th encoder to select from additional parameters that can be
mapped to the assignable controls.
Assign Screen: Set B Tab and Set C tabs
The Assign screen’s “Set B” and “Set C” tabs works as described above, but are
used to congure the set B and set C controls instead of the set A controls.
