BEIER-Electronic USM-RC-3 - Pin Assignment Analog Mode

GB Sound module USM-RC-3
11.10.2021 BEIER-Electronic 15

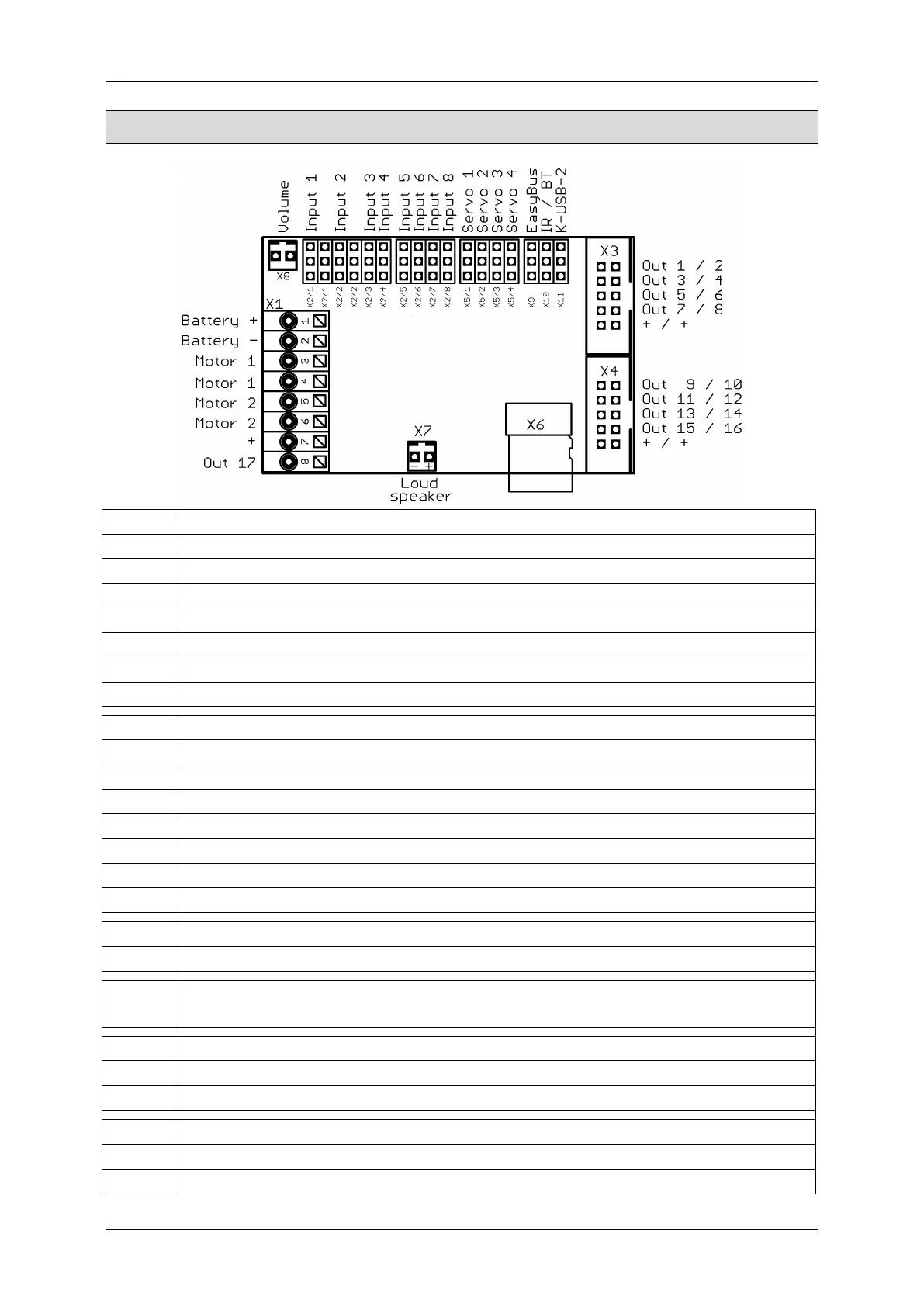

Pin assignment Analog mode
X1/1
Battery + (5 – 15 V)
X1/2
Battery -
X1/3
Motor 1 + (speed)
X1/4
Motor 1 - (speed)
X1/5
Motor 2 + (speed)
X1/6
Motor 2 - (speed)
X1/7
Plus connection for outputs (internally connected to X1/1)
X1/8
Switching output 17 (high current, max. 3.0 A)
X2/1
Input 1
X2/2
Input 2
X2/3
Input 3
X2/4
Input 4
X2/5
Input 5
X2/6
Input 6
X2/7
Input 7
X2/8
Input 8
X3
Switching outputs 1 - 8
X4
Switching outputs 9 - 16
X5/1 –
X5/4
Servo 1 - 4
X6
Micro SD card
X7
Loudspeaker
X8
Volume control with poti
X9
Kraftwerk EasyBus
X10
Connection for infrared diode or Bluetooth transmitter for light modules
X11
Port for data cable K-USB-2
