GB Sound module USM-RC-3
11.10.2021 BEIER-Electronic 75
Configuration - Proportional channels
Assignments and thresholds for proportional channel
For each of the proportional channels # 2 - # 8 (or # 2 - # 16 when using a sum
signal), areas A, B, C and D can be assigned with the possible functions of the
sound module.

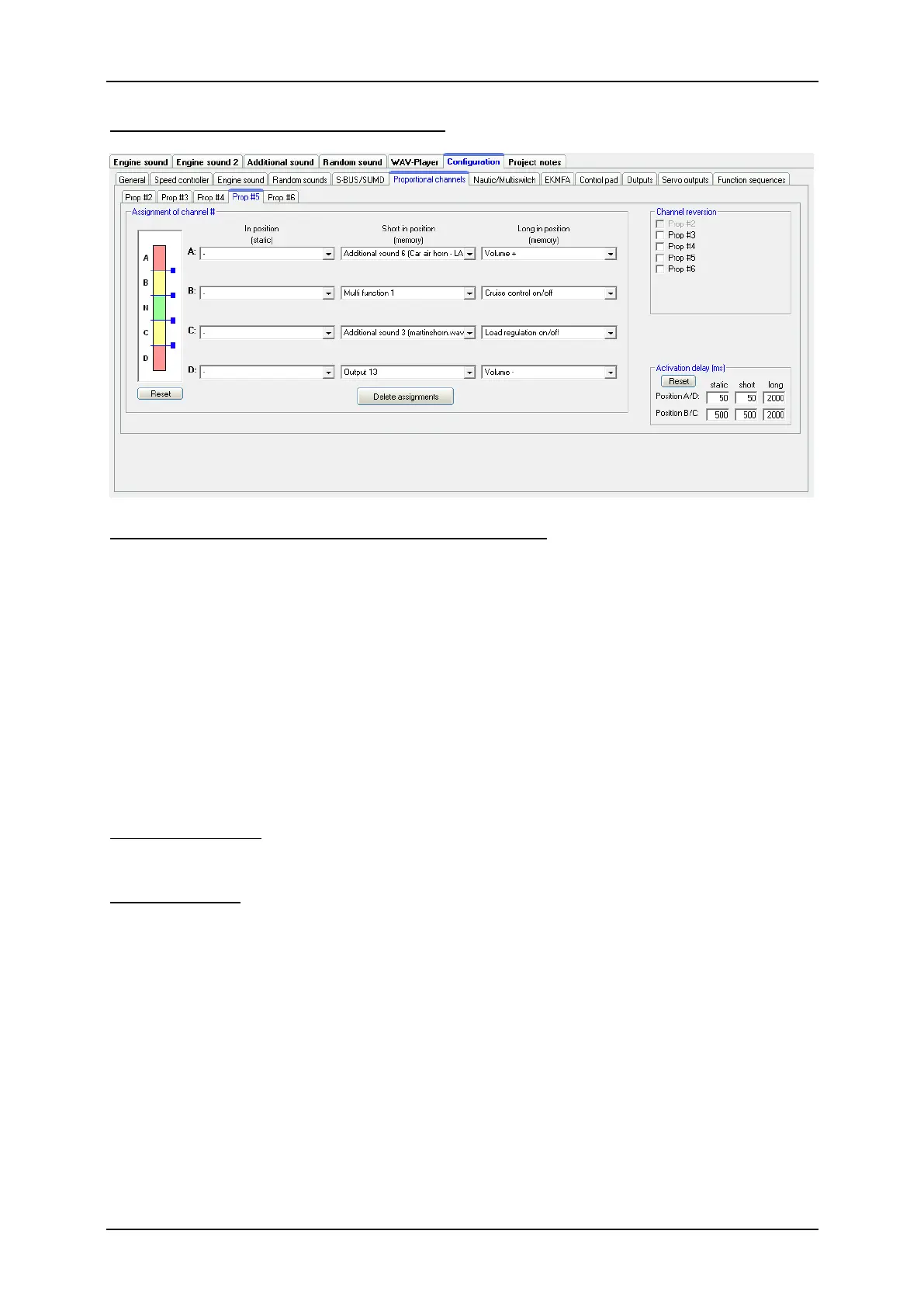

The left picture shows five ranges of a channel. You can define the thresholds for
each range manually (see page 41) by moving the blue sliders up and down. The
number on top shows the value of each threshold.
If the radio control is a 3-position switch, only areas A and D can be assigned
functions, as the intermediate areas B and C cannot be controlled with a switch. At
most, there is still the option of controlling these intermediate areas using a mixer in
the radio.
Channel reversion
The directions of the proportional channels can also be inverted.
Activation delay
Certain times can be set that determine how long the joystick or switch must be in
the positions A/D and B/C in order to activate the corresponding functions. Times
between 10 and 2500 ms are possible.
However, the values defined here are always valid for all proportional channels. It is
not possible to define delays for one channel separately.
The reset button will restore standard values.
