GB Sound module USM-RC-3
92 BEIER-Electronic 11.10.2021
position, the slider must be moved to the left or right of 1.500 ms (motor off) in the
basic position.

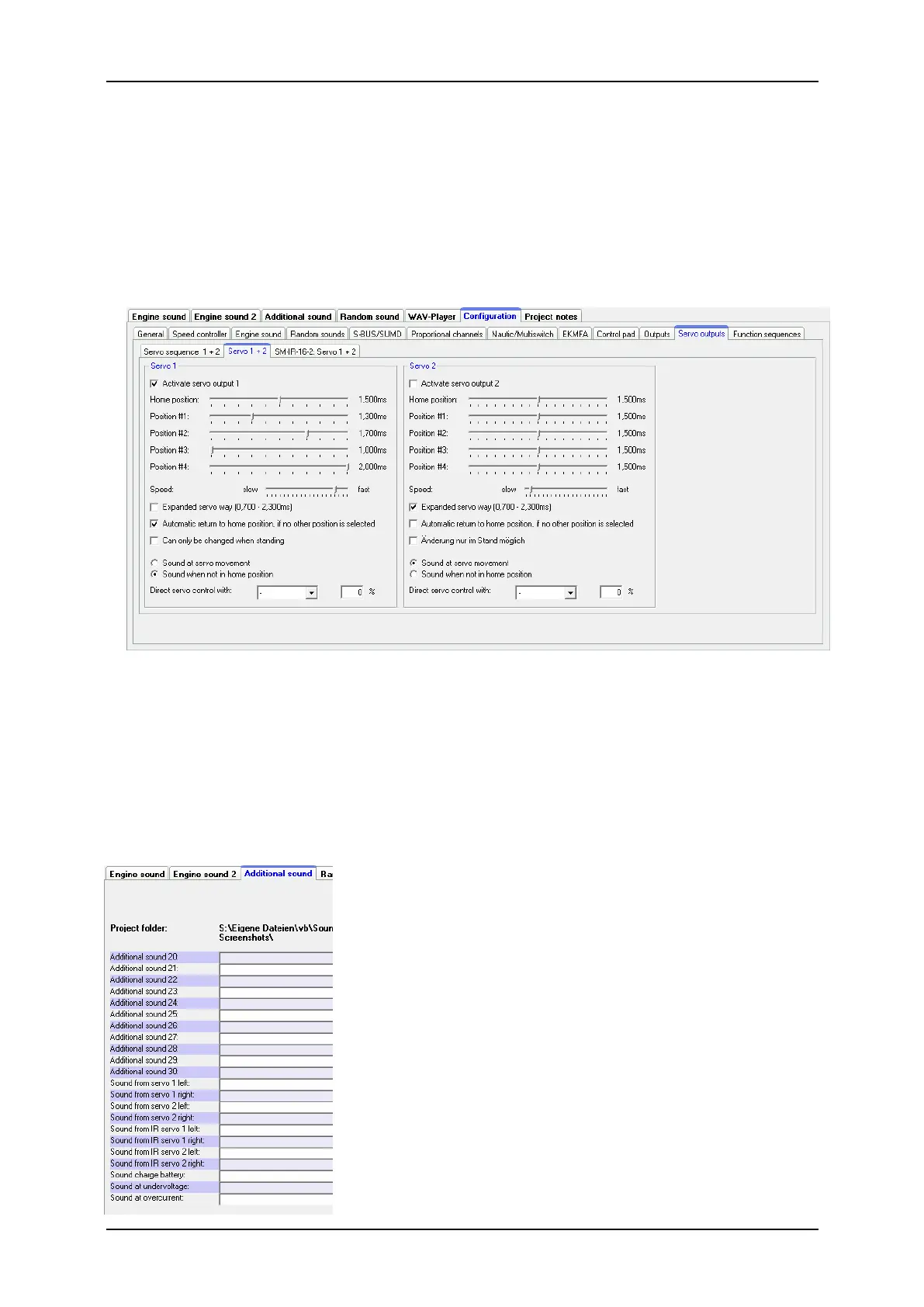

The values in ms along the lines behind the positions #1 - #4 indicate the maximum
engine speed. At the value of 1,000 ms and 2,000 ms, the engine is running forward
or backward at full throttle. At 1.500 ms the motor is off. The positions #1 - #4 can be
used to set different maximum movement speeds and directions of rotation.
For #1 and #2, e.g. a crane arm will turn slowly to the right and left and at positions
#3 and #4 quickly.
With "Speed" the acceleration (slow or fast) can be set from neutral (motor off) to the
positions #1 - #4 (maximum rotation speed).
The motor can be operated proportionally with the direct servo control by a
proportional channel.
If the field "Sound when not in home position" is
activated, the sound will be played as soon as the motor
runs. The motor sound must be set in the sound slots
under “Additional sounds“ and „Sound from Servo 1
left“, „Sound from servo 1 right“, etc.
Finally the motor movement (forward/backward) must
be started. This can be done via a proportional channel
or a nautic/multiswitch. If the servo outputs are
activated, they can be used in the function selection.
