Beijer Electronics BFI-E3 Series User Manual

Beijer Electronics Frequency Inverter BFI-E3 KI00369B 2019-09
www.beijer.se www.beijer.no www.beijer.dk www.beijerelectronics.de www.beijerelectronics.com www.beijerelektronik.com.tr 5 (24)

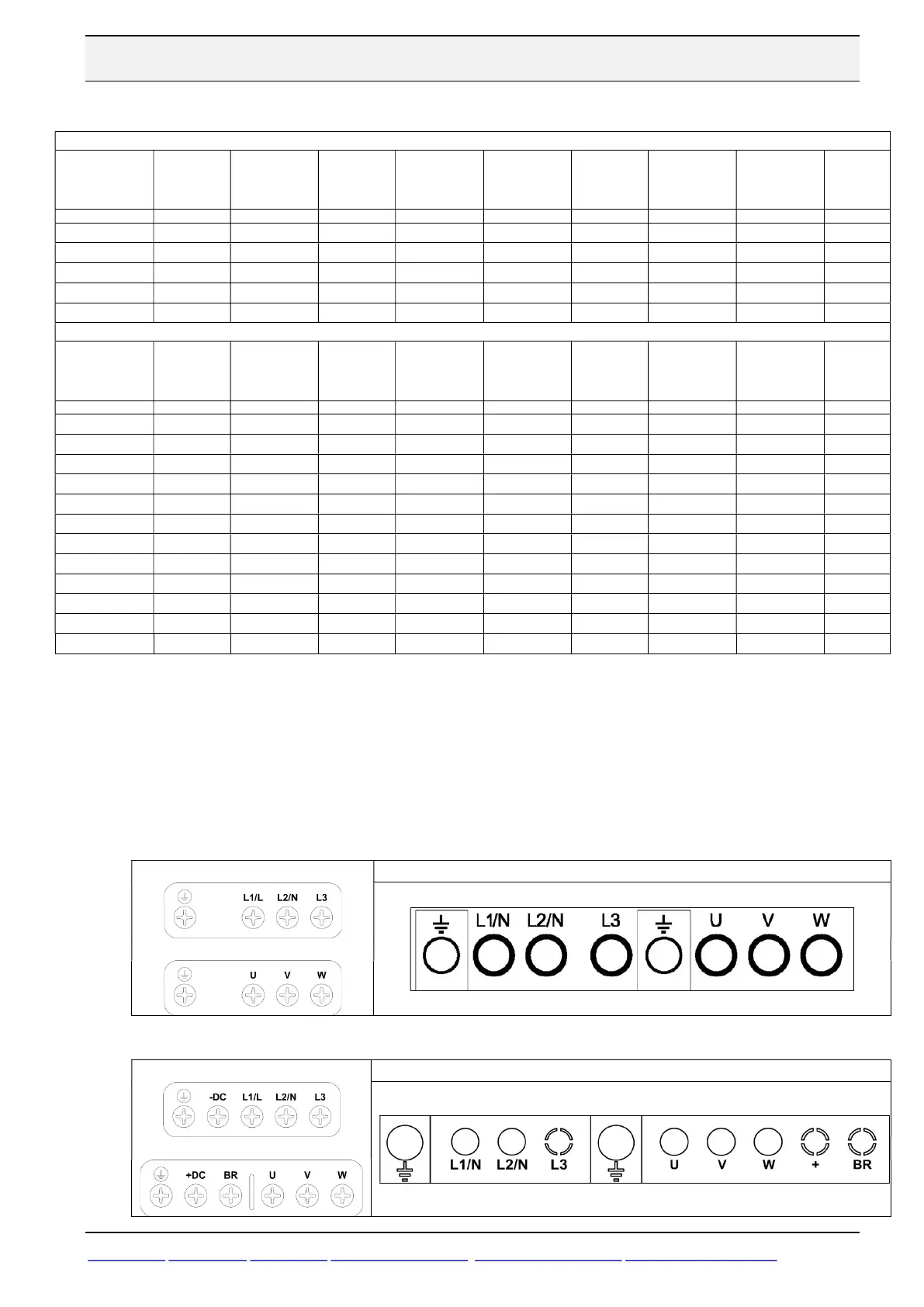

4.3 Fuses, cable dimensions and power loses
200-240V ±10% - Single Phase Input – 3 Phase Output
Output
Power [kW]
BFI-E3
model
Nominal
Input
Current
Fuse or
MCB
(type B)
Supply
Cable Size,
A1 40°C
Supply
Cable Size,
E 30°C
Nominal
Output
Current
Motor
Cable Size,
E 30°C
Max Motor
Cable
Length
Power
losses
Amps Amps mm
2
mm
2
Amps mm
2
m W
0.37 0023 3,7 10 1,5 1,5 2,3 1,5 100 12
0.75 0043 7,5 10 2,5 1,5 4,3 1,5 100 22,5
1.5 0070 12,9 16 2,5 2,5 7,0 1,5 100 50
2.2 0105 19,2 25 6 2,5 10,5 1,5 100 66
4,0 0153 29,2 32 6 4 15,3 1,5 100 120
380-480V ±10% - 3 Phase Input – 3 Phase Output
Output
Power [kW]
BFI-E3
model
Nominal
Input
Current
Fuse or
MCB
(type B)
Supply
Cable Size,
A1 40°C
Supply
Cable Size,
E 30°C
Nominal
Output
Current
Motor
Cable Size,
E 30°C
Max Motor
Cable
Length
Power
losses
Amps Amps mm
2
Amps Amps mm
2
m W
0.75 0022 3,5 6 1.5 1.5 2.2 1.5 100 22,5
1.5 0041 5,6 6 1.5 1.5 4.1 1.5 100 50
2.2 0058 7,5 10 1.5 1.5 5.8 1.5 100 50
4 0095 11,5 16 2.5 1,5 9.5 1.5 100 120
5.5 0140 17,2 25 4 2,5 14 1.5 100 165
7.5 0180 21,2 25 4 2,5 18 2,5 100 225
11 0240 27,5 32 6 4 24 4 100 330
15 0300 34.2 50 16 6 30 6 100 450
18.5 0390 44.1 50 16 6 39 10 100 550
22 0460 51.9 63 25 10 46 16 100 660
30 0610 64 80 35 16 61 16 100 900
37 0720 76 80 35 16 72 16 100 1110
Recommended choice of cable sizes and fuses follows DIN VDE 0100 paragraph 430
Appendix1, motor cable is copper, way of wiring A1 and E is following SS 424 24 24 edition.
A1 means cable/conductors in some kind of duct in a maximum temperature of 40°C. E means
cable/conductors mounted on a ladder. Calculated at 30°C with 9 or several cables(correction
factor 0,78). All recommended sizes of cable sizes and fuses are recommendations. National
laws and recommendations are to be considered.
4.4 Overview power input and output terminals
Size 1 Connections
IP20 IP66 (Nema 4X)
Size 2 & 3 & 4 & 5 Connections
IP20 IP66 (Nema 4X)
