Beijer Electronics BFI-H3 - PTC-Thermistor

Beijer Electronics Frequency Inverter BFI-H3 KI00363D 2021-07
www.beijerelectronics.com 17 (32)
Word 3 and 4 of output/input data can be individually configured as described in table below.
Para-
meter
Name
Default
settng
Function
Explanation
P5-12
Fieldbus
Module
PDO3
0
What to be
read in word 3
0 : P5-12: Motor Current [0,1 A]; P5-08: Torque [ % of rated torque]
1 : Output Power [0,01 kW], 405 = 4.05kW
2 : Digital Input Status. Bit 0 =Digital input 1 status, Bit 1= Digital input 2 status etc
3 : Analog Input 2. Signal Level 0 to 1000 = 0 to 100.0%
4 : Drive Heat-sink Temperature in BFI [°C]
5 : User Register 1. Variable in PLC program or group 9 parameters
6 : User Register 2. Variable in PLC program or group 9 parameters
7 : P0-80 Value
P5-08
Fieldbus
Module
PDO4
1
What to be
read in word 4
P5-14
Fieldbus
Module
PDI3
0
What to be
written in word
3
0 : Not used - No function
1 : User PID Reference - 0 to 1000 = 0% to 100.0%
2 : User Register 3 – Variable in PLC program or group 9 parameters
P5-13
Fieldbus
Module
PDI4
0
What to be
written in word
4
0: User ramp time – In second with two decimal places.
1: User Register 4 – Variable in PLC program or group 9 parameters
Acyclic data is also available for all Ethernet and field buses except for CC-link.
5.8 PTC-thermistor

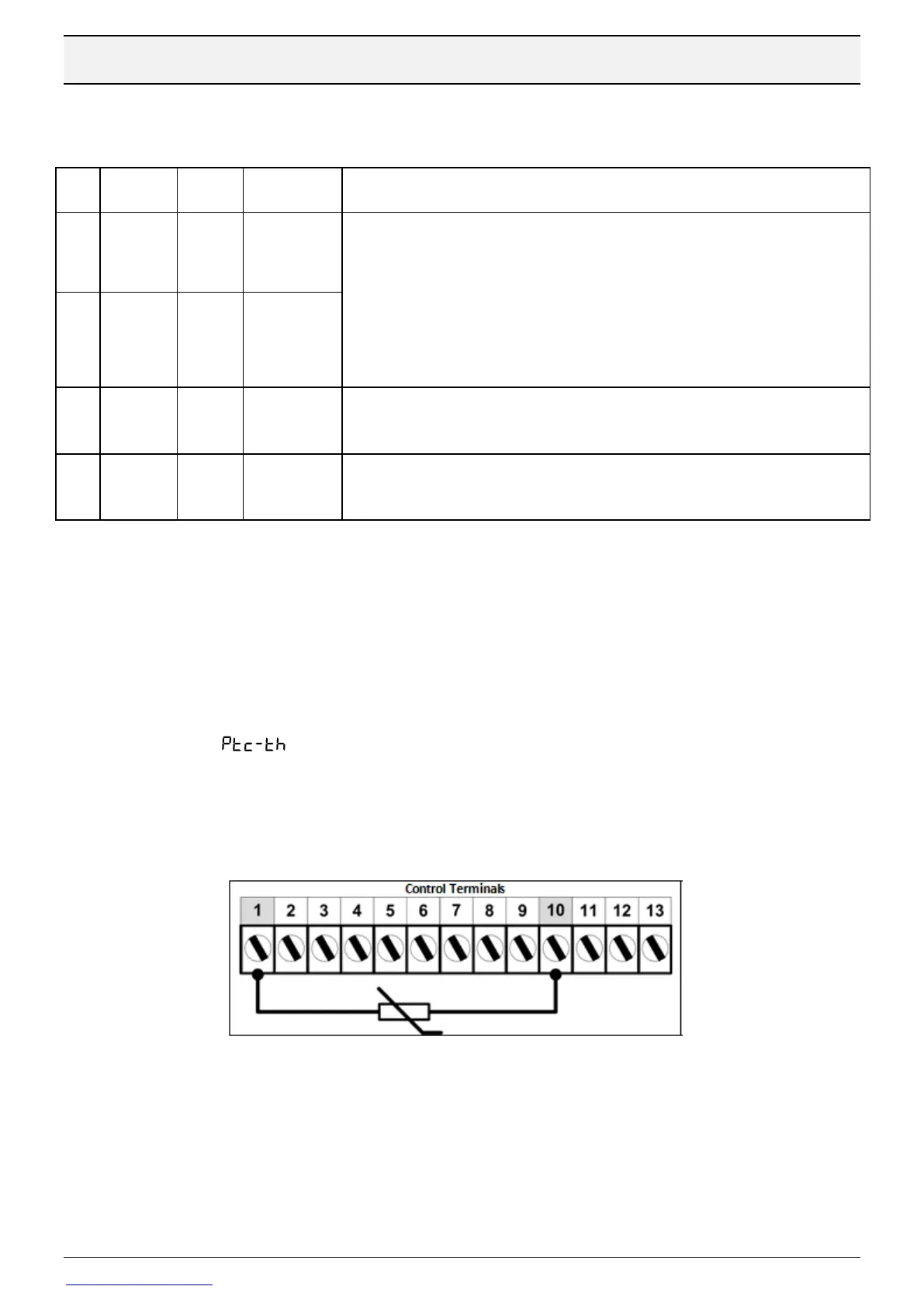

A motor thermistor or thermistor contact can be connected to analog input 2, terminal 10.
Set P1-13 to 5 or 10, make sure functionality for other inputs follows your specification. If not,
adjust functionality manually in parameter group 9. Contact Beijer Electronics for further
assistance.
Put P2-33=2, “ ".
Inverter will trip with open contact or a resistance above 2.5 kOhm. Input is not ATEX approved.
The cable for PTC-wires must be shielded and well separated from the motor cable. Otherwise an
external PTC-relay might be needed due to disturbances.
