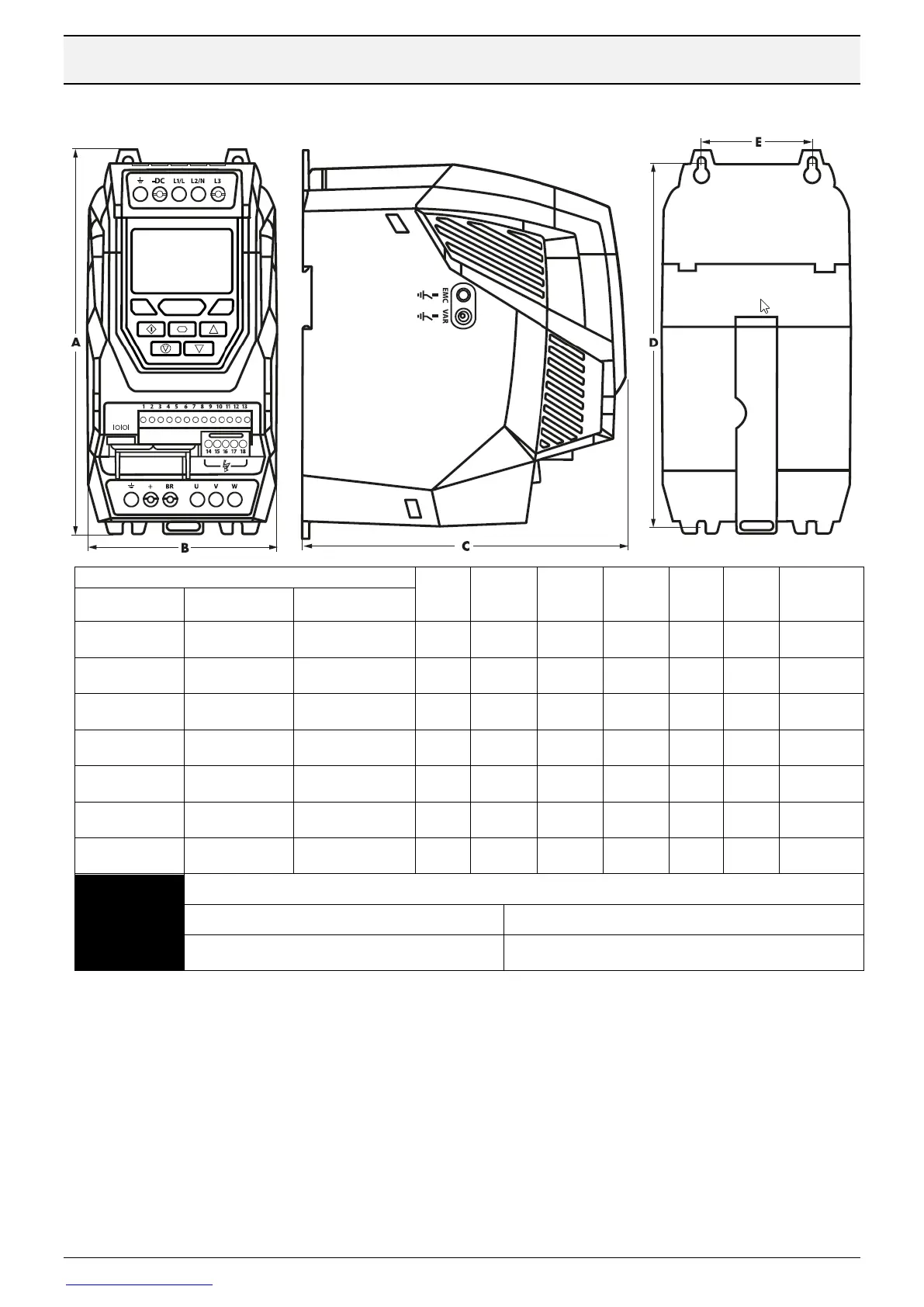

4.3 Physical dimensions IP20
BFI-H3-IP20
Drive
size
A
Height
[mm]
B
Width
[mm]
C
Depth
[mm]
D
[mm]
E
[mm]
Weight
[kg]
1 x 230 V
3 x 230 V
3 x 400 V
0043 – 0105
[0,75–2,2 kW]
0043 – 0105
[0,75–2,2 kW]
0022 – 0140
[0,75- 5,5 kW]
2
221
110
185
209
63
1,8
None
0180 – 0240
[4,0 – 5,5 kW]
0180 – 0300 [7,5
– 15 kW]
3
261
131
205
247
80
3,5
None
0300 – 0460
[7,5 – 11 kW]
0390 – 0460 [18
– 22 kW]
4
418
172
240
400
125
9,2
None
0610 – 0900
[15 - 22 kW]
0610 – 0900
[30 - 45 kW]
5
486
233
260
460
175
18
None
1100 – 1500
[30 - 37 kW]
1100 – 1500
[55 - 75 kW]
6A
614
286
320
578
200
32
None
1800 – 2020
[45 - 55 kW]
1800 – 2020
[90 - 110 kW]
6B
726
330
320
680
225
43
None
None
3700 – 4500
[200 - 250 kW]
8
995
480
477
942
432
130
NOTE
Mounting Bolts: Size 2, 3: 4 x M4; Size 4,5, 6A: 4 x M8; Size 6B: 4 x M10; Size 8: 4 x M12.
Required tightening Torques Control terminals
All Sizes: : 0,5 Nm.
Required tightening Torques Power terminals
Size 2, 3: 1,0 Nm; Size 4: 2 Nm; Size 5: 4 Nm
Size 6A: 12 Nm; Size 6B: 15 Nm; Size 8: 57 Nm
4.4 Low Harmonic Variants
The majority of the Beijer BFI-H3 product range is based on a low harmonic solution using
film capacitor technology to achieve compliance with EN 61000-3-12 without the need for
any additional equipment. This standard specifies limits for harmonic currents for equipment
connected to public low-voltage systems with input current > 16A and <= 75A per phase. It is
important to understand which models from the product range are of the low harmonic
technology.
In short, this means that the low harmonic drives do not require an input choke and should not
have one installed.
Drives outside of the above rated input current, are of standard electrolytic capacitor design
and could benefit from the use of input chokes if further harmonic reduction is required.
