4 Installation
A
CAUTION! In cold climates,
make sure that the drain hose is
as vertical as possible to ensure
swift water drainage. If water
drains too slowly, it can freeze in
the hose and flood the unit.

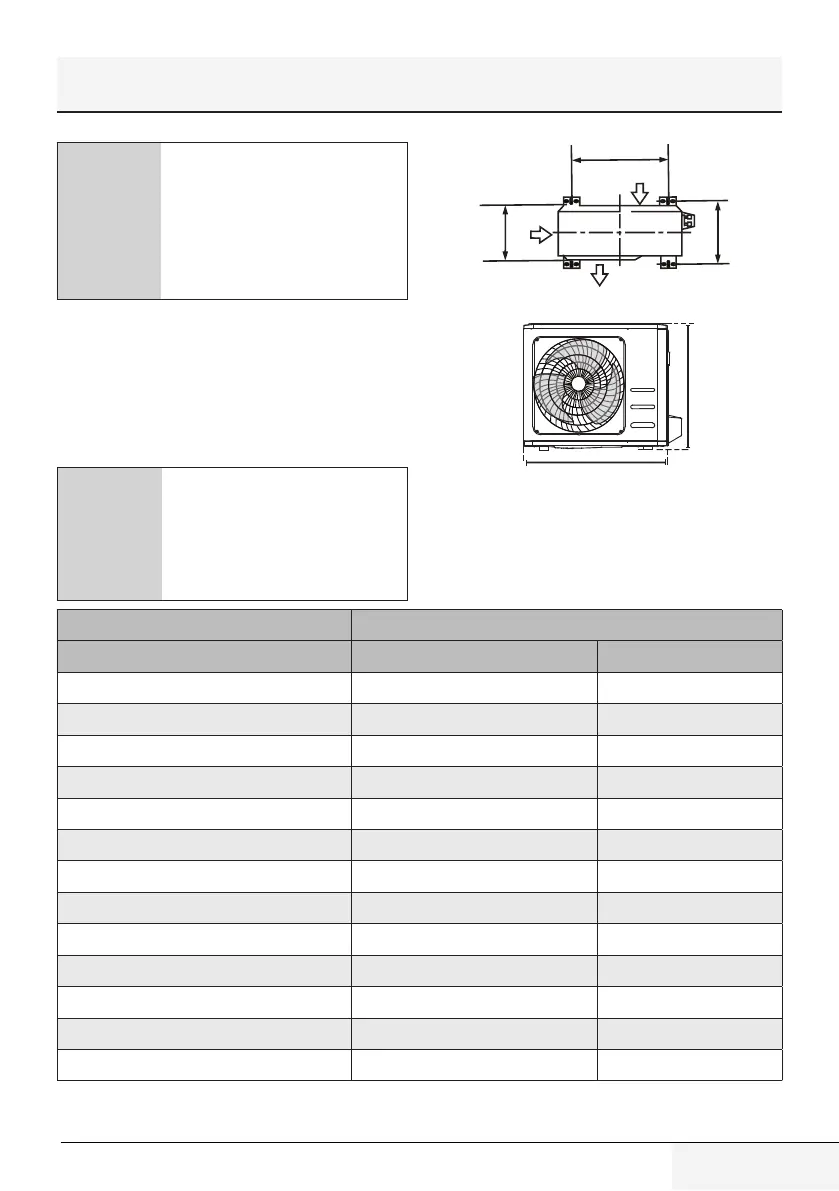

Step 3: Anchor outdoor unit
The outdoor unit can be anchored to the ground or
to a wall-mounted bracket with bolt(M10). Prepare
the installation base of the unit according to the
dimensions below.
C
The following is a list of different
outdoor unit sizes and the
distance between their mounting
feet. Prepare the installation
base of the unit according to the
dimensions below.
A
B
D
Air inlet
Air outlet
Air inlet
W
H
Air inlet
Air inlet
Air outlet
Outdoor Unit Dimensions (mm) Mounting Dimensions
W x H x D Distance A (mm) Distance B (mm)
681x434x285 (26.8”x 17.1”x 11.2”) 460 (18.1”) 292 (11.5”)
700x550x270 (27.5”x 21.6”x 10.6”) 450 (17.7”) 260 (10.2”)
700x550x275 (27.5”x 21.6”x 10.8”) 450 (17.7”) 260 (10.2”)
720x495x270 (28.3”x 19.5”x 10.6”) 452 (17.8”) 255 (10.0”)
728x555x300 (28.7”x 21.8”x 11.8”) 452 (17.8”) 302(11.9”)
765x555x303 (30.1”x 21.8”x 11.9”) 452 (17.8”) 286(11.3”)
770x555x300 (30.3”x 21.8”x 11.8”) 487 (19.2”) 298 (11.7”)
805x554x330 (31.7”x 21.8”x 12.9”) 511 (20.1”) 317 (12.5”)
800x554x333 (31.5”x 21.8”x 13.1”) 514 (20.2”) 340 (13.4”)
845x702x363 (33.3”x 27.6”x 14.3”) 540 (21.3”) 350 (13.8”)
890x673x342 (35.0”x 26.5”x 13.5”) 663 (26.1”) 354 (13.9”)
946x810x420 (37.2”x 31.9”x 16.5”) 673 (26.5”) 403 (15.9”)
946x810x410 (37.2”x 31.9”x 16.1”) 673 (26.5”) 403 (15.9”)
