VAV – Module NMV-D2M

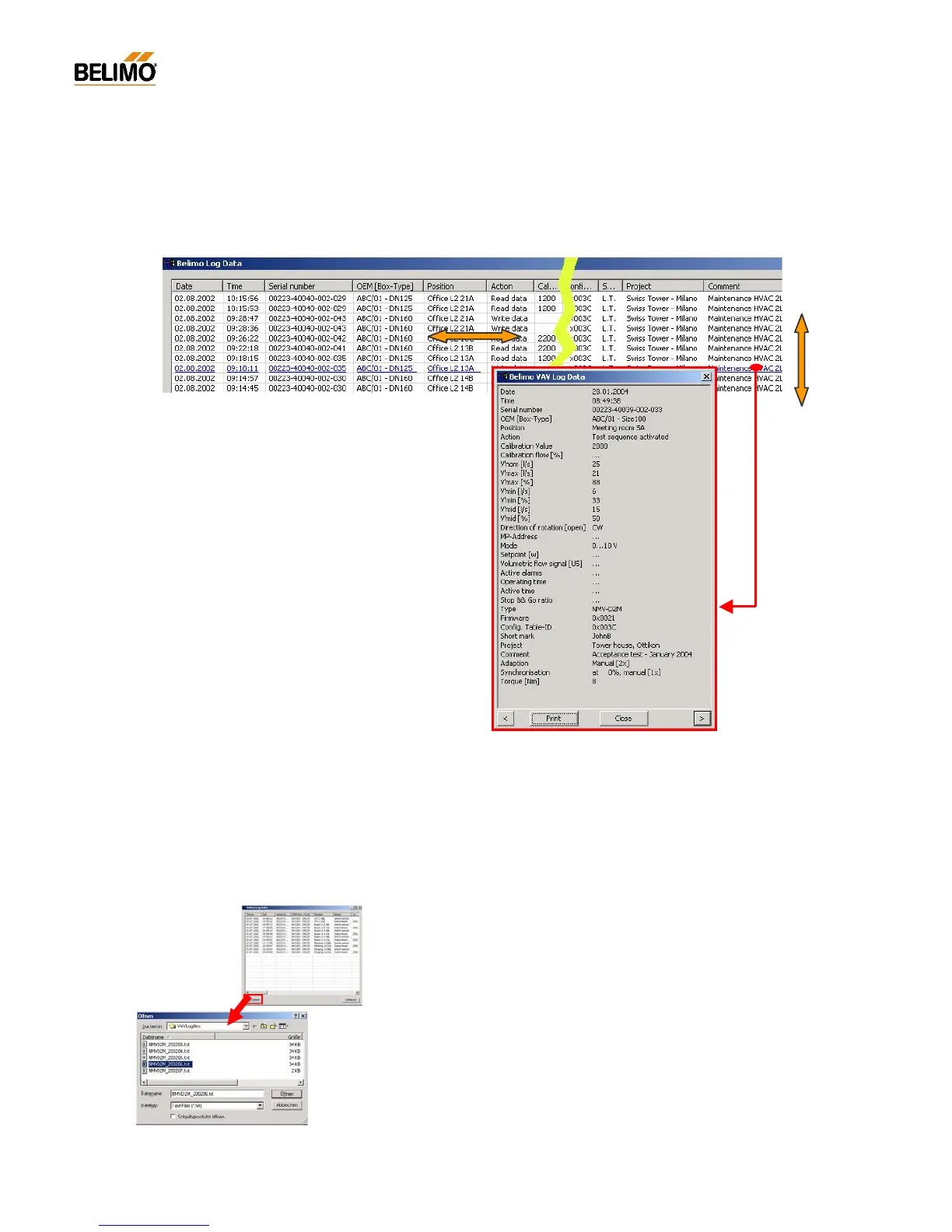

N-A5.2 Log file
The log data is stored in a month file (text format) on the hard disk.
NA5.2.1 Procedure
Data records are selected with the ‘Up’ and ‘Down’ arrow keys or the cur-
sor. The ‘<-‘ and ‘->’ arrow keys or the cursor give access to any columns
that are outside the visible area of the screen.
Print: The data of a VAV-box equipped with an NMV-D2M can be printed
out directly from the display screen mask for documentation purposes.
Display screen mask (zoom function) - change entry:
- Mouse: Click on <’ or >’
- Keyboard: Use <TAB> to focus on ‘<’ and ‘>’ and then use the
<Space> key to page through the entries.
N-A5.2.2 Access to previous months
The data of previous months can be called directly from the Log Data
window. The function is selected with the ‘Log Data’ button.
Display old log file
Entries highlighted by clicking with the mouse or
with the arrow keys can be loaded into a display
screen mask (zoom function) by clicking on or
by pressing the <Space> key.
