VAV – Module NMV-D2M
N-S5.7 Selecting the Test-Sequence
In addition to the preset standard Basic Test-Sequence, a different se-
quence can be selected if necessary. Depending on the functions to be
tested there are Test-Sequences available with different steps and values
of duration.

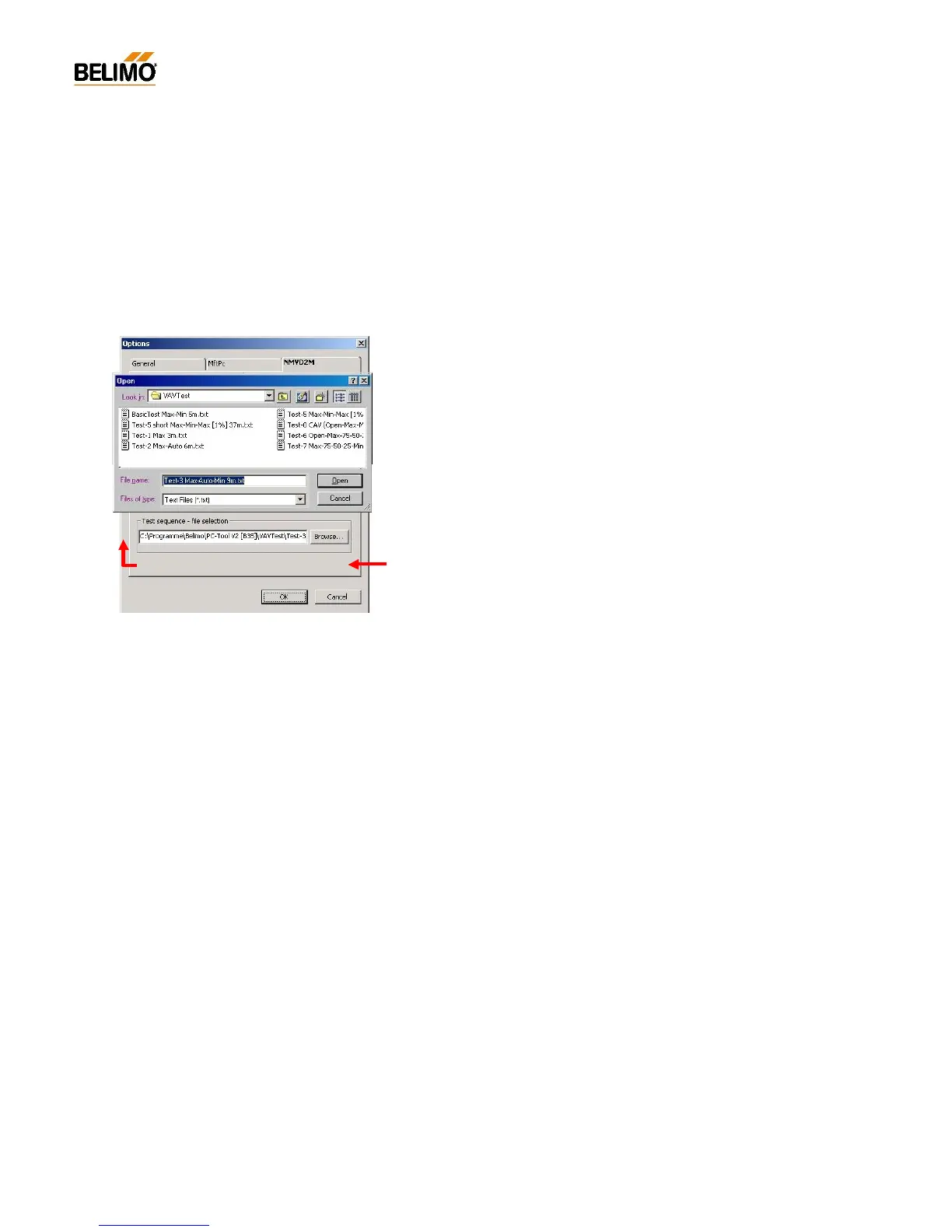

The Test-Sequence settings are made from the ‘EXTRAS... ¦ Options ¦
NMV-D2M’ menu.
N-S5.7.1 Available Test-Sequences:
BasicTest Max-Min 5m.txt
- Function : System check / V’max 120 s / V’min 120 s
- Duration : Check + (2 x 120 s) = ca. 5 minutes
Test-0 CAV (Open-Max-Min-Close) 8m.txt
- Function : System check / Open / V’max / V’min / Close
Op en 90 s / V’ma x & V’min 18 0 s / Close 90 s
- Duration : Check + 90 s + (2 x 180 s) + 90 s = ca. 9 minutes
Test-1 Max 3m.txt
- Function : System check / V’max 180 s
- Duration : Check + (1 x 180 s) = ca. 3…4 minutes
Test-2 Max-Auto 6m.txt
- Function : System check /
V’max 180 s / Auto (reference input w active) 180 s
- Duration : Check + (2 x 180 s) = ca. 6…7 minutes
Test-3 Max-Auto-Min 9m.txt
- Function : System check /
V’max 180 s / Auto (reference input w active) 180 s / V’min 180 s
- Duration : Check + (3 x 180 s) = ca. 9…10 minutes
Test-4 Max-Mid-Min 9m.txt
- Function : System check /
V’max 180 s / V’mid 180 s / V’min 180 s
- Duration : Check + (3 x 180 s) = ca. 9…10 minutes
Test-5 Max-Min-Max [1%] 37m.txt
- Function : System check / V’max 120 s -> (V’max…V’min…V’max)
‘V’ sample with 1% increment: 10 s/step
- Duration : Check + 120 + (199 x 10 s) = ca. 36 minutes
Test-6 Open-Max-75-50-25-Min-Close 22m.txt
- Function : System check / Open / V’max / 75% / 50% / 25% / V’min / Close
180 s/step
- Duration : Check + (7 x 180 s) = ca. 22 minutes
Test-7 Max-75-50-25-Min 3h.txt
- Function : System check / Open / V’max / 75% / 50% / 25% / V’min
Open 120 s / 1800 s/step
- Duration : Check + 120 s + (5 x 30 m) = ca. 3 hours
