14
G+ MIMO Wireless Modem Router
SECTIONSTable of Contents 1 2 3 5 6 7 8 9 104
CONNECTING AND CONFIGURING YOUR MODEM ROUTER
Step 1: Hardware Connections
1.1 Brand-New Setup
Follow these steps if you are not replacing an existing modem� If you are
replacing an existing modem, skip to the next section, “Replacing an
Existing Modem or Modem Router”, starting on page 15�

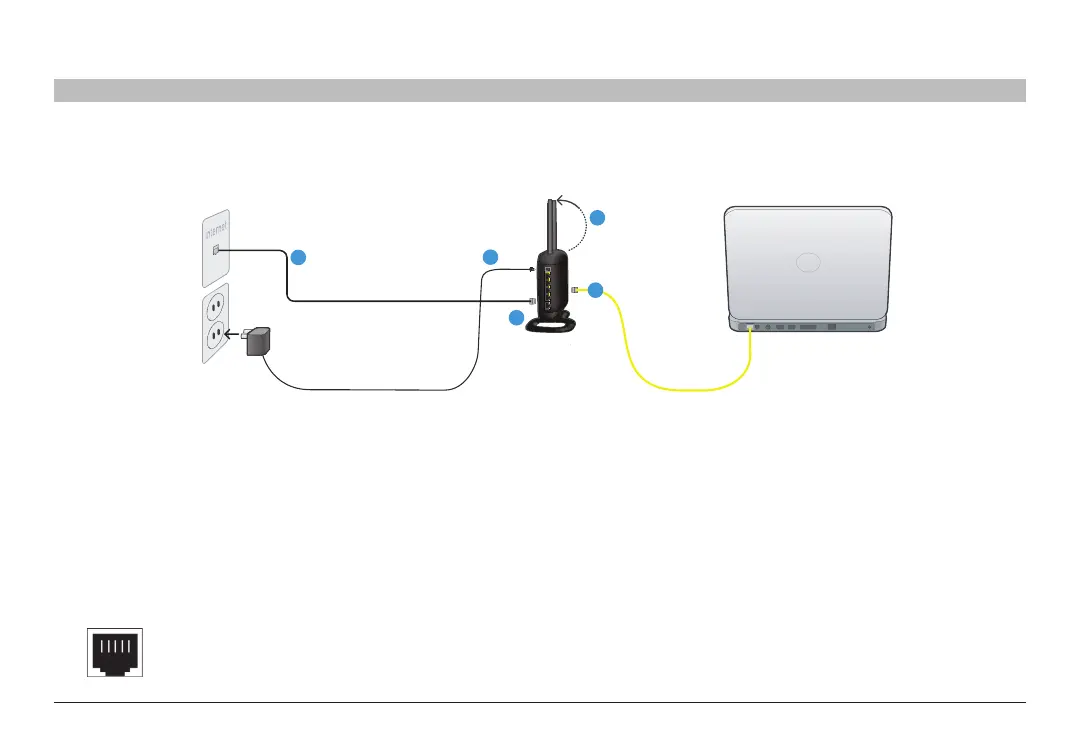

1. Unpack your new Router from the box and place it next to your
computer� Raise the Router’s antennas�
2. Retrieve the yellow RJ45 cable that was included with your Router�
First, connect one end to any yellow port labeled “Wired” on the
back of your Router� Then, connect the other end to the networking
port on the back of your computer�
3. Retrieve the included gray RJ11 phone cord� Connect one end to
the gray port labeled “ADSL line” on the back of your Router� Then
connect the other end to your ADSL connection (either a wall jack
or an ADSL splitter)�
Note: Some ADSL connections require a micro filter� Your ADSL
provider can tell you if you need one� Belkin includes a micro filter
in regions known to use them� You may or may not have received
one in your box�
4. Plug your Router’s power supply into the black port labeled
“Power” on the back of your Router
5. Wait 20 seconds for the Router to start up� Look at the display on
the front of the Router� Make sure the “Wired” and “Router” icons
are lit up in blue� If they are not, recheck your connections�
