CONNECTING AND CONFIGURING YOUR MODEM ROUTER
3. Locate the cable that connects your old modem to the ADSL wall
jack� Unplug it from your old modem and then connect it to the
gray port labeled “ADSL line” on the back of your Router�
4. Plug your Router’s power supply into the black port labeled
“Power” on the back of your Router�
5. Wait 20 seconds for the Router to start up� Look at the display on
the front of the Router� Make sure the “Wired” and “Router” icons
are lit in green� If they are not, recheck your connections�
1.2ReplacinganExistingModemorModemRouter
Follow these steps if you currently have a modem or a modem router
that you will be replacing with your new Router�
Important: Please unplug the power adapter of your old modem from
your wall outlet first.

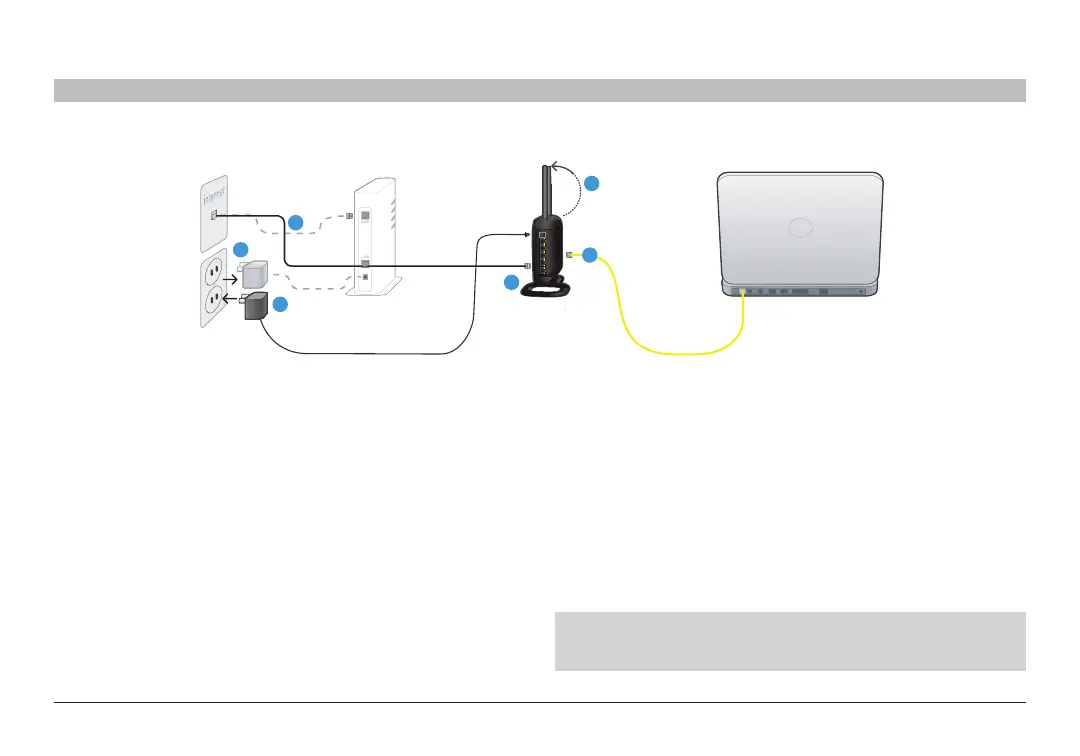

1. Unpack your new Router from the box and place it next to your old
modem� Raise the Router’s antennas� Unplug your old modem’s
power cord�
2. Locate the cable that connects your old modem to your computer�
Unplug that cable from your old modem, and plug it into any yellow
port labeled “Wired” on the back of your new Router�
IMPORTANT: Run the Setup Assistant from the computer that is
directly connected to the Router from Step 1�1B�
2
1
5
3
1
4
LA
N
ADSL

Belkin G+MIMO Specifications

General

Frequency Band	2.4 GHz
Antenna Type	Internal
Data Rate	54 Mbps
Wireless Standard	802.11g
Security	WEP, WPA, WPA2
Wireless Speed	54 Mbps
Ports	4 x 10/100 Mbps LAN, 1 x 10/100 Mbps WAN
