24
When the work is completed and during work breaks, the fencing 8 should totally close
the cutter block.

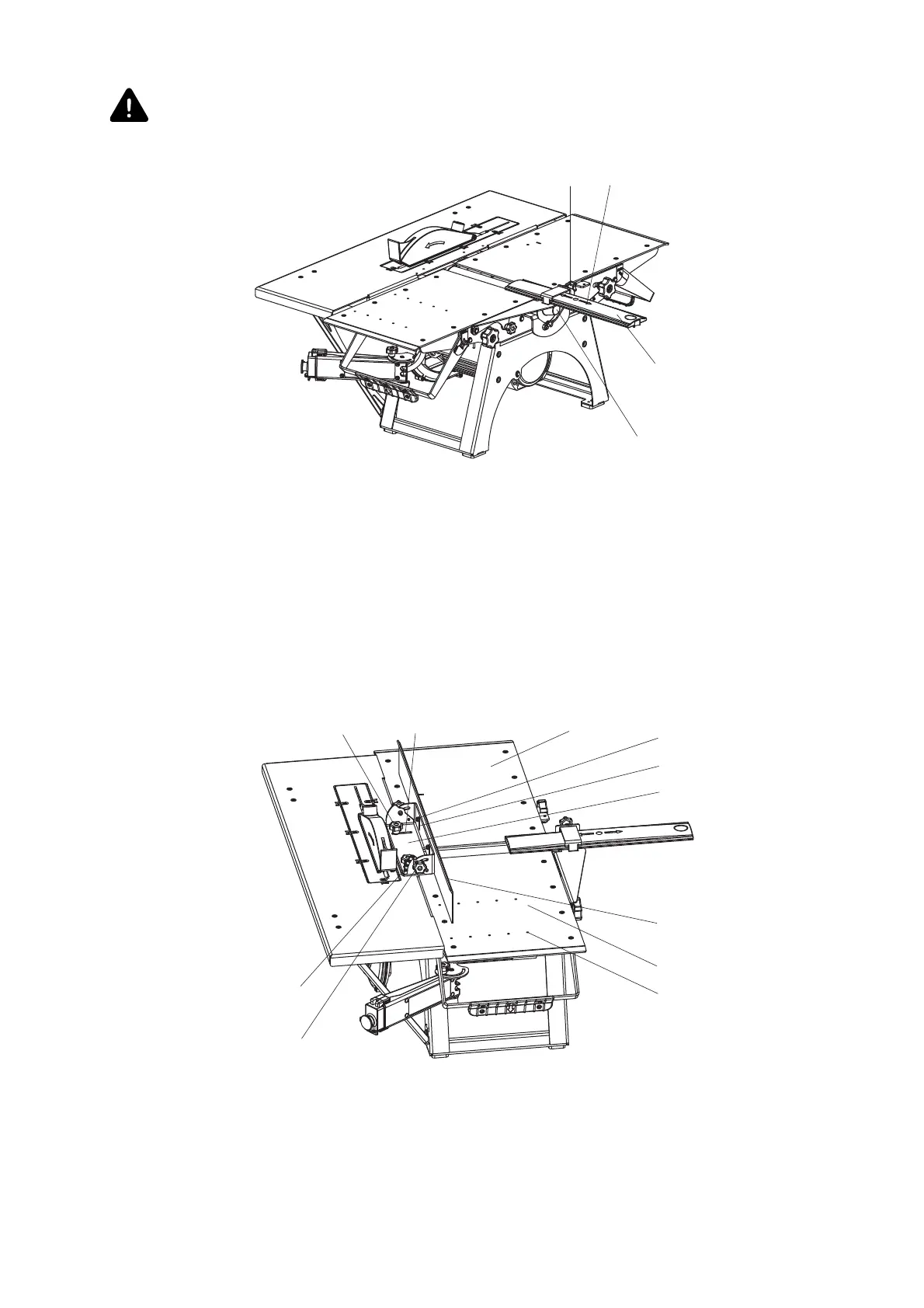

Fig. P
Using the fencing
7 – fencing; 7а – arrows; 10 – flywheel for clip fixation, 65 – knife’s end block fencing
11.1.4 Installing the ruler in the planning mode
The ruler 12 ready-fitted with the angular bump 11 is designed for positioning of the workpiece
relative to the cutter block. It provides the linear motion of the workpiece and performing the
planing operations at an angle to the edge of the workpiece.
The angular bump 11 is fixed to the cutting table with two flywheels 16. The ruler 12 can be
installed both perpendicularly to the table and angularly (Fig. Q).
Fig. Q
Using the ruler in the planning mode
2 – loading table, 2а – hole, 3 – outfeed table, 11а – slot; 11b – slot, 11с – screws with nuts; 12 – ruler, 13 – scale;
16 – flywheel; 17 – flywheel
7
65
10 7a
17
13
3
16 11b
11a
11
11c
2
12
2а
