13Bend-Tech Dragon
Material Coolant System Assembly
02
Material Coolant System Assembly Manual

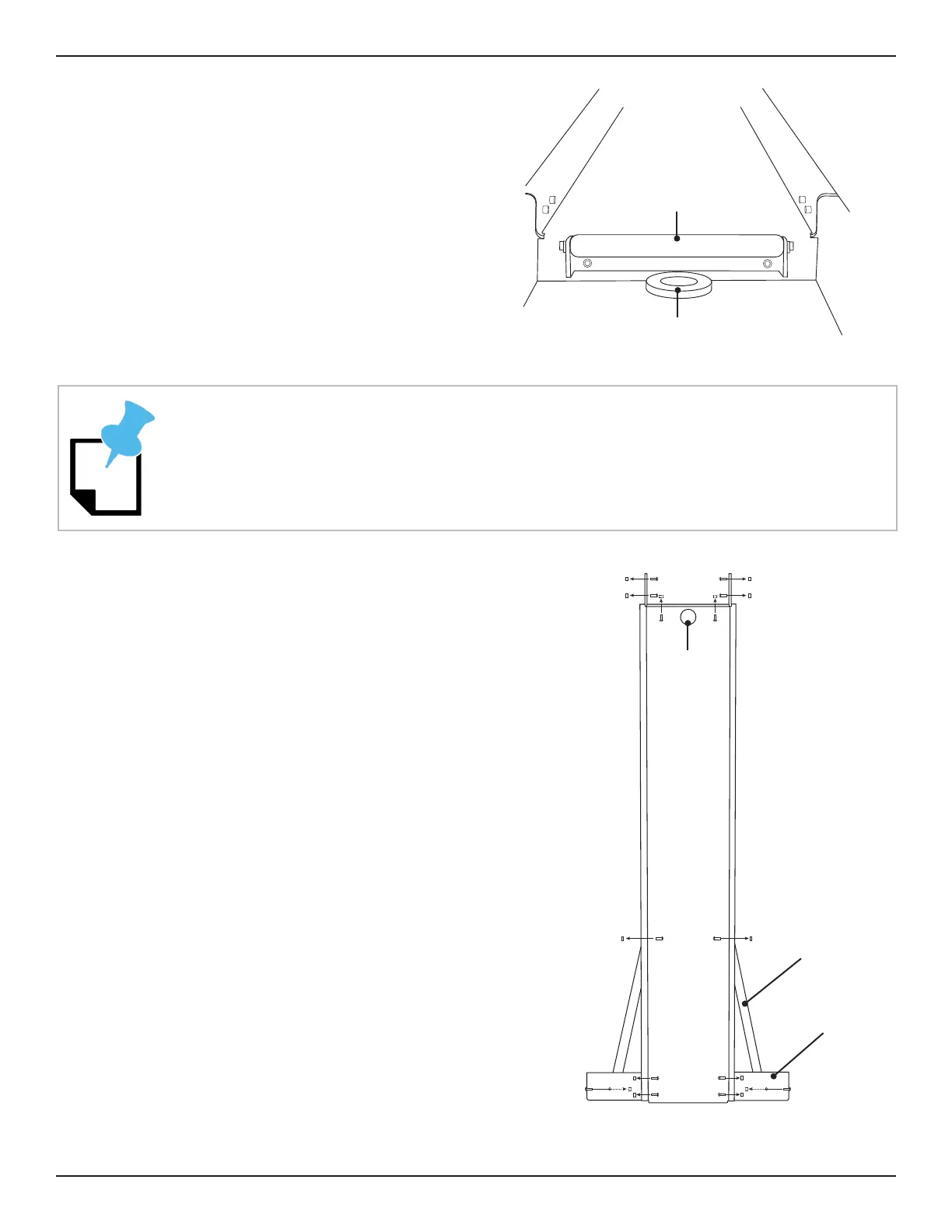

Locate one of the rollers from the parts
bag. Using two 1 in. button head screws,
nuts and washers, attach the roller on
the inside face of the coolant tray where
it connects to the parts catcher. Feed the
button head screw through the roller and
through the mounting holes in the Water
Tray and the parts catcher. Ensure the
roller is placed as far up as possible.
2.2.6 Water Tray System Assembly
Position the second coolant tray behind
second support leg to support the free end
of the second coolant tray.
mounting surface is on the outside of both
water trays. Align the four mounting holes
in the support leg with the holes on the
tabs on the second coolant tray.
Fasten the sides of the coolant trays and
support leg together using four 1 in. button
head screws, nuts and washers. Ensure
the heads of the screws are on the inside
of the water tray and the nuts and washers
are on the outside. Do not tighten.
Top View
Drain
Support Leg Brace
Support Leg
Tray or Parts
Catcher
Drain
Roller
Do not tighten any fasteners on the coolant tray assembly until all of the components
are connected.
