20 Bend-Tech Dragon
Material Coolant System Assembly
02
Material Coolant System Assembly Manual

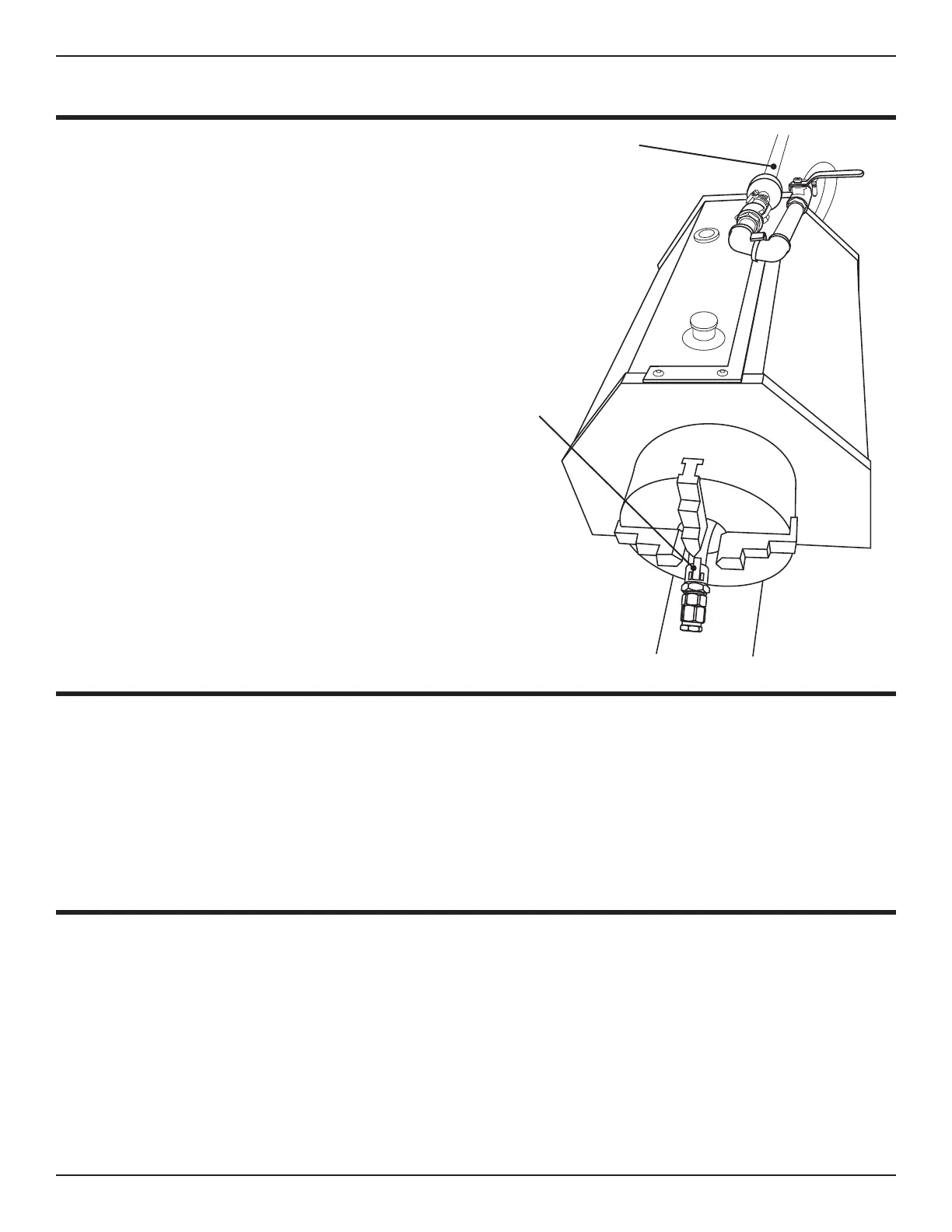

2.12 Connect the Hose
Pull the hose from the hose reel and hook the
ball valve assembly on the Hose Mount. Feed
the short section of hose through the back of the
trolley and through the chuck. The Plug Adapters
will be secured with the cam lock.
2.13 Leveling the Coolant Trays
to-side and front to back. Use a bubble level placed on the edges of the coolant trays to
wrench to turn the bottom nut on each leveling foot to adjust. Once level, tighten the top nut on
the leveling foot.
2.14 Sealing the Coolant Trays
Using the silicone sealant, place a bead of silicone around all gaps and seams in the coolant
before using the coolant system.
Feed short end
through the Chuck
Hose from Hose
Reel
To Next Page
