18 Bend-Tech Dragon
Material Coolant System Assembly
02
Material Coolant System Assembly Manual

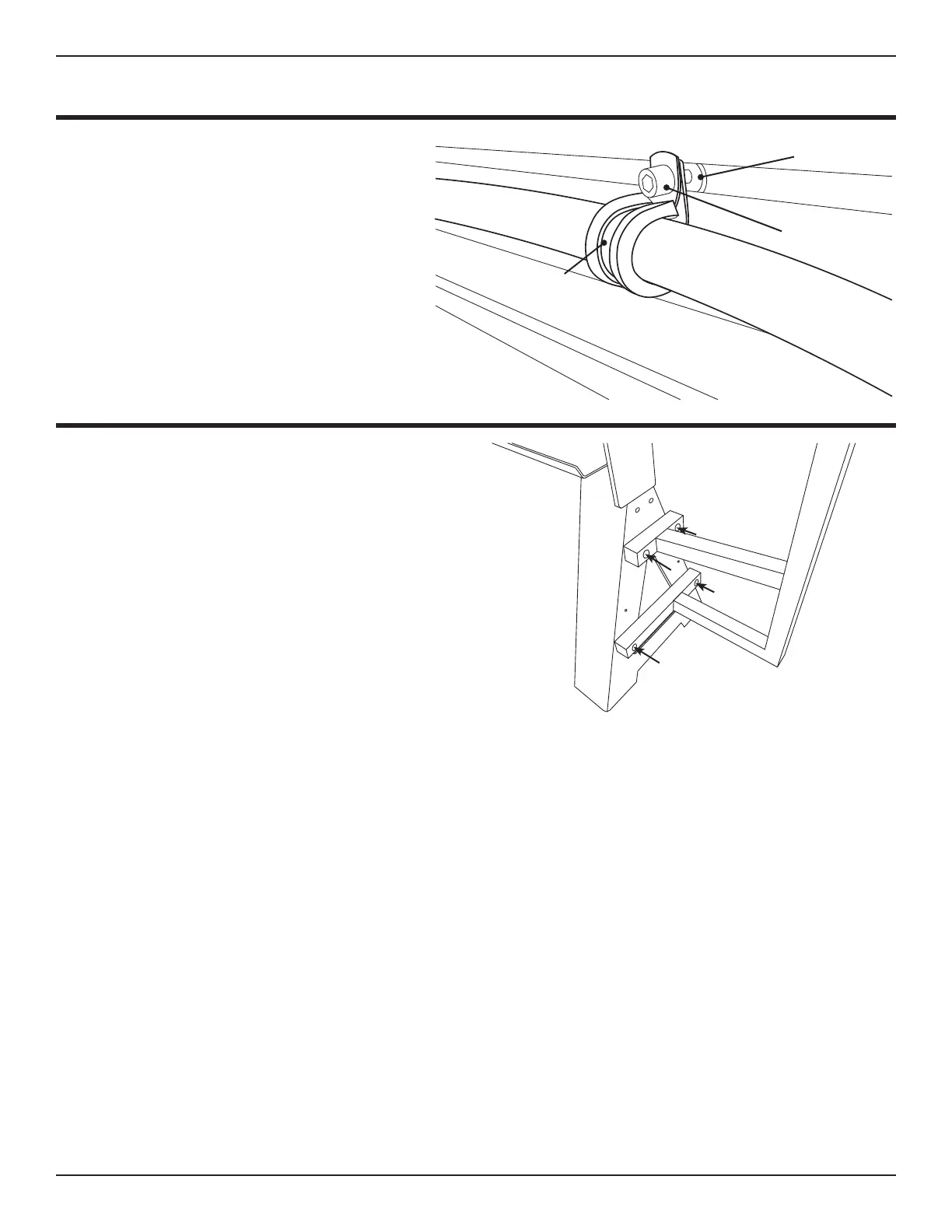

2.8 Attaching the Hose to the Rail Beam
Locate six T-nuts and six ½ in. hex
screws from the hardware bag,
along with six cushion clamps. Loop
the cushion clamps around the hose,
spacing evenly at intervals along the
beam. Attach the cushion clamps to
the beam using the T-nuts and hex
screws.
2.9 Hose Reel Mount
Attach the hose reel mount to the Tail
of the machine. The mount bolts to the
outside of the last leg of the machine
in. socket and ratchet.
Hex Screw
Hose
Cushion Clamp
T-Nut
To Next Page
